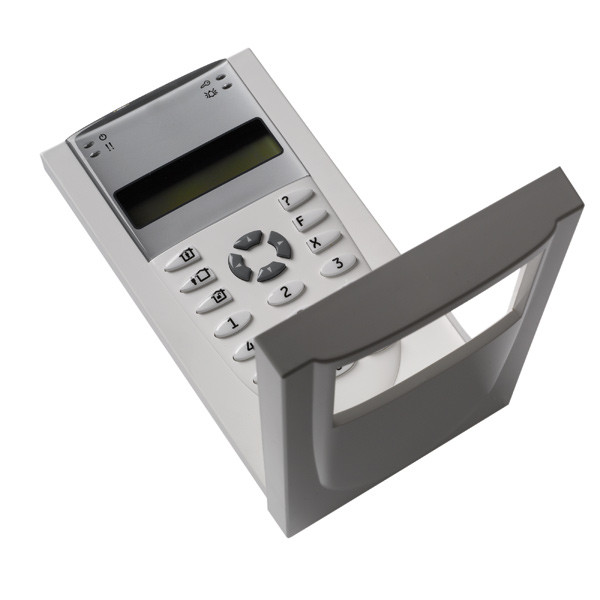

ATS1110A-N
LCD keypad 2 lines ATS Adv.
- Touchscreen : No
- Compatible with panel(s) : ATS Advanced (x000A / x500A)
- Integrated proximity reader : No
- LCD display : 2 x 16 characters
- Warranty : 2 Years
- Features
-
ATS1110A-N
Environmental
Working Temperature (°C) From 0 to 50 Max. Working Humidity [%] 95 Weight 0.296 Mounting Surface Colour White Tamper Lid and back contacts Weather Proof IP Rating 30 Dimensions (H x W x D) [mm] 165 x 92 x 25 Certifications
EN Certification EN50131 Grade 2 & 3 Specifications
Integrated proximity reader No Integrated buzzer Yes Panic button None Voltage supply [VDC] From 9 to 14 Current max [mA] 95 LED display 16 LEDs Touchscreen No Compatible with panel(s) ATS Advanced (x000A / x500A) Keypad Backlight Yes LCD display 2 x 16 characters Programmable buttons Yes Wired zones in keypad No Voice assistance No Wireless keypad No Warranty 2 Years Screen
Display type 2 lines of 16 characters - Download
-
