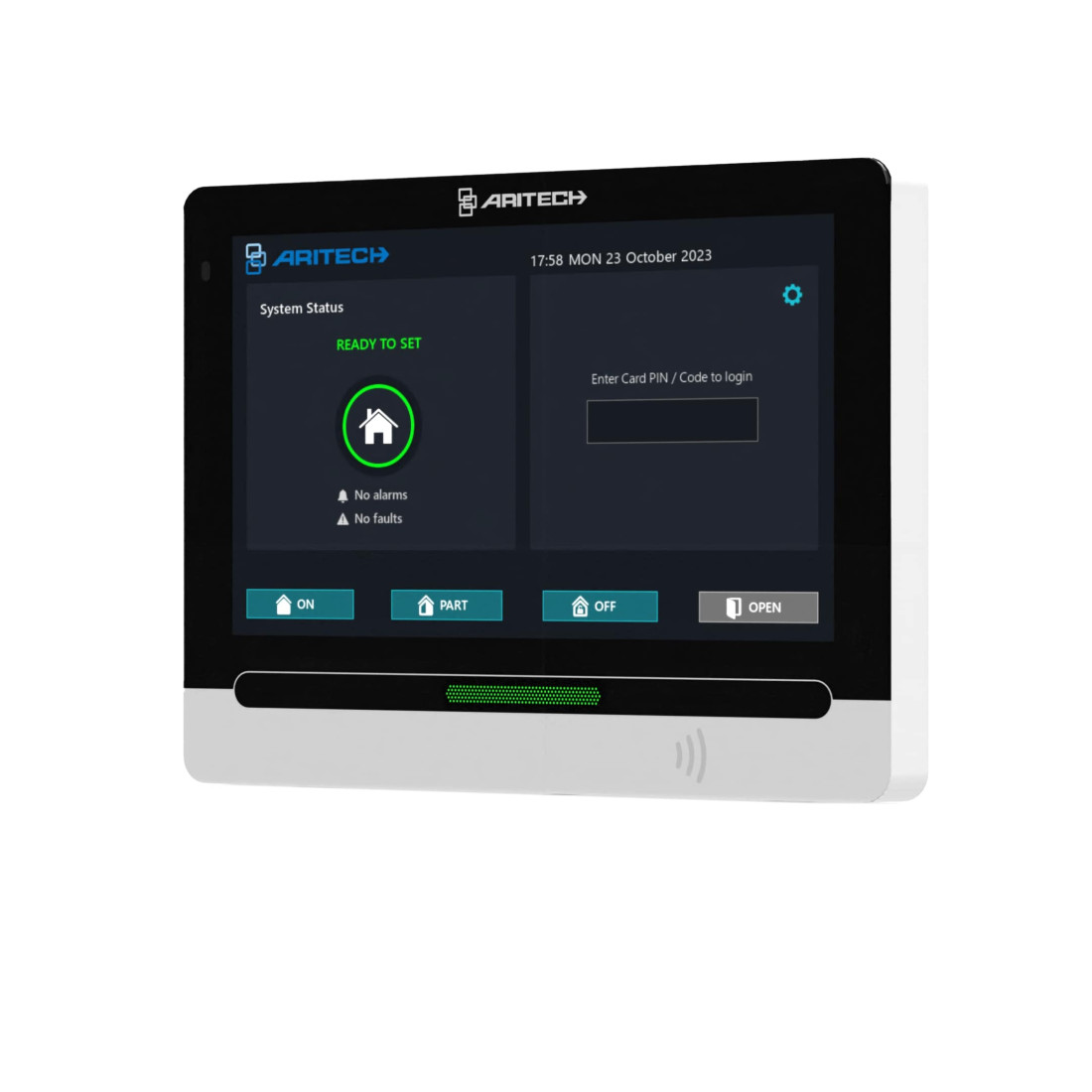

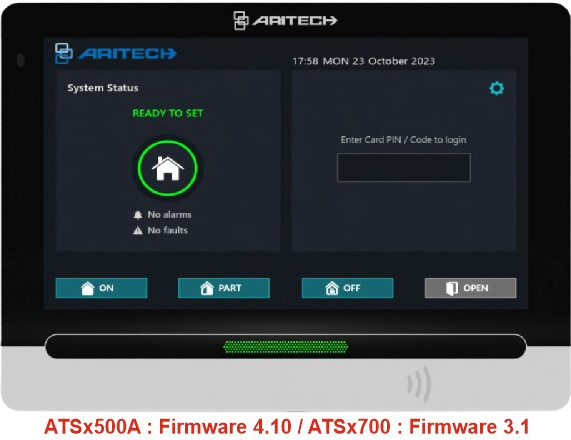

ATS1140
7" Touchscreen for ADVANCED and EVERON
- Touchscreen : Yes
- Compatible with panel(s) : ATS Advanced x500A, Everon x700
- Integrated proximity reader : Yes
- LCD display : Yes
- Warranty : 2 Years
- Features
-
ATS1140
Environmental
Working Temperature (°C) From 0 to 55 Max. Working Humidity [%] 95 Weight 0.46 Mounting Surface Colour White Tamper Lid and back contacts Weather Proof IP Rating 30 Dimensions (H x W x D) [mm] 127 x 179 x 20 Certifications
EN Certification EN 50131 Grade 3 Specifications
Integrated proximity reader Yes Integrated buzzer Yes Panic button None Voltage supply [VDC] From 12 to 13.5 Current max [mA] 375 LED display 1 LED Multicolor Touchscreen Yes Compatible with panel(s) ATS Advanced x500A, Everon x700 Keypad Backlight Yes LCD display Yes Programmable buttons Yes Wired zones in keypad No Voice assistance No Wireless keypad No Warranty 2 Years Screen
Screen size 7'' (17.78cm) - Download
-
ATS1140
PDFS
Programs
By clicking on the next link, you get access to our downloading page of all the softwares and drivers of our range and categories of products
Can't find what you're looking for ? Contact us !
- Support
-
ATS1140
Support Via Teamviewer
To enable us to help you remotely, don't hesitate to use our TEAMVIEWER software, which you can download here. This secure tool allows us temporary access to a machine when the software is activated. Under no circumstances will DEMA connect without your consent.
Download Teamviewer
Contact us
If you have any questions about this product, please use this form to contact the technical service directly, we will answer you as soon as possible.
- Accessories
