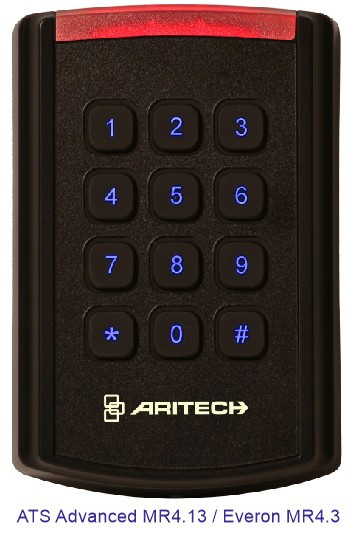

ATS1188

ATS reader Mifare DESFire EV1/EV2/EV3 BLE

ATS1188, ARITECH, Keypads and readers, Proximity readers, ATS ADVANCED, Intrusion, Access Control, Touchscreen : No, Compatible with panel(s) : ATS Advanced x500A, Everon x700, Integrated proximity reader : Yes, LCD display : None, Warranty : 2 Years, ATS1188, ARITECH, Keypads and readers, Proximity readers, ATS ADVANCED, Intrusion, Access Control, Touchscreen : No, Compatible with panel(s) : ATS Advanced x500A, Everon x700, Integrated proximity reader : Yes, LCD display : None, Warranty : 2 Years, ATS1188, ARITECH, Keypads and readers, Proximity readers, ATS ADVANCED, Intrusion, Access Control, Touchscreen : No, Compatible with panel(s) : ATS Advanced x500A, Everon x700, Integrated proximity reader : Yes, LCD display : None, Warranty : 2 Years,

  • Touchscreen : No
  • Compatible with panel(s) : ATS Advanced x500A, Everon x700
  • Integrated proximity reader : Yes
  • LCD display : None
  • Warranty : 2 Years

Features

ATS1188

Environmental

Working Temperature (°C) From -40 to 55
Max. Working Humidity [%] 95
Weight 0.275
Mounting Surface
Colour Dark Grey
Tamper Lid and back contacts
Weather Proof IP Rating 67
Dimensions (H x W x D) [mm] 140 x 44 x 20

Specifications

Integrated proximity reader Yes
Integrated buzzer Yes
Panic button None
Voltage supply [VDC] From 10.8 to 30
Current max [mA] 85
LED display 1 LED Tricolor
Compatible with panel(s) ATS Advanced x500A, Everon x700
Card technology BLE (Bluetooth Low Energy), Mifare Classic, Mifare Classic (7 Byte UID), Mifare DESfire EV1, Mifare DESfire EV2, Mifare DESfire EV3
Keypad Backlight Yes
LCD display None
Programmable buttons No
Wireless keypad No
Warranty 2 Years

Basic Informations

Clearance No
