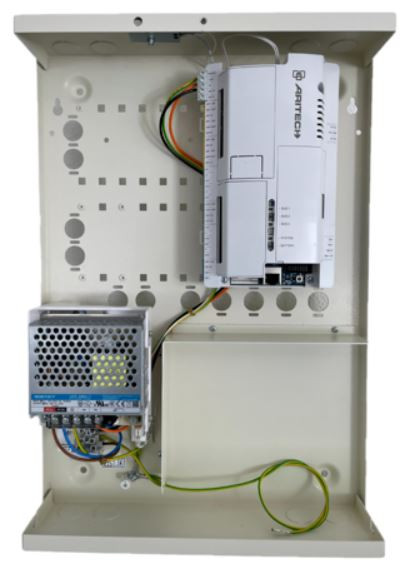

ATS3700-MM
Everon 3700, 16-256 zones, IP, EN class 3
- Max. areas : 16
- Max. number of zones (wired) : 256
- Supervision software compatibility : ATS8600 Advisor Management, Gamanet C4
- Users max. : 2000
- Language : Multilingual
- Warranty : 2 Years
- Features
-
ATS3700-MM
- External interface
- Environmental
- Specifications
- Certifications
- Radio technology
- Transmission
- Network
- Keypads / Readers
- Areas
- Zones
- Extensions
- Programmable Wired outputs
External Interface
Serial interface None USB Interface 1 x USB Front Pannel External interface API Environmental
Working Temperature (°C) From -10 to 55 Max. Working Humidity [%] 95 Weather Proof IP Rating 30 Material Steel plate Tamper Lid contact Closure For threading Dimensions (H x W x D) [mm] 445 x 315 x 85 Specifications
Power supply 230VAC Users max. 2000 Language Multilingual Battery capacity [Ah] 18 Standard doors on control panel 8 Intelligent doors on 4-door controllers 48 Max. number of PIN codes 2000 Max. number of cards 2000 Supervision software compatibility ATS8600 Advisor Management, Gamanet C4 Programming software ATS8500 Downloader DE, FR, IT, EN, Integrated Web server Calendars / Programs Yes Macros and/or advanced functions Yes Warranty 2 Years Certifications
EN Certification EN 50131 Grade 3 VdS certified No Radio Technology
Wireless type One-way Wireless frequency [MHz] 868 Wireless reception External on ATS123x receivers Transmission
Transmission protocol Contact ID, Iris (with TDA74xx), OH, SIA I, SIA III, SIA III Extended, VdS 2465 Compatible IP transmitters TDA74xxdirect integration PSTN Analogic transmitter None Network
Mobile network ATS73x0 communicator (not included) IP Ethernet RJ45 integrated on mainboard Keypads / Readers
Max. number of readers (panel) 16 Max. number of readers (system total) 16 Max. number of readers (on 4-door controllers) 48 Max. number of keypads (wired) 16 Max. number of keypads (wireless) 0 Max. number of keypads (touchscreen) 16 Keypad included No Areas
Max. areas 16 Auto Arm/Disarm possible Yes Number of partset per area 2 Zones
Number of zones (wired) From 16 to 256 Number of wireless zones From 16 to 256 Number of zones on main-board 16 Zones types Double resistor, Normally closed, Normally open, Single resistor Zone resistors 10k, 1k, 1k5, 2k, 2k2, 3k3, 3k74, 4k7, 4k7 + 2k2, 5k6, 6k8, 8k2 Extensions
Zone expanders (on system bus) Max. 15 DGPs (ATS1210, ATS1220, ATS1201, ATS1203, ATS1204, ...) Internal zone expanders Max. 1x ATS608, Max. 3x ATS1202 Internal output expanders ATS1810/ATS1811/ATS1820, Max. 1x ATS624 or 1x ATS626 Output expanders (on system bus) ATS1811 or ATS1810 on DGPs Access control expanders (on system bus) Max. 12x ATS125x DGPs Programmable Wired Outputs
Max. outputs (whole system) 128 Mainboard outputs 3x Open Collector and 2x Relay - Download
-
