BEW3-APB

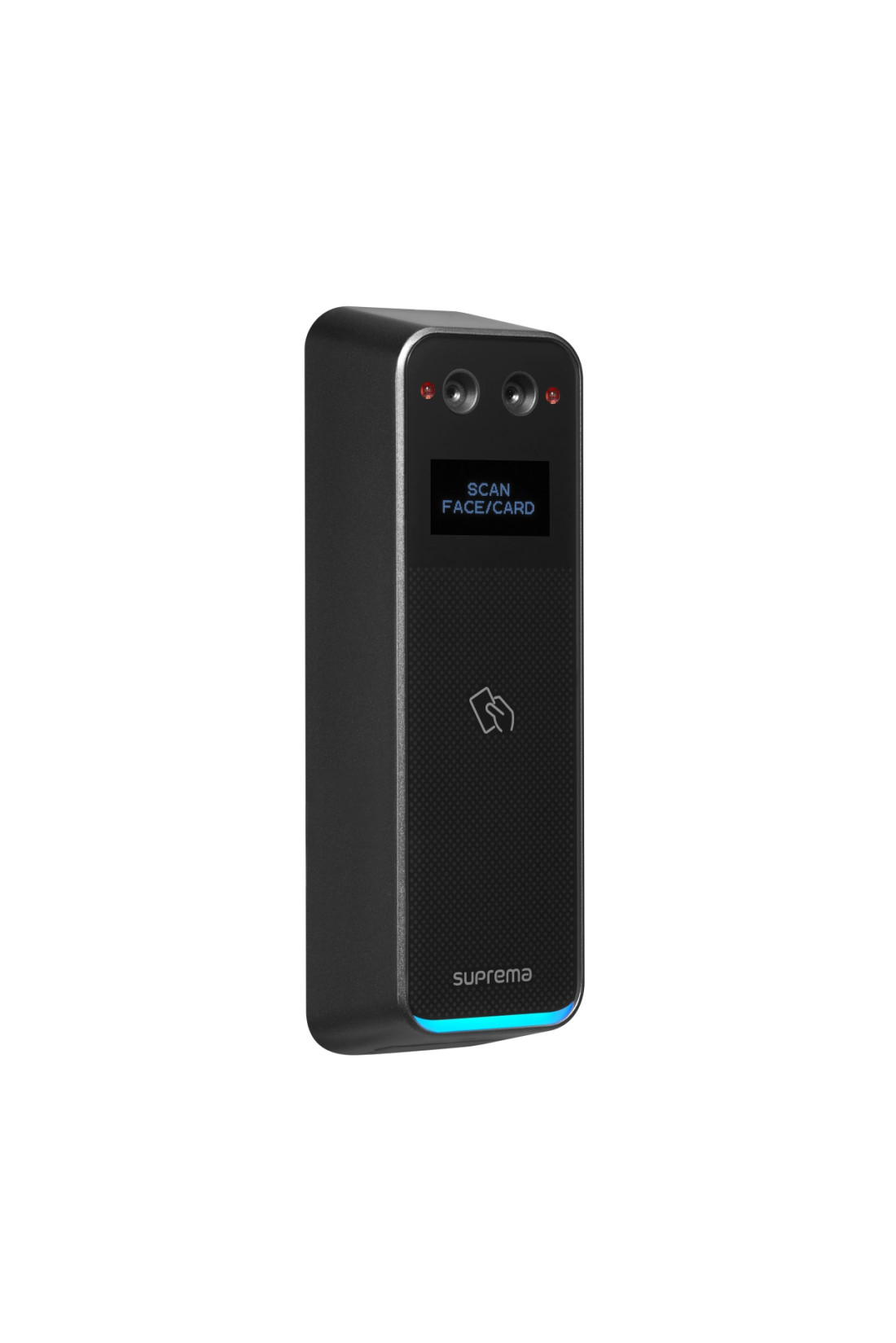

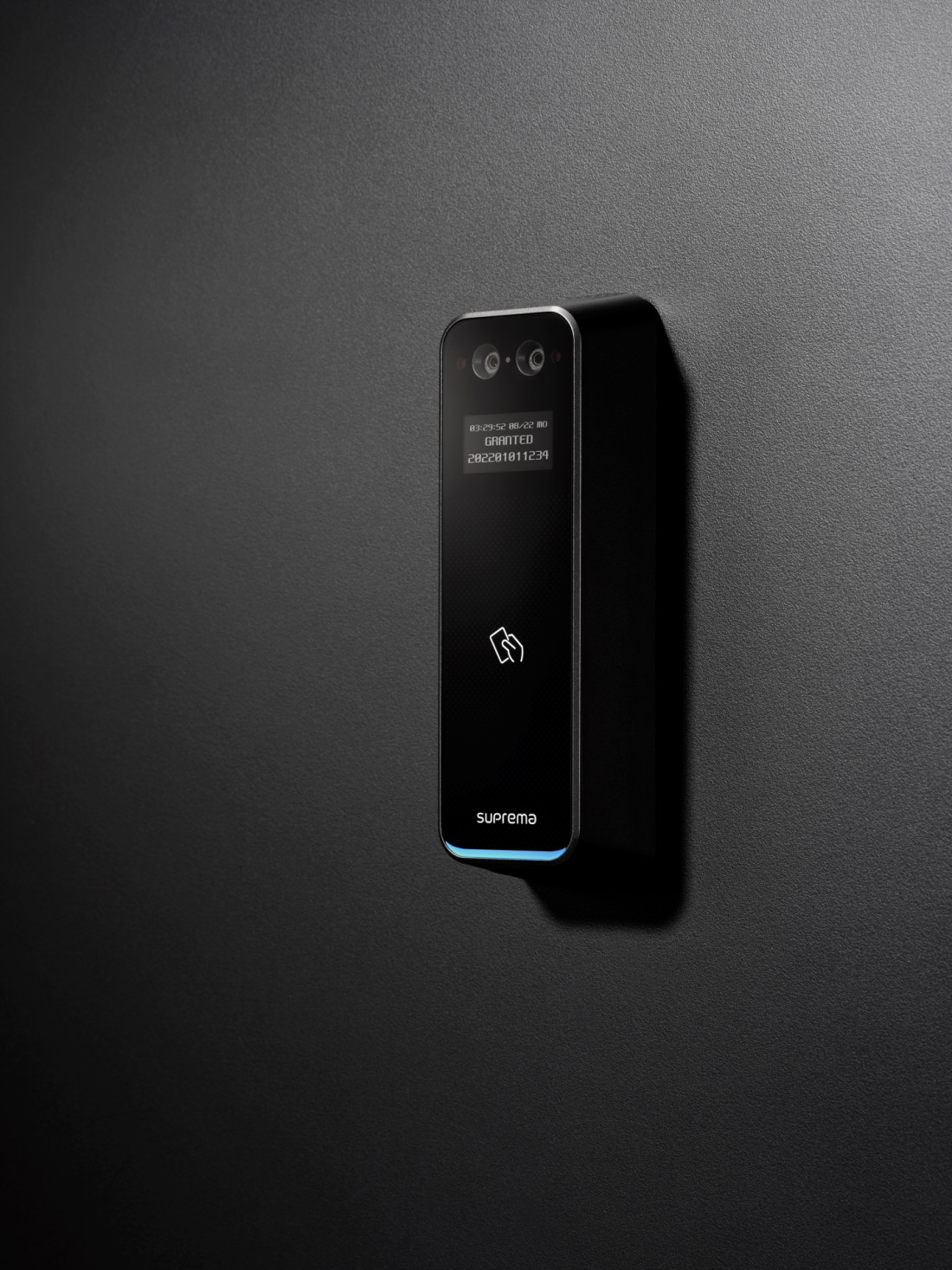

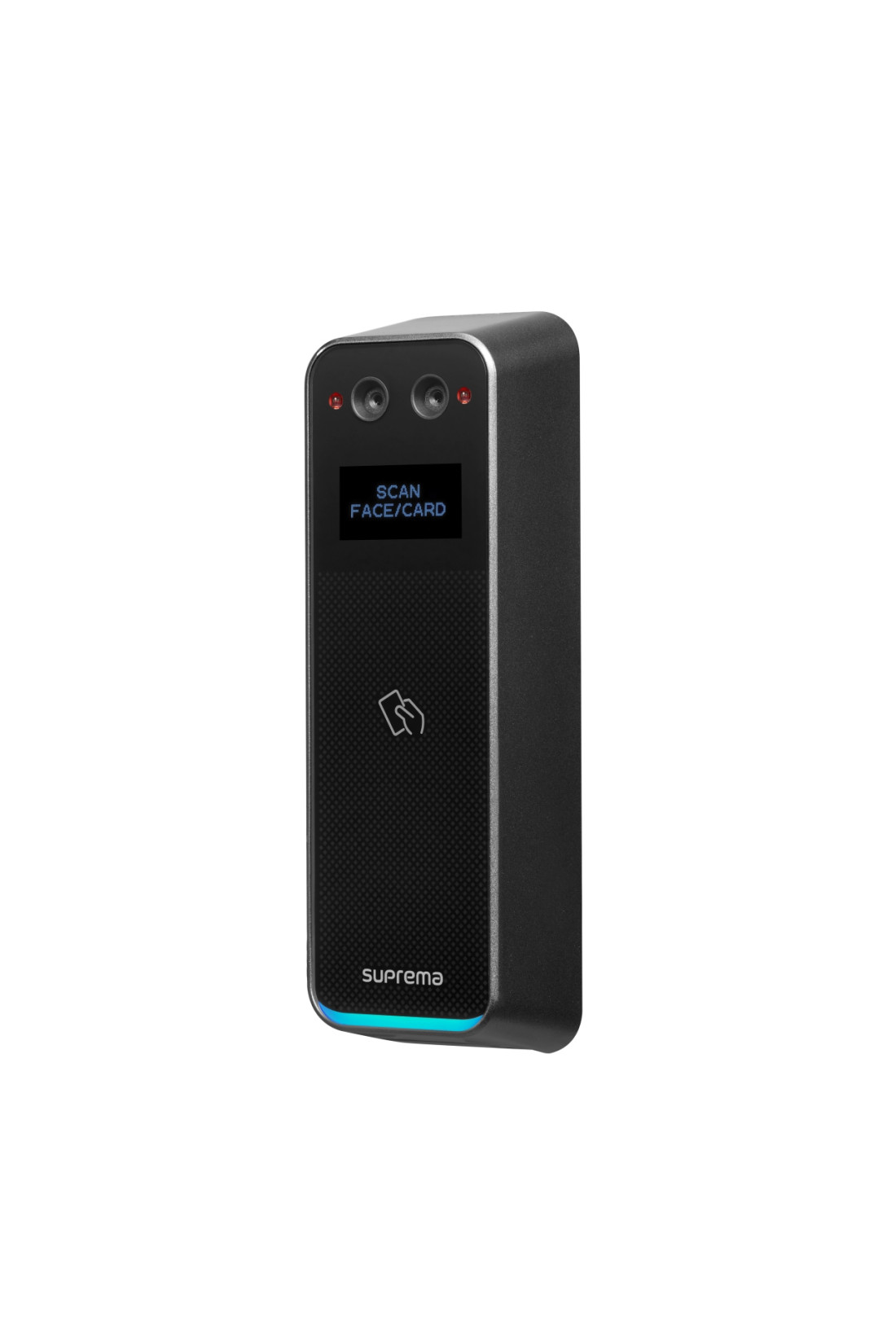

BioEntry W3 Face, AI, Multi RFID, IP67, IK08, PoE

BEW3-APB, SUPREMA, Biometric readers, Access Control, Biometric identification : Face recognition, Wiegand interface : 1x In + 1x Out, Power supply : 12VDC, 24VDC, POE, BioStar software compatibility : From BioStar 2.x, Max users [1:1] : 100000, IP Ethernet : RJ45 integrated on mainboard, Warranty : 2 Years, Manufacturer ref. : BEW3-APB, BEW3-APB, SUPREMA, Biometric readers, Access Control, Biometric identification : Face recognition, Wiegand interface : 1x In + 1x Out, Power supply : 12VDC, 24VDC, POE, BioStar software compatibility : From BioStar 2.x, Max users [1:1] : 100000, IP Ethernet : RJ45 integrated on mainboard, Warranty : 2 Years, Manufacturer ref. : BEW3-APB, BEW3-APB, SUPREMA, Biometric readers, Access Control, Biometric identification : Face recognition, Wiegand interface : 1x In + 1x Out, Power supply : 12VDC, 24VDC, POE, BioStar software compatibility : From BioStar 2.x, Max users [1:1] : 100000, IP Ethernet : RJ45 integrated on mainboard, Warranty : 2 Years, Manufacturer ref. : BEW3-APB, BEW3-APB, SUPREMA, Biometric readers, Access Control, Biometric identification : Face recognition, Wiegand interface : 1x In + 1x Out, Power supply : 12VDC, 24VDC, POE, BioStar software compatibility : From BioStar 2.x, Max users [1:1] : 100000, IP Ethernet : RJ45 integrated on mainboard, Warranty : 2 Years, Manufacturer ref. : BEW3-APB, BEW3-APB, SUPREMA, Biometric readers, Access Control, Biometric identification : Face recognition, Wiegand interface : 1x In + 1x Out, Power supply : 12VDC, 24VDC, POE, BioStar software compatibility : From BioStar 2.x, Max users [1:1] : 100000, IP Ethernet : RJ45 integrated on mainboard, Warranty : 2 Years, Manufacturer ref. : BEW3-APB, BEW3-APB, SUPREMA, Biometric readers, Access Control, Biometric identification : Face recognition, Wiegand interface : 1x In + 1x Out, Power supply : 12VDC, 24VDC, POE, BioStar software compatibility : From BioStar 2.x, Max users [1:1] : 100000, IP Ethernet : RJ45 integrated on mainboard, Warranty : 2 Years, Manufacturer ref. : BEW3-APB,

  • Biometric identification : Face recognition
  • Wiegand interface : 1x In + 1x Out
  • Power supply : 12VDC, 24VDC, POE
  • BioStar software compatibility : From BioStar 2.x
  • Max users [1:1] : 100000
  • IP Ethernet : RJ45 integrated on mainboard
  • Warranty : 2 Years
  • Manufacturer ref. : BEW3-APB

Features

BEW3-APB

External Interface

Serial interface RS485
USB Interface USB 2.0
Wiegand interface 1x In + 1x Out

Environmental

Working Temperature (°C) From -20 to 50
Weight 0.291

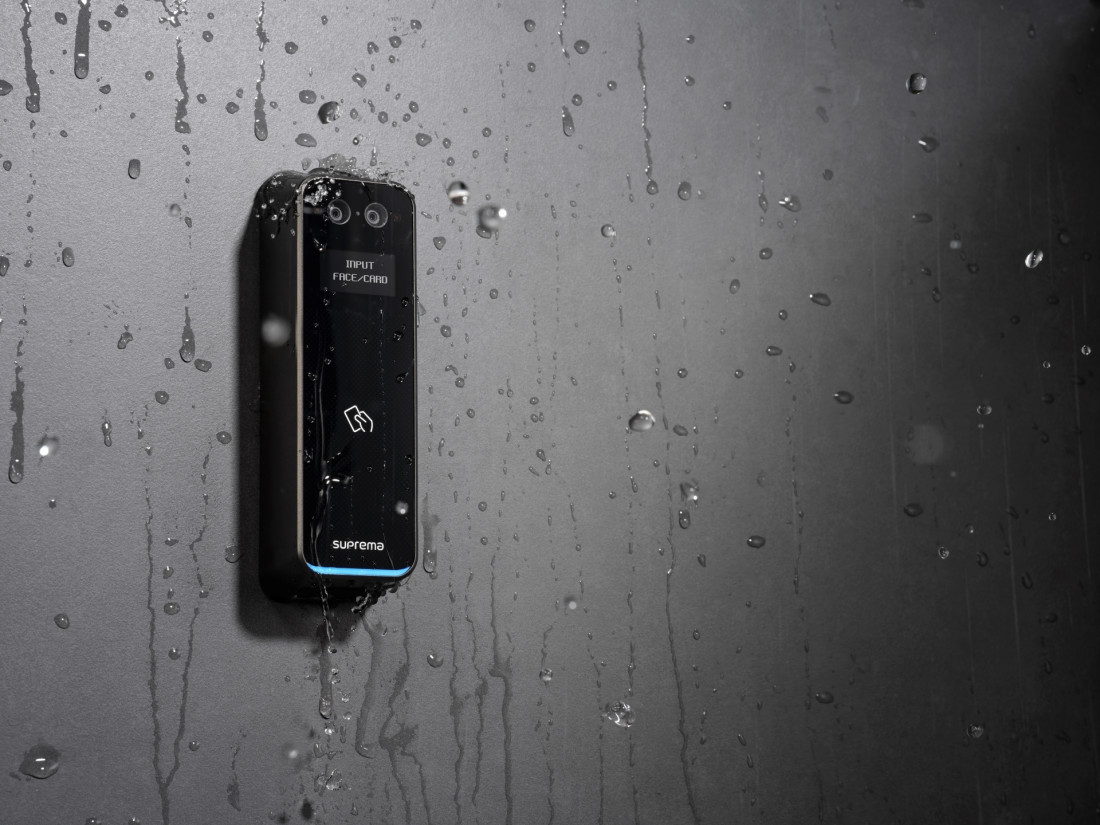

Weather Proof IP Rating 67
Tamper Lid contact
Dimensions (H x W x D) [mm] 160 x 50 x 34.15

Specifications

Power supply 12VDC, 24VDC, POE
Current max [mA] 1000
LED display 1 LED Multicolor
Touchscreen No
LCD display 1.3” PMOLED
Sound 16 Bit
QR-Code reader No
Warranty 2 Years
Intercom function No
RFID technology versions BLE, EM 125KHz, FeliCa 13.56 MHz, HID iCLASS SE, HID iCLASS SR, HID iCLASS Seos, MIFARE Classic, MIFARE Desfire (CSN), MIFARE Desfire EV1, MIFARE Desfire EV2, MIFARE Desfire EV3, MIFARE Plus, NFC (CSN)
RFID technologies BLE, EM, FeliCa, HID, Mifare, NFC
RFID encryption Programmable

Programmable Wired Outputs

Relay outputs 1

Network

IP Ethernet RJ45 integrated on mainboard

Programmable Wired Inputs

Number of wired inputs 3

System

Memory RAM 2GB
Memory Flash 16GB
CPU 1.5GHz Quad Core

Biometrics

Biometric identification Face recognition

Capacity

Max users [1:1] 100000
Max users [1:N] 30000
Max. text log events 1000000
Max. image log events 10000

Features

BioStar software compatibility From BioStar 2.x

Wifi

WiFi none

Basic Informations

Manufacturer ref. BEW3-APB
