BS3-APWB

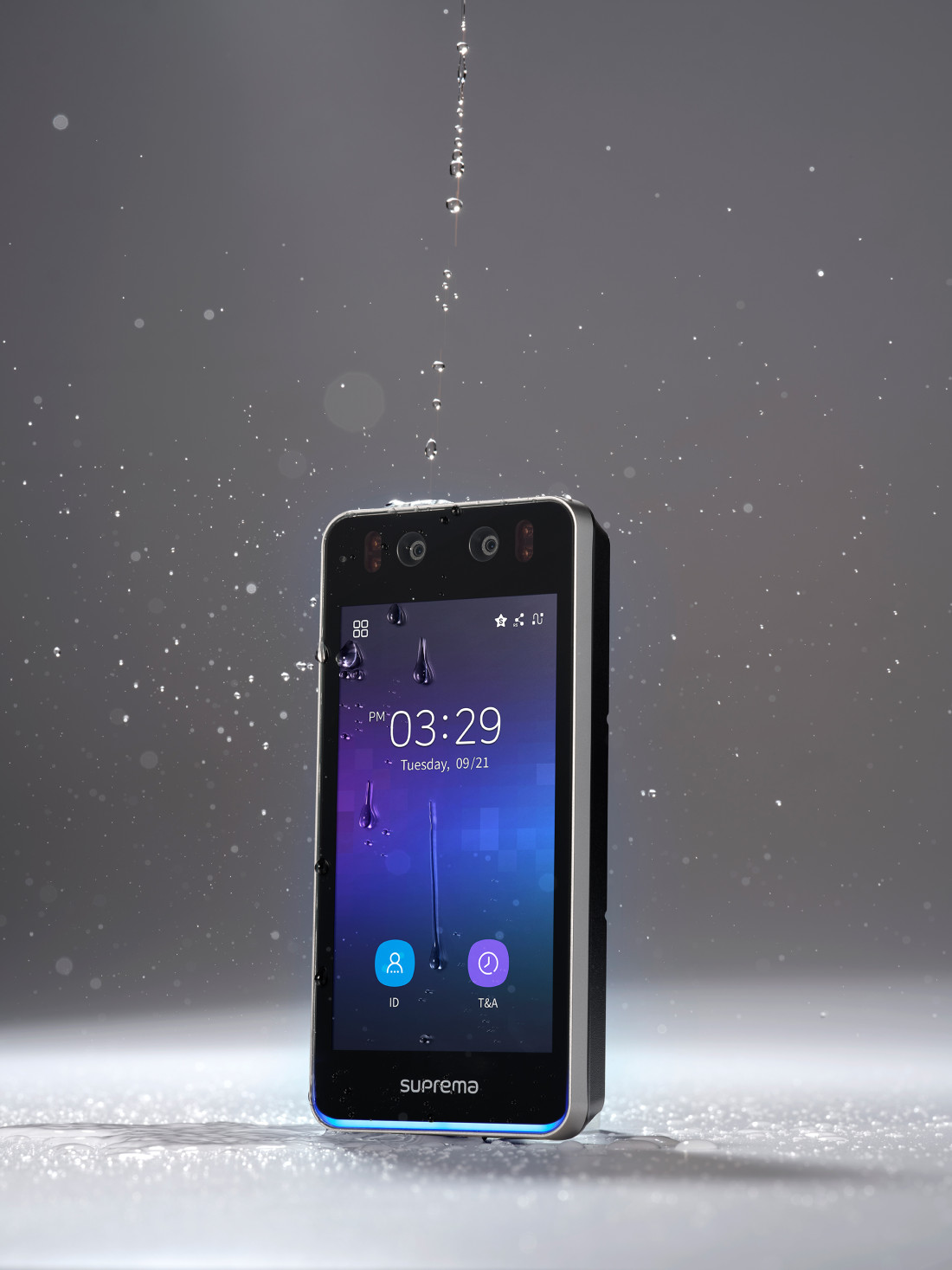

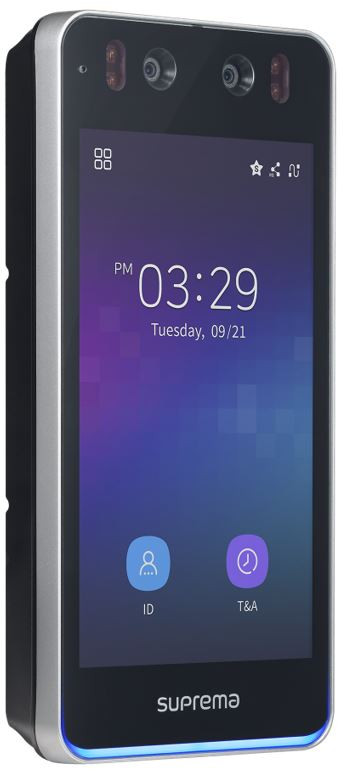

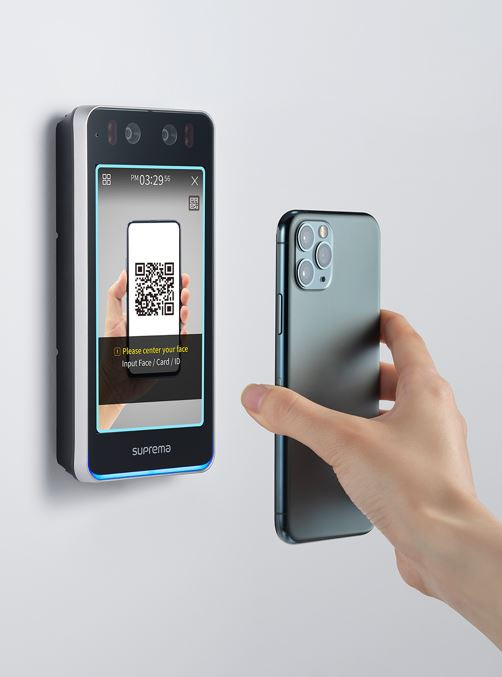

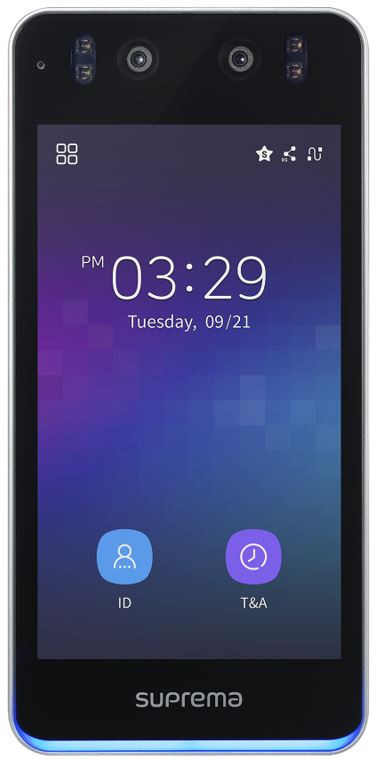

BioStation 3 Face QR Mult RFID VoIP PoE

BS3-APWB, SUPREMA, Biometric readers, Access Control, Biometric identification : Face recognition, Wiegand interface : 1x In + 1x Out, Power supply : 12VDC, 24VDC, POE, BioStar software compatibility : From BioStar 2.x, Max users [1:1] : 100000, IP Ethernet : RJ45 integrated on mainboard, Warranty : 2 Years, Manufacturer ref. : BS3-APWB, BS3-APWB, SUPREMA, Biometric readers, Access Control, Biometric identification : Face recognition, Wiegand interface : 1x In + 1x Out, Power supply : 12VDC, 24VDC, POE, BioStar software compatibility : From BioStar 2.x, Max users [1:1] : 100000, IP Ethernet : RJ45 integrated on mainboard, Warranty : 2 Years, Manufacturer ref. : BS3-APWB, BS3-APWB, SUPREMA, Biometric readers, Access Control, Biometric identification : Face recognition, Wiegand interface : 1x In + 1x Out, Power supply : 12VDC, 24VDC, POE, BioStar software compatibility : From BioStar 2.x, Max users [1:1] : 100000, IP Ethernet : RJ45 integrated on mainboard, Warranty : 2 Years, Manufacturer ref. : BS3-APWB, BS3-APWB, SUPREMA, Biometric readers, Access Control, Biometric identification : Face recognition, Wiegand interface : 1x In + 1x Out, Power supply : 12VDC, 24VDC, POE, BioStar software compatibility : From BioStar 2.x, Max users [1:1] : 100000, IP Ethernet : RJ45 integrated on mainboard, Warranty : 2 Years, Manufacturer ref. : BS3-APWB, BS3-APWB, SUPREMA, Biometric readers, Access Control, Biometric identification : Face recognition, Wiegand interface : 1x In + 1x Out, Power supply : 12VDC, 24VDC, POE, BioStar software compatibility : From BioStar 2.x, Max users [1:1] : 100000, IP Ethernet : RJ45 integrated on mainboard, Warranty : 2 Years, Manufacturer ref. : BS3-APWB, BS3-APWB, SUPREMA, Biometric readers, Access Control, Biometric identification : Face recognition, Wiegand interface : 1x In + 1x Out, Power supply : 12VDC, 24VDC, POE, BioStar software compatibility : From BioStar 2.x, Max users [1:1] : 100000, IP Ethernet : RJ45 integrated on mainboard, Warranty : 2 Years, Manufacturer ref. : BS3-APWB,

  • Biometric identification : Face recognition
  • Wiegand interface : 1x In + 1x Out
  • Power supply : 12VDC, 24VDC, POE
  • BioStar software compatibility : From BioStar 2.x
  • Max users [1:1] : 100000
  • IP Ethernet : RJ45 integrated on mainboard
  • Warranty : 2 Years
  • Manufacturer ref. : BS3-APWB

Features

BS3-APWB

External Interface

Serial interface RS485, TTL
USB Interface USB 2.0
Wiegand interface 1x In + 1x Out

Environmental

Working Temperature (°C) From -20 to 50
Weight 0.47
Weather Proof IP Rating 65
Tamper Lid contact
Intercom technology VoIP and RSTP
Dimensions (H x W x D) [mm] 171 x 82.5 x 23.4

Specifications

Power supply 12VDC, 24VDC, POE
Current max [mA] 2500
LED display none
Touchscreen Yes
LCD display 5.5" IPS Color LCD
Sound 16 Bit
QR-Code reader Yes
QR-Code type Barcode, QR-Code
Warranty 2 Years
Intercom function Yes
RFID technology versions BLE, EM 125KHz, FeliCa 13.56 MHz, HID 125 KHz, HID iCLASS SE, HID iCLASS SR, HID iCLASS Seos, MIFARE Classic, MIFARE Desfire EV1, MIFARE Desfire EV2, MIFARE Desfire EV3, MIFARE Plus, NFC (CSN)
RFID technologies BLE, EM, FeliCa, HID, Mifare, NFC
RFID encryption Programmable

Programmable Wired Outputs

Relay outputs 1

Network

IP Ethernet RJ45 integrated on mainboard

Programmable Wired Inputs

Number of wired inputs 3

System

Memory RAM 4GB
Memory Flash 32GB
CPU 1.5GHz Quad Core

Biometrics

Biometric identification Face recognition

Capacity

Max users [1:1] 100000
Max users [1:N] 50000
Max. text log events 5000000
Max. image log events 50000

Features

BioStar software compatibility From BioStar 2.x

Wifi

WiFi Yes

Basic Informations

Manufacturer ref. BS3-APWB
