BS3-DB

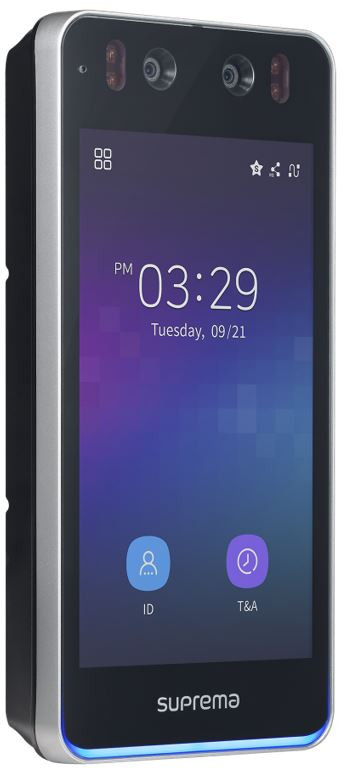

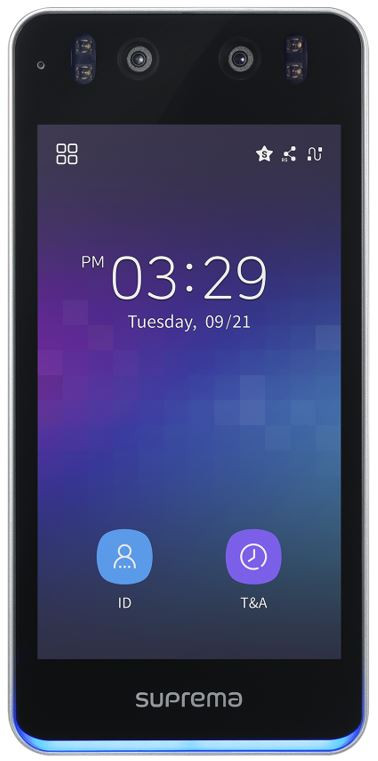

BioStation 3 Face QR Dual RFID VoIP

BS3-DB, SUPREMA, Biometric readers, Access Control, Biometric identification : Face recognition, Wiegand interface : 1x In + 1x Out, Power supply : 12VDC, 24VDC, BioStar software compatibility : From BioStar 2.x, Max users [1:1] : 100000, IP Ethernet : RJ45 integrated on mainboard, Warranty : 2 Years, Manufacturer ref. : BS3-DB, BS3-DB, SUPREMA, Biometric readers, Access Control, Biometric identification : Face recognition, Wiegand interface : 1x In + 1x Out, Power supply : 12VDC, 24VDC, BioStar software compatibility : From BioStar 2.x, Max users [1:1] : 100000, IP Ethernet : RJ45 integrated on mainboard, Warranty : 2 Years, Manufacturer ref. : BS3-DB, BS3-DB, SUPREMA, Biometric readers, Access Control, Biometric identification : Face recognition, Wiegand interface : 1x In + 1x Out, Power supply : 12VDC, 24VDC, BioStar software compatibility : From BioStar 2.x, Max users [1:1] : 100000, IP Ethernet : RJ45 integrated on mainboard, Warranty : 2 Years, Manufacturer ref. : BS3-DB, BS3-DB, SUPREMA, Biometric readers, Access Control, Biometric identification : Face recognition, Wiegand interface : 1x In + 1x Out, Power supply : 12VDC, 24VDC, BioStar software compatibility : From BioStar 2.x, Max users [1:1] : 100000, IP Ethernet : RJ45 integrated on mainboard, Warranty : 2 Years, Manufacturer ref. : BS3-DB, BS3-DB, SUPREMA, Biometric readers, Access Control, Biometric identification : Face recognition, Wiegand interface : 1x In + 1x Out, Power supply : 12VDC, 24VDC, BioStar software compatibility : From BioStar 2.x, Max users [1:1] : 100000, IP Ethernet : RJ45 integrated on mainboard, Warranty : 2 Years, Manufacturer ref. : BS3-DB, BS3-DB, SUPREMA, Biometric readers, Access Control, Biometric identification : Face recognition, Wiegand interface : 1x In + 1x Out, Power supply : 12VDC, 24VDC, BioStar software compatibility : From BioStar 2.x, Max users [1:1] : 100000, IP Ethernet : RJ45 integrated on mainboard, Warranty : 2 Years, Manufacturer ref. : BS3-DB,

  • Biometric identification : Face recognition
  • Wiegand interface : 1x In + 1x Out
  • Power supply : 12VDC, 24VDC
  • BioStar software compatibility : From BioStar 2.x
  • Max users [1:1] : 100000
  • IP Ethernet : RJ45 integrated on mainboard
  • Warranty : 2 Years
  • Manufacturer ref. : BS3-DB

Features

BS3-DB

External Interface

Serial interface RS485, TTL
USB Interface USB 2.0
Wiegand interface 1x In + 1x Out

Environmental

Working Temperature (°C) From -20 to 50
Weight 0.46

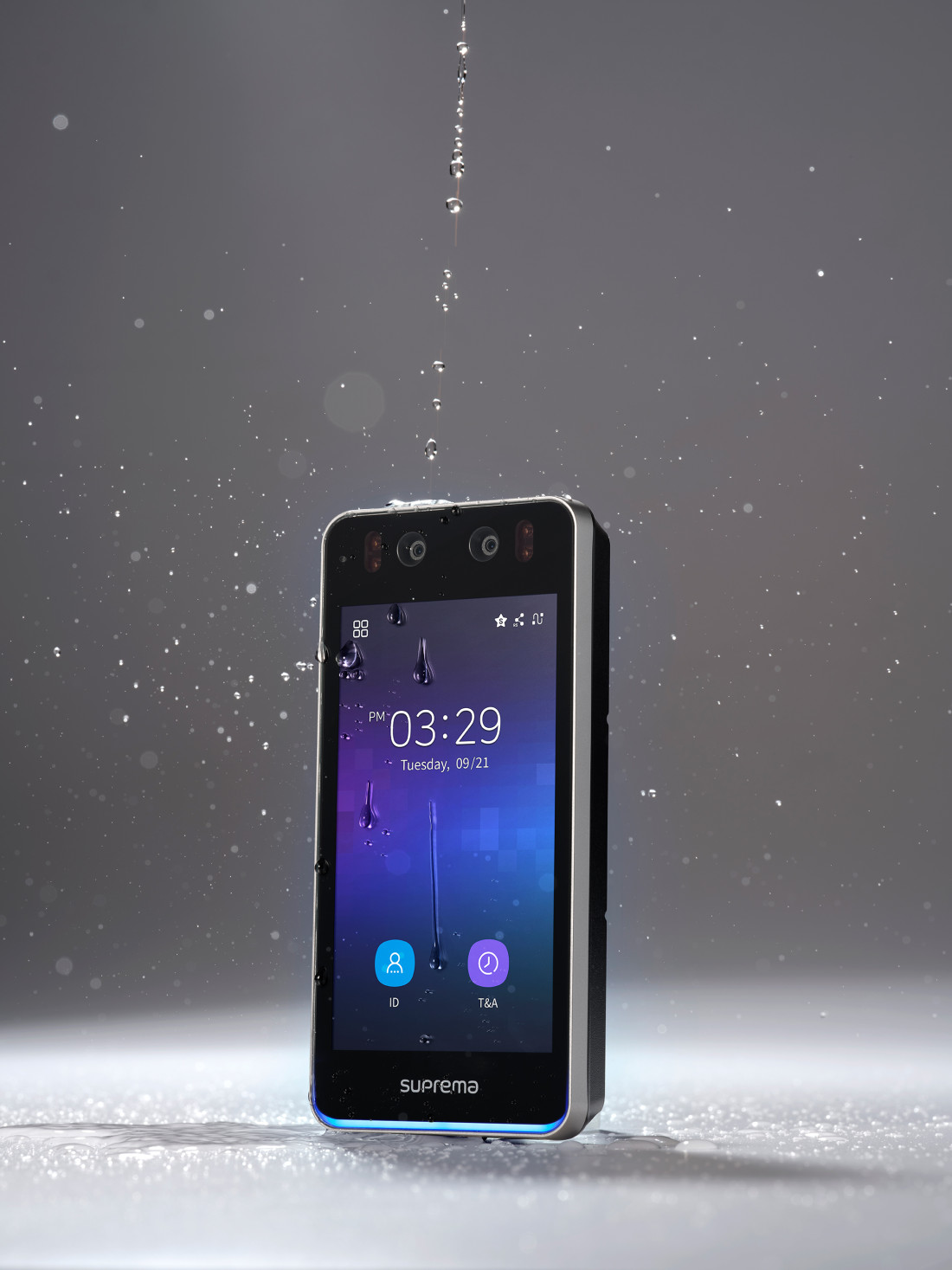

Weather Proof IP Rating 65
Tamper Lid contact
Intercom technology VoIP and RSTP
Dimensions (H x W x D) [mm] 171 x 82.5 x 23.4

Specifications

Power supply 12VDC, 24VDC
Current max [mA] 2500
LED display none
Touchscreen Yes
LCD display 5.5" IPS Color LCD
Sound 16 Bit
Card technology BLE (Bluetooth Low Energy), EM 125kHz, Felica, MiFare 1K/4K 13.56MHz, Mifare DESfire EV1, Mifare DESfire EV2, Mifare Plus, NFC

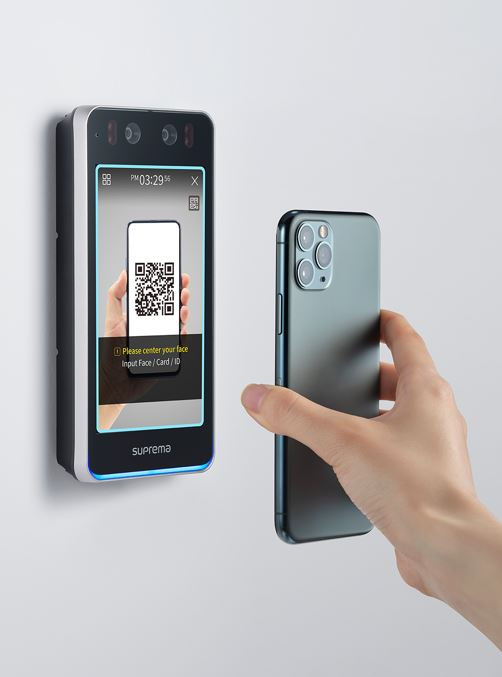

QR-Code reader Yes
QR-Code type Barcode, QR-Code
Warranty 2 Years
Intercom function Yes
RFID technology versions BLE, EM 125KHz, FeliCa 13.56 MHz, MIFARE Classic, MIFARE Desfire (CSN), MIFARE Desfire EV1, MIFARE Desfire EV2, MIFARE Desfire EV3, MIFARE Plus, NFC (CSN)
RFID technologies BLE, EM, FeliCa, Mifare, NFC
RFID encryption Programmable

Programmable Wired Outputs

Relay outputs 1

Network

IP Ethernet RJ45 integrated on mainboard

Programmable Wired Inputs

Number of wired inputs 3

System

Memory RAM 4GB
Memory Flash 32GB
CPU 1.5GHz Quad Core

Biometrics

Biometric identification Face recognition

Capacity

Max users [1:1] 100000
Max users [1:N] 50000
Max. text log events 5000000
Max. image log events 50000

Features

BioStar software compatibility From BioStar 2.x

Wifi

WiFi none

Basic Informations

Manufacturer ref. BS3-DB
