DC107

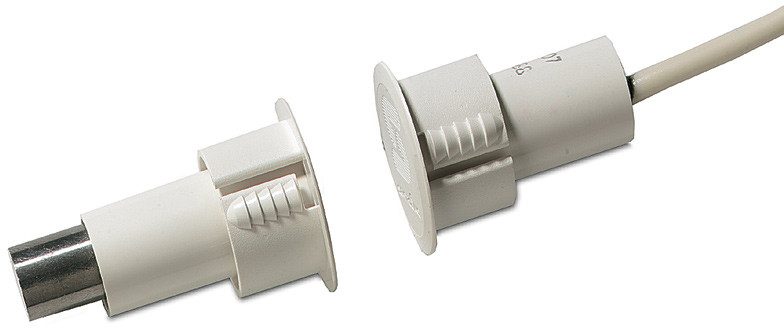

Steel door recessed mount contact
- Mounting surface : Ferrous Metals
- Contact of alarm : NC
- Tamper contact : NC
- Connection type : 4 wires
- Enclosure : Plastic
- VdS certified : No
- EN certified : Yes
- Warranty : 5 Years
- Features
-
DC107
Environmental

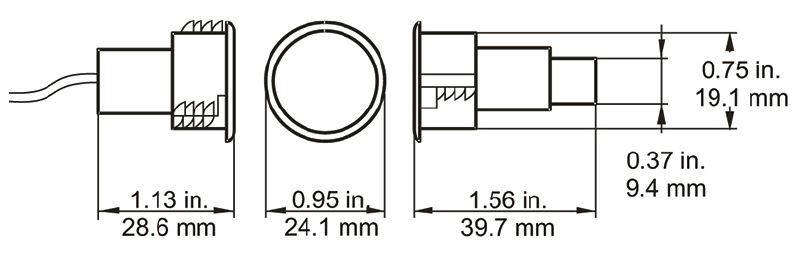

Working Temperature (°C) From -40 to 65 Colour White Enclosure Plastic Contact width [mm] 39 Magnet depth [mm] 39 Contact diameter [mm] 30 Magnet diameter [mm] 30 Mounting Flush Specifications
Connection type 4 wires Mounting surface Ferrous Metals Polarised No Tamper contact NC Contact of alarm NC Cable lenght [m] 2 Opening distance max. [mm] 9 Wireless detector No Warranty 5 Years Certifications
EN Certification EN50131 Grade 2 EN certified Yes VdS certified No - Download
-
