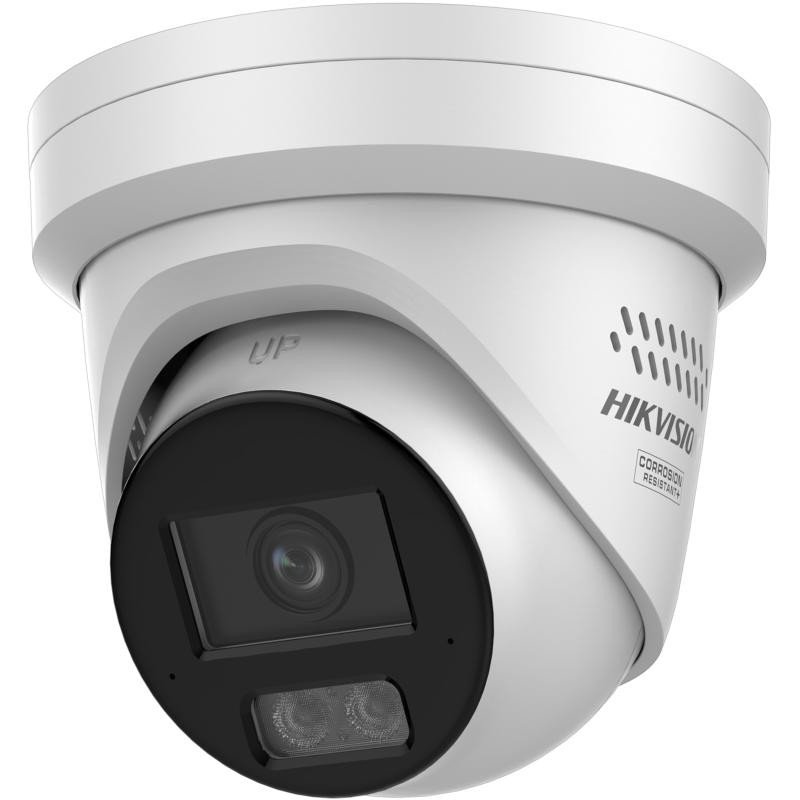

DS-2CD2347G3-LIS2UY/SL(2.8mm)

Turret IP 4MP 2.8mm EasyIP4.0+ Audio&Flash

DS-2CD2347G3-LIS2UY/SL(2.8mm), HIKVISION, Turret, Videosurveillance, LEDs Max. distance (m) : 40, Angle of View max. : Horizontal (°) : 111, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK ColorVu, HIK AcuSense, Live Guard, HIK Smart Hybrid Light, Min.Lux color : 0.0001, Warranty : 3 Years, Manufacturer ref. : 311328188, DS-2CD2347G3-LIS2UY/SL(2.8mm), HIKVISION, Turret, Videosurveillance, LEDs Max. distance (m) : 40, Angle of View max. : Horizontal (°) : 111, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK ColorVu, HIK AcuSense, Live Guard, HIK Smart Hybrid Light, Min.Lux color : 0.0001, Warranty : 3 Years, Manufacturer ref. : 311328188, DS-2CD2347G3-LIS2UY/SL(2.8mm), HIKVISION, Turret, Videosurveillance, LEDs Max. distance (m) : 40, Angle of View max. : Horizontal (°) : 111, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK ColorVu, HIK AcuSense, Live Guard, HIK Smart Hybrid Light, Min.Lux color : 0.0001, Warranty : 3 Years, Manufacturer ref. : 311328188, DS-2CD2347G3-LIS2UY/SL(2.8mm), HIKVISION, Turret, Videosurveillance, LEDs Max. distance (m) : 40, Angle of View max. : Horizontal (°) : 111, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK ColorVu, HIK AcuSense, Live Guard, HIK Smart Hybrid Light, Min.Lux color : 0.0001, Warranty : 3 Years, Manufacturer ref. : 311328188,

  • LEDs Max. distance (m) : 40
  • Angle of View max. : Horizontal (°) : 111
  • Weather Proof IP Rating : 67
  • Series : Anti-corrosion, HIK ColorVu, HIK AcuSense, Live Guard, HIK Smart Hybrid Light
  • Min.Lux color : 0.0001
  • Warranty : 3 Years
  • Manufacturer ref. : 311328188

Features

DS-2CD2347G3-LIS2UY/SL(2.8mm)

Network

Remote connection 6
Web Browser Access Firefox, Google Chrome, Internet Explorer, MS-Edge, Safari, Without plugin
Multi-streaming 3
Network Security HTTPS encryption, IP address filtering, Password protection
DDNS HIK-Connect
Network Protocols Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, TCP/IP, UPnP

Audio Video Output

Audio Output Speaker integrated
CVBS output None
Two-way audio Yes

External Interface

Alarm Input 1
Alarm output 1
Reset Button Yes

Specifications

Power consumption (W) 17
Power supply 12VDC, POE
Signal System IP
Warranty 3 Years
Hardware platform IPC H13U

Environmental

Working Temperature (°C) From -30 to 60
Max. Working Humidity [%] 95
Weather Proof IP Rating 67
Form Factor Turret
IK Shock Rating not IK10
Material Anti-Corrosion NEMA4x
Mounting Ceiling, Surface, Wall
Colour White RAL9003
Connectors 20cm external cable
Heater No

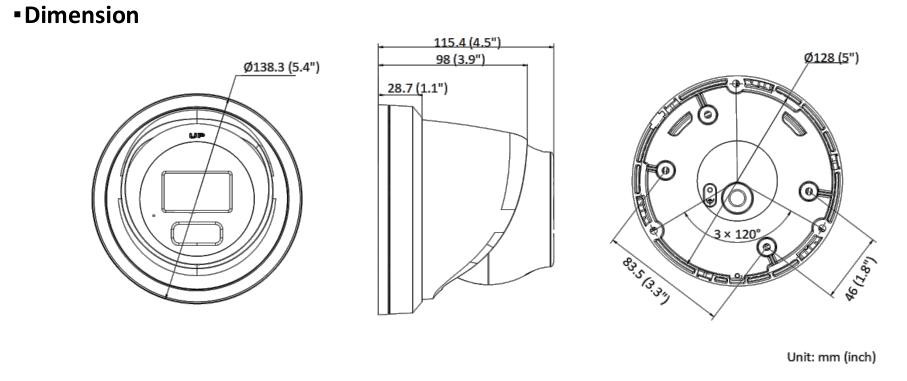

Dimensions (∅ x H) (mm) 128 x 115

Camera

Image Sensor 1/1.8" Progressive scan CMOS
Effective Pixels Horizontal 2688
Effective Pixels Verticals 1520
Minimum Shutter time 1/100'000s
Maximum Shutter time 1s
Lens (mm) 2.8mm
Day Night Yes
Day Night Type IR Cut Filter / ICR
Video Frame Rate 4MP@25ips
Video Resolution 4MP
Video Bitrate CBR Constant Bitrate, VBR Variable Bitrate
Video Compression H.264, H.264+, H.265, H.265+
Lens Type Fix, Fixed iris
Angle of View max. : Horizontal (°) 111
DSP ColorVu
Min.Lux color 0.0001
Focal aperture 1
Focus Fix
Vertical Angle of View (°) 58
Depht of field minimum {m] 2.5

Camera Menu

D/N Mode Auto, BW, Color

Built In Functions

Privacy Mask YES
Back Light Compensation area Yes
Anti-Flicker Yes
Inversion of image Yes
WDR Wide Dynamic Range 130dB
Analyzes Abandoned Object / removed, Dynamic, Facial, Facial recognition, Humans / vehicles, Line Crossing, Penetration area, Simple mouvement, Vagabondage
Events output Audio Alarm, Output alarm, Strobe Light
OnVif Yes
E-Mail Events, system error
Calendar By event, Week's days
Anti-vibration No
Defog Yes
HLC Bright light compensation Yes

Lighting

Lighting technology HybridLight (IR and White light)
LEDs Max. distance (m) 40
LED adjustment Auto, Manual, On/Off

Wifi

WiFi none

Video Audio Input

Audio Microphone

Hard Disk

External storage NAS
uSD card u-SD XC 512GB

Certifications

Video resolution Full HD, HD

Features

Product description

Color only with white LED backup.
Ultra low brightness for filming without fill light to get sharp images of movements and avoid light reflections.
Depht of focus : 2.5m to ∞

Deep Learning

DeepinLearning (AI) Analyse Face capture, Human & vehicle detection

Basic Informations

Manufacturer ref. 311328188
Download

DS-2CD2347G3-LIS2UY/SL(2.8mm)

Programs

By clicking on the next link, you get access to our downloading page of all the softwares and drivers of our range and categories of products

Can't find what you're looking for ? Contact us !

Support

DS-2CD2347G3-LIS2UY/SL(2.8mm)

Support Via Teamviewer

To enable us to help you remotely, don't hesitate to use our TEAMVIEWER software, which you can download here. This secure tool allows us temporary access to a machine when the software is activated. Under no circumstances will DEMA connect without your consent.

Download Teamviewer

Contact us

If you have any questions about this product, please use this form to contact the technical service directly, we will answer you as soon as possible.

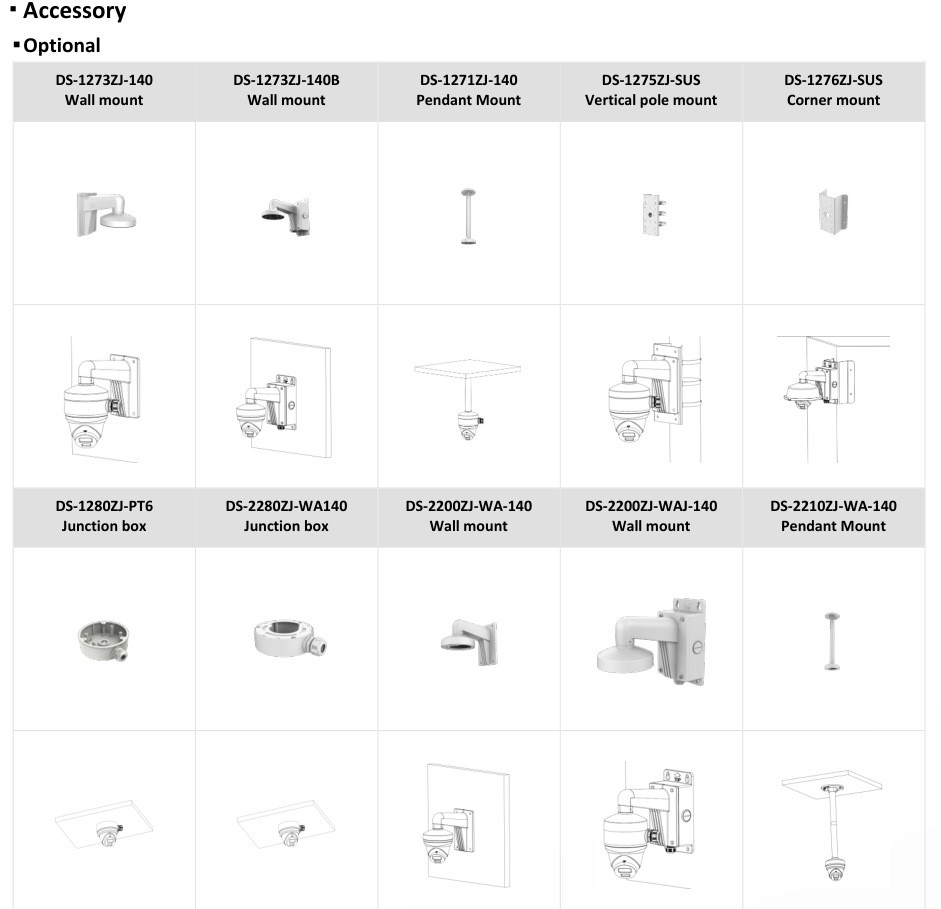

Accessories
