DS-2CD2H43G2-IZS(2.8-12mm)(O-STD)

Turret 4MP Zoom2.8-12mm IR40m IK10 I/O

DS-2CD2H43G2-IZS(2.8-12mm)(O-STD), HIKVISION, Turret, Videosurveillance, LEDs Max. distance (m) : 40, Angle of View min : Horizontal (°) : 29.2, Angle of View max. : Horizontal (°) : 95.8, Weather Proof IP Rating : 67, Series : HIK AcuSense, HIK Pro - Serie 2, Min.Lux color : 0.005, Warranty : 3 Years, Manufacturer ref. : 311314029, DS-2CD2H43G2-IZS(2.8-12mm)(O-STD), HIKVISION, Turret, Videosurveillance, LEDs Max. distance (m) : 40, Angle of View min : Horizontal (°) : 29.2, Angle of View max. : Horizontal (°) : 95.8, Weather Proof IP Rating : 67, Series : HIK AcuSense, HIK Pro - Serie 2, Min.Lux color : 0.005, Warranty : 3 Years, Manufacturer ref. : 311314029, DS-2CD2H43G2-IZS(2.8-12mm)(O-STD), HIKVISION, Turret, Videosurveillance, LEDs Max. distance (m) : 40, Angle of View min : Horizontal (°) : 29.2, Angle of View max. : Horizontal (°) : 95.8, Weather Proof IP Rating : 67, Series : HIK AcuSense, HIK Pro - Serie 2, Min.Lux color : 0.005, Warranty : 3 Years, Manufacturer ref. : 311314029, DS-2CD2H43G2-IZS(2.8-12mm)(O-STD), HIKVISION, Turret, Videosurveillance, LEDs Max. distance (m) : 40, Angle of View min : Horizontal (°) : 29.2, Angle of View max. : Horizontal (°) : 95.8, Weather Proof IP Rating : 67, Series : HIK AcuSense, HIK Pro - Serie 2, Min.Lux color : 0.005, Warranty : 3 Years, Manufacturer ref. : 311314029,

  • LEDs Max. distance (m) : 40
  • Angle of View min : Horizontal (°) : 29.2
  • Angle of View max. : Horizontal (°) : 95.8
  • Weather Proof IP Rating : 67
  • Series : HIK AcuSense, HIK Pro - Serie 2
  • Min.Lux color : 0.005
  • Warranty : 3 Years
  • Manufacturer ref. : 311314029

Features

DS-2CD2H43G2-IZS(2.8-12mm)(O-STD)

Network

Remote connection 6
Web Browser Access Yes
Multi-streaming 3
Network Security HTTPS encryption, IP address filtering, Password protection
DDNS HIK-Connect
Network Protocols Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPV4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, TCP/IP, UDP, UPnP

Audio Video Output

Audio Output 1 Audio output
CVBS output None
Two-way audio Yes

External Interface

Alarm Input 1
Alarm output 1
Reset Button Yes
Network Interface 1x RJ-45 10/100 Mbps Ethernet

Specifications

Power consumption (W) 12.5
Power supply 12VDC, POE
Signal System IP
Warranty 3 Years
Hardware platform IPC G5

Environmental

Working Temperature (°C) From -30 to 60
Max. Working Humidity [%] 95
Weight 1.135
Weather Proof IP Rating 67
Form Factor Turret
IK Shock Rating 10
Material Aluminium

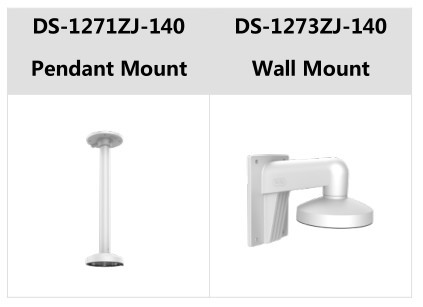

Mounting Ceiling, Surface, Wall
Colour White RAL9003
Connectors 20cm external cable
Heater No
Package volume (m3) 0.09

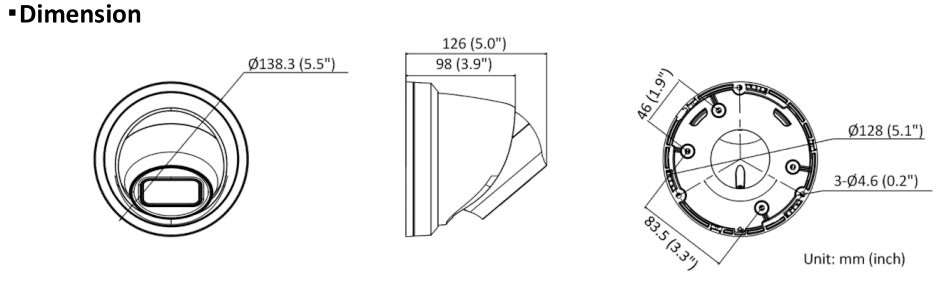

Dimensions (∅ x H) (mm) 138.3 x 126

Camera

Image Sensor 1/3'' Progressive Scan CMOS
Effective Pixels Horizontal 2688
Effective Pixels Verticals 1520
Minimum Shutter time 1/100'000s
Maximum Shutter time 1/3s
Lens (mm) 2.8-12mm
Day Night Yes
Day Night Type IR Cut Filter / ICR
Video Frame Rate 4MP@25ips
Video Resolution 4MP
Video Bitrate CBR Constant Bitrate, VBR Variable Bitrate
Video Compression H.264, H.264+, H.265, H.265+, MJPEG
Lens Type Fix, Motorised zoom, Variable focus
Camera angle (°) From 29.2 to 95.8
Min.Lux color 0.005
Min.Lux B/W 0
Focal aperture 1.6
Focus Fix
Focal aperture (Tele) 1.6
Vertical Angle of View (°) 16.4

Camera Menu

D/N Mode Auto, BW, Color, Schedule

Built In Functions

Privacy Mask 4 zones, YES
Back Light Compensation area Yes
Anti-Flicker Yes
Inversion of image Yes
WDR Wide Dynamic Range 120dB
Analyzes Facial, Facial recognition, Humans / vehicles, Line Crossing, Motion Detection Support, Penetration area, Simple mouvement, Vehicles tracking, Video Detection /Human+Vehicles
Events output E-Mail, Output alarm
OnVif Yes
E-Mail Events, system error
Calendar By event, Week's days
Anti-vibration No
Defog No
HLC Bright light compensation Yes
Event Management Incoming Alarm input

Lighting

Lighting technology IR LED
LEDs Max. distance (m) 40
LED adjustment Auto, Manual, On/Off

Wifi

WiFi none

Video Audio Input

Audio Audio line entry, Audio supported

Hard Disk

External storage NAS
uSD card u-SD XC 512GB

Certifications

Video resolution Full HD, HD

Deep Learning

DeepinLearning (AI) Analyse Face capture, Face recognition, Human & vehicle detection, Vehicle recognition

Basic Informations

EAN Code 6941264073628
Manufacturer ref. 311314029
