DS-2CD2T47G3-LIY(4mm)(O-STD)

Bullet 4MP 4mm EasyIP4.0+

DS-2CD2T47G3-LIY(4mm)(O-STD), HIKVISION, Bulletcameras, Videosurveillance, LEDs Max. distance (m) : 60, Angle of View max. : Horizontal (°) : 95.2, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK ColorVu, HIK Pro - Serie 2, HIK Smart Hybrid Light, Min.Lux color : 0.0001, Warranty : 3 Years, Manufacturer ref. : 311328134, DS-2CD2T47G3-LIY(4mm)(O-STD), HIKVISION, Bulletcameras, Videosurveillance, LEDs Max. distance (m) : 60, Angle of View max. : Horizontal (°) : 95.2, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK ColorVu, HIK Pro - Serie 2, HIK Smart Hybrid Light, Min.Lux color : 0.0001, Warranty : 3 Years, Manufacturer ref. : 311328134, DS-2CD2T47G3-LIY(4mm)(O-STD), HIKVISION, Bulletcameras, Videosurveillance, LEDs Max. distance (m) : 60, Angle of View max. : Horizontal (°) : 95.2, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK ColorVu, HIK Pro - Serie 2, HIK Smart Hybrid Light, Min.Lux color : 0.0001, Warranty : 3 Years, Manufacturer ref. : 311328134, DS-2CD2T47G3-LIY(4mm)(O-STD), HIKVISION, Bulletcameras, Videosurveillance, LEDs Max. distance (m) : 60, Angle of View max. : Horizontal (°) : 95.2, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK ColorVu, HIK Pro - Serie 2, HIK Smart Hybrid Light, Min.Lux color : 0.0001, Warranty : 3 Years, Manufacturer ref. : 311328134,

  • LEDs Max. distance (m) : 60
  • Angle of View max. : Horizontal (°) : 95.2
  • Weather Proof IP Rating : 67
  • Series : Anti-corrosion, HIK ColorVu, HIK Pro - Serie 2, HIK Smart Hybrid Light
  • Min.Lux color : 0.0001
  • Warranty : 3 Years
  • Manufacturer ref. : 311328134

Features

DS-2CD2T47G3-LIY(4mm)(O-STD)

Network

Remote connection 6
Web Browser Access Yes
Multi-streaming 3
Network Security HTTPS encryption, IP address filtering, Password protection
DDNS HIK-Connect
Network Protocols Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPV4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP/IP, UDP, UPnP

Audio Video Output

Audio Output No
CVBS output None
Two-way audio No

External Interface

Alarm Input No
Alarm output No
Reset Button Yes
Network Interface 1x RJ-45 10/100 Mbps Ethernet

Specifications

Power consumption (W) 12.5
Power supply 12VDC, POE
Signal System IP
Warranty 3 Years
Hardware platform IPC H13

Environmental

Working Temperature (°C) From -30 to 60
Max. Working Humidity [%] 95
Weight 1.889
Weather Proof IP Rating 67
Form Factor Bullet
IK Shock Rating None
Material Anti-Corrosion NEMA4x
Diameter [mm] 105
Mounting Ceiling, Surface, Wall
Colour White RAL9003
Connectors 20cm external cable
Heater No
Package volume (m3) 0.098

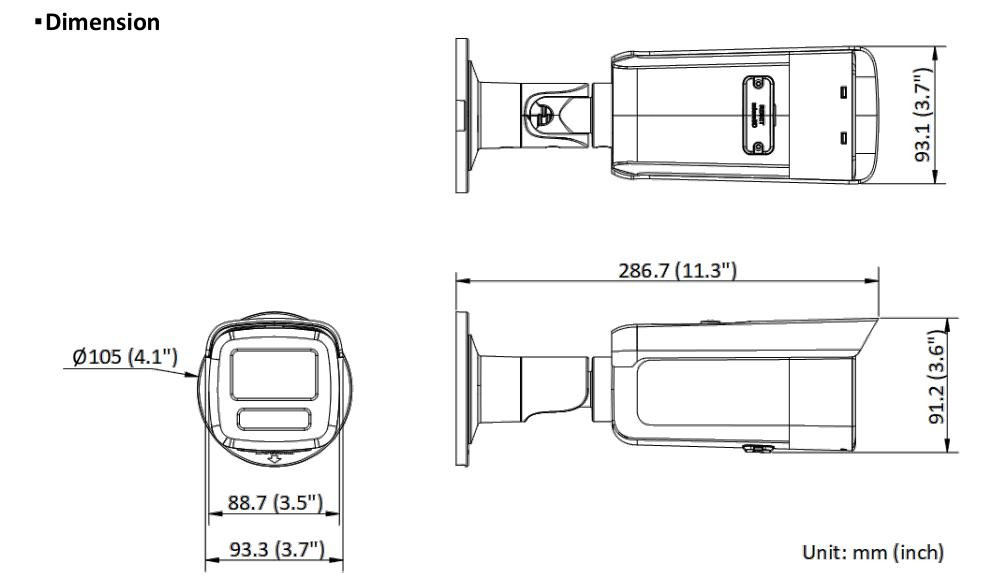

Dimensions (H x W x D) [mm] 91.2 x 286.7 x 93.3

Camera

Image Sensor 1/1.8" Progressive scan CMOS
Effective Pixels Horizontal 2688
Effective Pixels Verticals 1520
Minimum Shutter time 1/100'000s
Maximum Shutter time 1s
Lens (mm) 4mm
Day Night Yes
Day Night Type IR Cut Filter / ICR
Video Frame Rate 8MP@25fps
Video Resolution 4MP
Video Bitrate CBR Constant Bitrate, VBR Variable Bitrate
Video Compression H.264, H.264+, H.265, H.265+, MJPEG
Lens Type Fix
Angle of View max. : Horizontal (°) 95.2
DSP ColorVu
Min.Lux color 0.0001
Focal aperture 1
Focus Fix
Focal aperture (Tele) 1
Vertical Angle of View (°) 48.3
Depht of field minimum {m] 3.1

Camera Menu

D/N Mode Auto, BW, Color

Built In Functions

Privacy Mask 4 zones, YES
Back Light Compensation area Yes
Anti-Flicker Yes
Inversion of image Yes
WDR Wide Dynamic Range 130dB
Analyzes Facial, Facial recognition, Humans / vehicles, Line Crossing, Motion Detection Support, Penetration area, Region Entrance Detection, Region Exiting Detection, Scene change detection, Simple mouvement, Vehicles tracking, Video Detection /Human+Vehicles
OnVif Yes
E-Mail Events, system error
Calendar By event, Week's days
Anti-vibration No
Defog Yes
HLC Bright light compensation Yes

Lighting

Lighting technology HybridLight (IR and White light)
LEDs Max. distance (m) 60
LED adjustment Auto, Manual, On/Off

Wifi

WiFi none

Video Audio Input

Audio No

Hard Disk

External storage NAS
uSD card u-SD XC 512GB

Certifications

Video resolution Full HD, HD

Features

Product description Consumption without Led: 3.8W
Depht of focus : 3.3m to ∞

Deep Learning

DeepinLearning (AI) Analyse Face capture, Face recognition, Human & vehicle detection, Vehicle recognition
Comparative research None
Face picture libraries None

Basic Informations

EAN Code 6936422115142
Manufacturer ref. 311328134
Download

DS-2CD2T47G3-LIY(4mm)(O-STD)

Programs

By clicking on the next link, you get access to our downloading page of all the softwares and drivers of our range and categories of products

Can't find what you're looking for ? Contact us !

Support

DS-2CD2T47G3-LIY(4mm)(O-STD)

Support Via Teamviewer

To enable us to help you remotely, don't hesitate to use our TEAMVIEWER software, which you can download here. This secure tool allows us temporary access to a machine when the software is activated. Under no circumstances will DEMA connect without your consent.

Download Teamviewer

Contact us

If you have any questions about this product, please use this form to contact the technical service directly, we will answer you as soon as possible.

403 Forbidden

Forbidden

You don't have permission to access this resource.

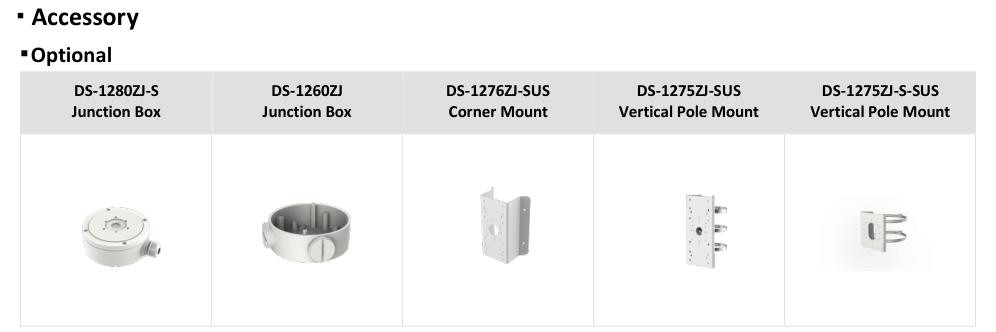

Accessories
