DS-2CD3D86G2T-IZHSUY(2.8-12mm)(H)eFO-STD

Dome 8MP 2.8-12mm IR40m Micro D.Fighter

DS-2CD3D86G2T-IZHSUY(2.8-12mm)(H)eFO-STD, HIKVISION, Domes, Videosurveillance, LEDs Max. distance (m) : 50, Angle of View min : Horizontal (°) : 41, Angle of View max. : Horizontal (°) : 112, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK DarkFighter, HEOP, HIK Ultra - Serie 3, Min.Lux color : 0.004, Warranty : 5 Years, Manufacturer ref. : 311323543, DS-2CD3D86G2T-IZHSUY(2.8-12mm)(H)eFO-STD, HIKVISION, Domes, Videosurveillance, LEDs Max. distance (m) : 50, Angle of View min : Horizontal (°) : 41, Angle of View max. : Horizontal (°) : 112, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK DarkFighter, HEOP, HIK Ultra - Serie 3, Min.Lux color : 0.004, Warranty : 5 Years, Manufacturer ref. : 311323543, DS-2CD3D86G2T-IZHSUY(2.8-12mm)(H)eFO-STD, HIKVISION, Domes, Videosurveillance, LEDs Max. distance (m) : 50, Angle of View min : Horizontal (°) : 41, Angle of View max. : Horizontal (°) : 112, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK DarkFighter, HEOP, HIK Ultra - Serie 3, Min.Lux color : 0.004, Warranty : 5 Years, Manufacturer ref. : 311323543, DS-2CD3D86G2T-IZHSUY(2.8-12mm)(H)eFO-STD, HIKVISION, Domes, Videosurveillance, LEDs Max. distance (m) : 50, Angle of View min : Horizontal (°) : 41, Angle of View max. : Horizontal (°) : 112, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK DarkFighter, HEOP, HIK Ultra - Serie 3, Min.Lux color : 0.004, Warranty : 5 Years, Manufacturer ref. : 311323543, DS-2CD3D86G2T-IZHSUY(2.8-12mm)(H)eFO-STD, HIKVISION, Domes, Videosurveillance, LEDs Max. distance (m) : 50, Angle of View min : Horizontal (°) : 41, Angle of View max. : Horizontal (°) : 112, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK DarkFighter, HEOP, HIK Ultra - Serie 3, Min.Lux color : 0.004, Warranty : 5 Years, Manufacturer ref. : 311323543,

  • LEDs Max. distance (m) : 50
  • Angle of View min : Horizontal (°) : 41
  • Angle of View max. : Horizontal (°) : 112
  • Weather Proof IP Rating : 67
  • Series : Anti-corrosion, HIK DarkFighter, HEOP, HIK Ultra - Serie 3
  • Min.Lux color : 0.004
  • Warranty : 5 Years
  • Manufacturer ref. : 311323543

Features

DS-2CD3D86G2T-IZHSUY(2.8-12mm)(H)eFO-STD

Network

Remote connection 6
Web Browser Access Yes
Multi-streaming 4
Network Security HTTPS encryption, IP address filtering, Password protection
DDNS HIK-Connect
Network Protocols Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPV4, IPv6, NTP, PPPoE, QoS, RTP, RTSP, SMTP, SNMP, TCP/IP, UDP, UPnP

Audio Video Output

Audio Output 1 Audio output
CVBS output None
Two-way audio Yes

External Interface

Alarm Input 2
Alarm output 2
Reset Button Yes
Network Interface 1x RJ-45 10/100 Mbps Ethernet

Specifications

Power consumption (W) 12.9
Power supply 12VDC, 24V ac, POE
Signal System IP
Voltage output 12 VDC
Warranty 5 Years
Hardware platform IPC G5

Environmental

Working Temperature (°C) From -40 to 60
Max. Working Humidity [%] 95
Weight 2.222
Weather Proof IP Rating 67
Form Factor Dome
IK Shock Rating 10
Material Anti-Corrosion NEMA4x
Mounting Ceiling, Surface, Wall
Colour White RAL9003
Connectors 20cm external cable
Heater Yes
Package volume (m3) 0.136

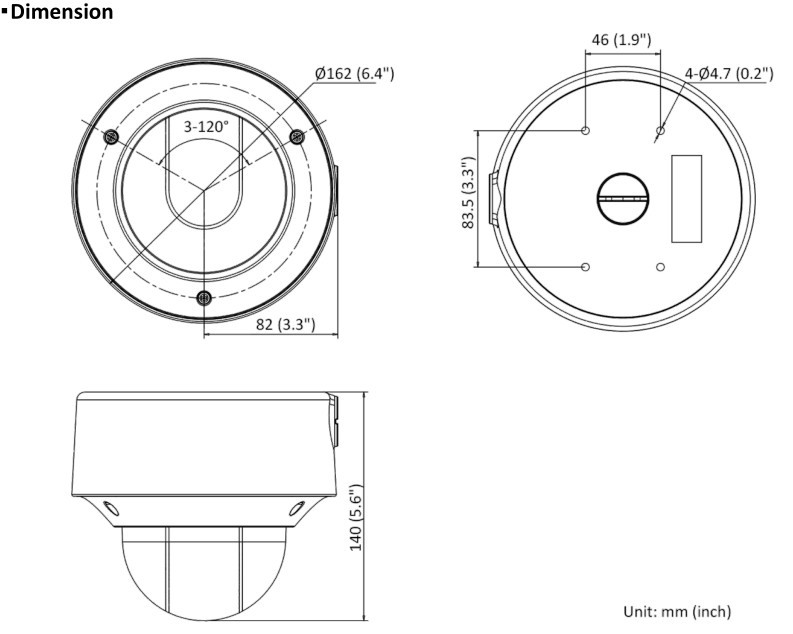

Dimensions (∅ x H) (mm) 162 x 141.8

Camera

Image Sensor 1/1.8" Progressive scan CMOS
Effective Pixels Horizontal 3840
Effective Pixels Verticals 2160
Minimum Shutter time 1/100'000s
Maximum Shutter time 1/3s
Lens (mm) 2.8-12mm
Day Night Yes
Day Night Type IR Cut Filter / ICR
Video Frame Rate 8MP@25fps
Video Resolution 8MP (4K)
Video Bitrate CBR Constant Bitrate, VBR Variable Bitrate
Video Compression H.264, H.264+, H.265, H.265+, MJPEG
Lens Type Motorised zoom, Variable focus
Camera angle (°) From 41 to 112
DSP DarkFighter Hardware
Min.Lux color 0.004
Min.Lux B/W 0
Focal aperture 1.4
Focus Controlled
Focal aperture (Tele) 2.8
Vertical Angle of View (°) 23
Depht of field minimum {m] 1.8

Camera Menu

D/N Mode Auto, BW, Color, Schedule

Built In Functions

Privacy Mask 4 zones, YES
Back Light Compensation area Yes
Anti-Flicker Yes
Inversion of image Yes
WDR Wide Dynamic Range 120dB
Analyzes Abandoned Object / removed, Classified objects, Facial, Facial recognition, Humans / vehicles, Line Crossing, Motion Detection Support, Penetration area, Region Entrance Detection, Region Exiting Detection, Scene change detection, Simple mouvement, Vehicles tracking, Video Detection /Human+Vehicles
Events output E-Mail, Output alarm
OnVif Yes
E-Mail Events, system error
Calendar By event, Daily, Week's days
Anti-vibration No
Defog Yes
HLC Bright light compensation Yes
Event Management Incoming Alarm input
HEOP HEOP 2.0 60MB system memory

Lighting

Lighting technology IR LED
LEDs Max. distance (m) 50
LED adjustment Auto, Manual, On/Off

Wifi

WiFi none

Video Audio Input

Audio Audio line entry, Audio supported, Microphone

Hard Disk

External storage NAS
uSD card u-SD XC 512GB

Certifications

Video resolution 4MP, Full HD, HD

Features

Product description

NEMA 4X (NEMA 250-2014)

Deep Learning

DeepinLearning (AI) Analyse Face capture, Face recognition, Human & vehicle detection, Vehicle recognition

Basic Informations

EAN Code 6942160412016
Manufacturer ref. 311323543
Download

DS-2CD3D86G2T-IZHSUY(2.8-12mm)(H)eFO-STD

Programs

By clicking on the next link, you get access to our downloading page of all the softwares and drivers of our range and categories of products

Can't find what you're looking for ? Contact us !

Support

DS-2CD3D86G2T-IZHSUY(2.8-12mm)(H)eFO-STD

Support Via Teamviewer

To enable us to help you remotely, don't hesitate to use our TEAMVIEWER software, which you can download here. This secure tool allows us temporary access to a machine when the software is activated. Under no circumstances will DEMA connect without your consent.

Download Teamviewer

Contact us

If you have any questions about this product, please use this form to contact the technical service directly, we will answer you as soon as possible.

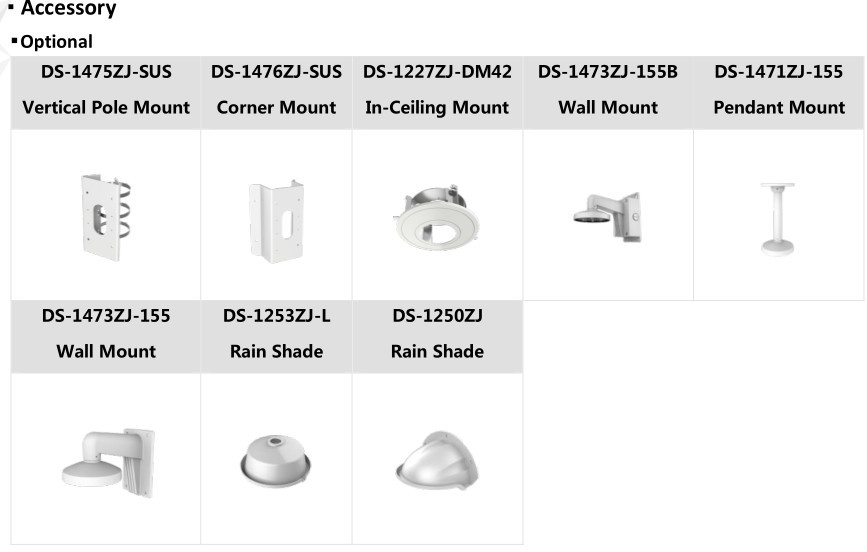

Accessories
