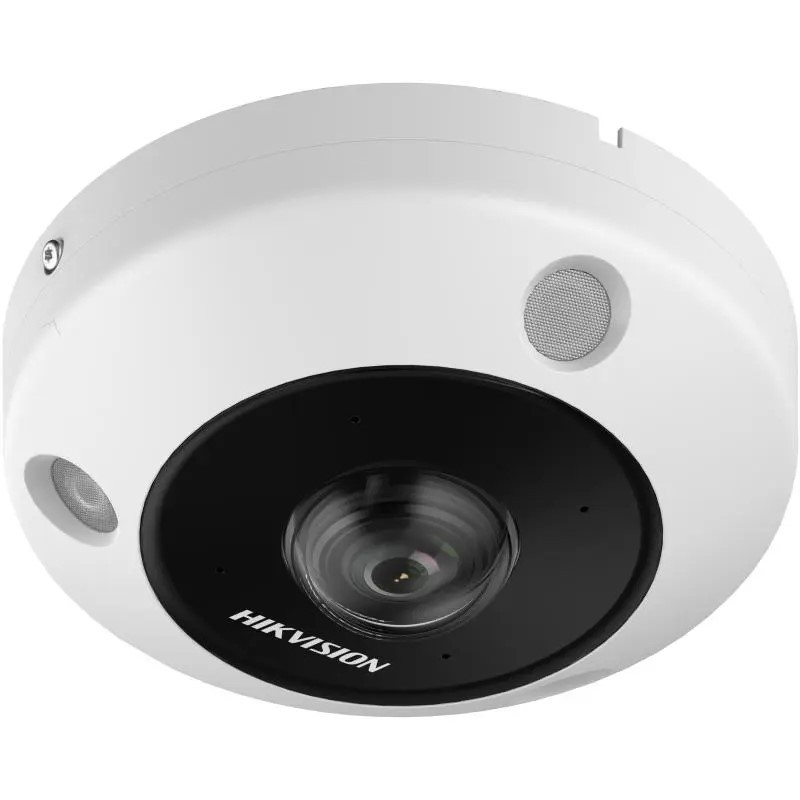

DS-2CD63C5G1-IVS(1.29mm)(O-STD)
Dome12MP 360° IR15m I/O Mic&LS IP67IK10
- LEDs Max. distance (m) : 3
- Angle of View max. : Horizontal (°) : 180
- Weather Proof IP Rating : 67
- Series : HIK DeepinView
- Min.Lux color : 0.03
- Warranty : 5 Years
- Manufacturer ref. : 311324115
- Features
-
DS-2CD63C5G1-IVS(1.29mm)(O-STD)
- Network
- Audio Video output
- External interface
- Specifications
- Environmental
- Camera
- Camera menu
- Built in functions
- Lighting
- Wifi
- Video Audio input
- Hard disk
- Certifications
- Basic informations
Network
Remote connection 20 Web Browser Access Yes Multi-streaming 6 Network Security HTTPS encryption, IP address filtering, Password protection DDNS HIK-Connect Network Protocols Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPV4, IPv6, ISUP, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SIP, SMTP, SNMP, TCP/IP, UDP, UPnP Audio Video Output
Audio Output 1 Audio output CVBS output None Two-way audio Yes External Interface
Alarm Input 2 Alarm output 2 Reset Button Yes Network Interface 1x RJ-45 10/100/1000 Mbps Ethernet Specifications
Power consumption (W) 12.5 Power supply 12VDC, POE Signal System IP Warranty 5 Years Environmental
Working Temperature (°C) From -40 to 60 Max. Working Humidity [%] 95 Weight 1.428 Weather Proof IP Rating 67 Form Factor Fisheye IK Shock Rating 10 Material Metal Mounting Ceiling, Surface, Wall Colour White Connectors 20cm external cable Heater Yes Width [mm] 164 Package volume (m3) 0.112 Dimensions (∅ x H) (mm) 140.3 x 59.4 Camera
Image Sensor 1/1.8" Progressive scan CMOS Effective Pixels Horizontal 3504 Effective Pixels Verticals 3504 Minimum Shutter time 1/100'000s Maximum Shutter time 1s Lens (mm) 1.29mm Day Night Yes Day Night Type IR Cut Filter / ICR Video Frame Rate 12MP@20fps Video Resolution 12MP Video Bitrate CBR Constant Bitrate, VBR Variable Bitrate Video Compression H.264, H.264+, H.265, H.265+, MJPEG Lens Type Fix Angle of View max. : Horizontal (°) 180 DSP DarkFighter Hardware Min.Lux color 0.03 Min.Lux B/W 0.006 Focal aperture 2.2 Focus Fix Focal aperture (Tele) 2.2 Vertical Angle of View (°) 180 Depht of field minimum {m] 0.2 Camera Menu
D/N Mode Auto, BW, Color, Schedule Built In Functions
Privacy Mask 8 Polygonal Zones, YES Back Light Compensation area Yes Anti-Flicker Yes Inversion of image Yes WDR Wide Dynamic Range D-WDR Digital WDR Analyzes Abandoned Object / removed, Classified objects, Line Crossing, Motion Detection Support, Penetration area, Region Entrance Detection, Region Exiting Detection, Scene change detection, Simple mouvement Events output E-Mail OnVif Yes E-Mail Events, system error Calendar By event, Week's days Anti-vibration No Defog Yes Embedded statistics Counting line, Heatmap HLC Bright light compensation Yes Dewarping 4x focus, Fischeye, Fisheye & 3 focus, ceiling, wall, table, panorama Lighting
Lighting technology IR LED LEDs Max. distance (m) 3 LED adjustment Auto, Individual, Manual, On/Off Wifi
WiFi none Video Audio Input
Audio Audio line entry, Audio supported, Microphone Hard Disk
Integrated drive Without External storage NAS uSD card u-SD XC 256GB Certifications
Video resolution Full HD, HD Basic Informations
EAN Code 6942160433066 Manufacturer ref. 311324115 - Download
-
