DS-2CD6W65G1-IVS(1.16mm)(O-STD)

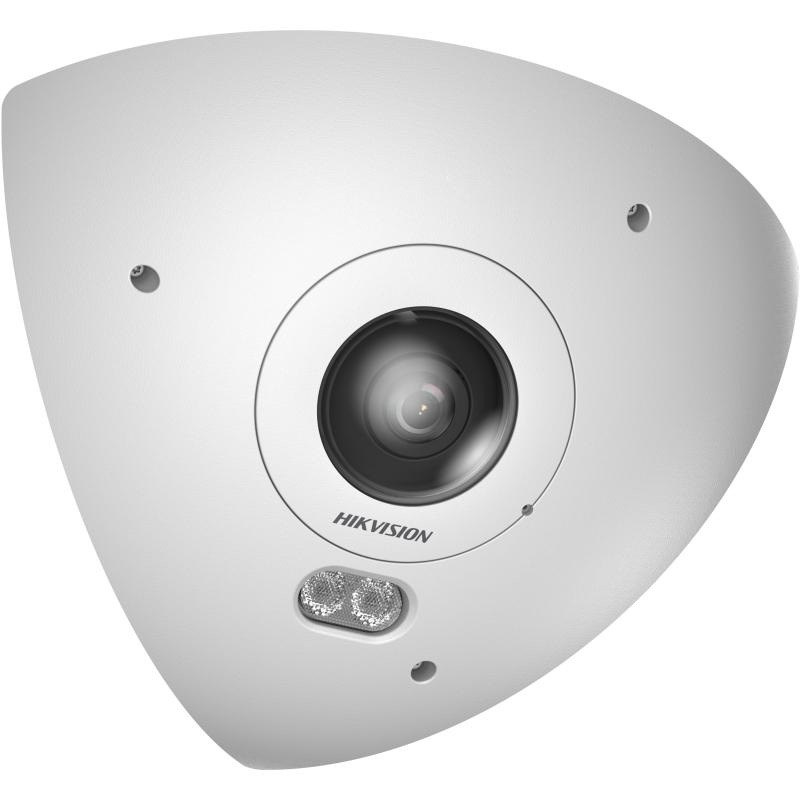

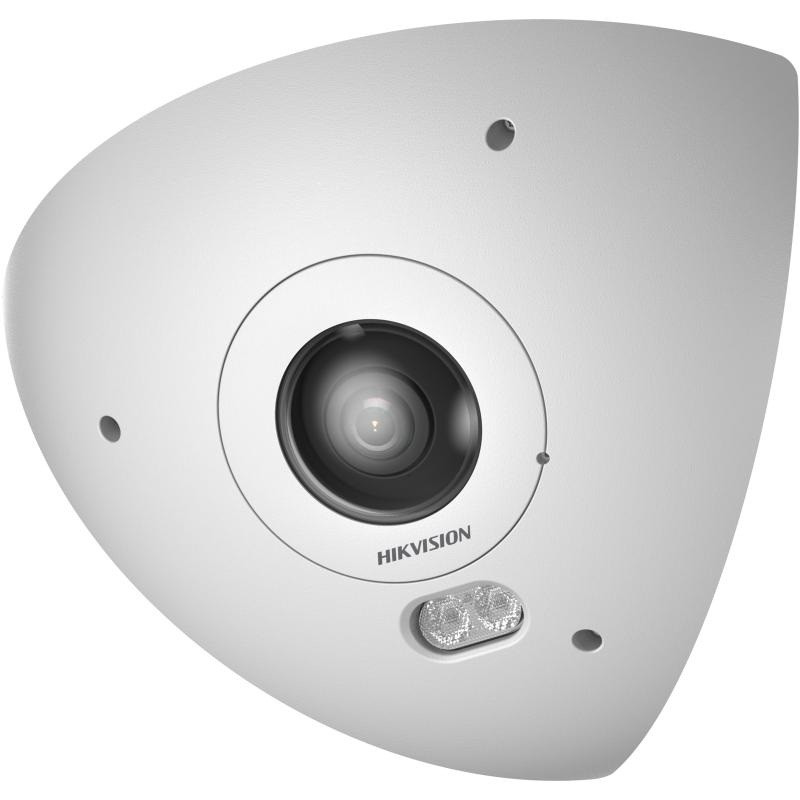

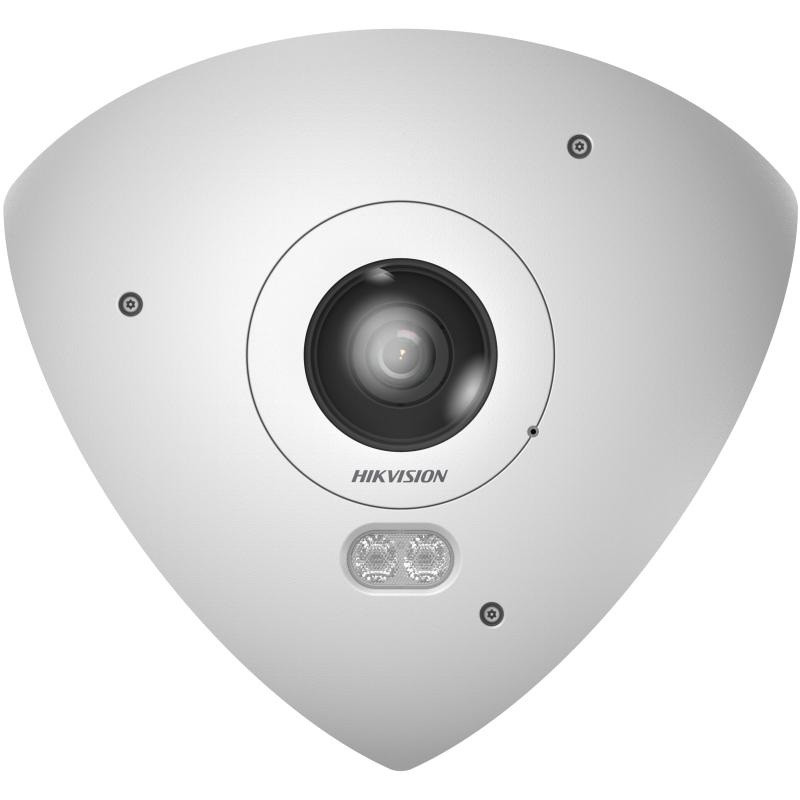

6MP DeepinView Fisheye corner camera IP67 IK10
- LEDs Max. distance (m) : 2
- Angle of View max. : Horizontal (°) : 180
- Weather Proof IP Rating : 67
- Series : HIK DeepinView
- Min.Lux color : 0.01
- Warranty : 5 Years
- Manufacturer ref. : 311324661
- Features
-
DS-2CD6W65G1-IVS(1.16mm)(O-STD)
- Network
- Audio Video output
- External interface
- Specifications
- Environmental
- Camera
- Camera menu
- Built in functions
- Lighting
- Wifi
- Video Audio input
- Hard disk
- Certifications
- Basic informations
Network
Remote connection 20 Web Browser Access Yes Multi-streaming 2 Network Security Digest authentication, HTTPS encryption, IEEE 802.1Xa network access control, IP address filtering, Password protection DDNS HIK-Connect Network Protocols Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPV4, IPv6, ISUP, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SIP, SMTP, SNMP, TCP/IP, UDP, UPnP Audio Video Output
Audio Output 1 Audio output CVBS output None Two-way audio Yes External Interface
Alarm Input 2 Alarm output 2 Reset Button Yes Network Interface 1x RJ-45 10/100/1000 Mbps Ethernet Specifications
Power consumption (W) 10 Power supply 12VDC, POE Signal System IP Warranty 5 Years Environmental

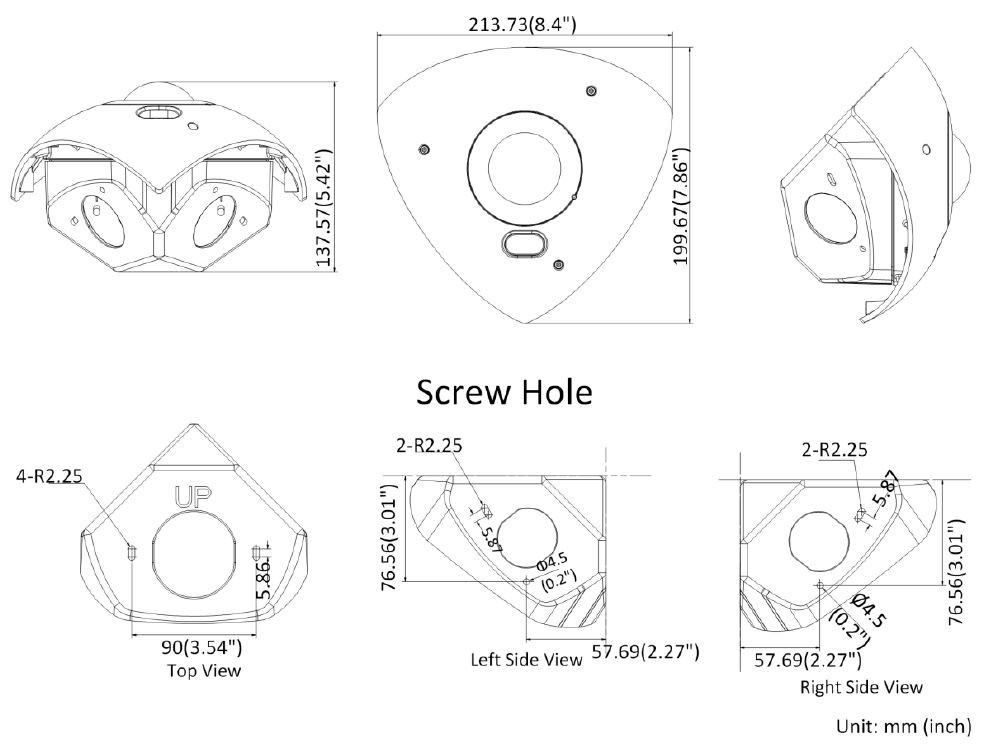

Working Temperature (°C) From -30 to 60 Max. Working Humidity [%] 95 Weight 1.904 Weather Proof IP Rating 67 Form Factor Fisheye IK Shock Rating 10 Material Metal Mounting Ceiling, Surface, Wall Colour White Connectors 20cm external cable Heater No Package volume (m3) 0.112 Dimensions (H x W x D) [mm] 137.57 x 213.73 x 199.67 Camera
Image Sensor 1/1.8" Progressive scan CMOS Effective Pixels Horizontal 2560 Effective Pixels Verticals 2560 Minimum Shutter time 1/100'000s Maximum Shutter time 1s Lens (mm) 1.16mm Day Night Yes Day Night Type IR Cut Filter / ICR Video Frame Rate 6MP @ 25fps Video Resolution 7MP Video Bitrate CBR Constant Bitrate, VBR Variable Bitrate Video Compression H.264, H.264+, H.265, H.265+, MJPEG Lens Type Fix Angle of View max. : Horizontal (°) 180 Min.Lux color 0.01 Min.Lux B/W 0.005 Focal aperture 2.25 Focus Fix Focal aperture (Tele) 2.25 Vertical Angle of View (°) 180 Depht of field minimum {m] 0.2 Camera Menu
D/N Mode Auto, BW, Color, Schedule Built In Functions
Privacy Mask 8 Polygonal Zones, YES Back Light Compensation area Yes Anti-Flicker No Inversion of image No WDR Wide Dynamic Range D-WDR Digital WDR Analyzes Abandoned Object / removed, Classified objects, Line Crossing, Motion Detection Support, Penetration area, Region Entrance Detection, Region Exiting Detection, Scene change detection, Simple mouvement Events output E-Mail, FTP messages, Output alarm OnVif Yes E-Mail Events, system error Calendar Daily, Per month, Working days Anti-vibration No Defog Yes Embedded statistics Counting, Heatmap HLC Bright light compensation Yes Dewarping Fisheye & 8 Focus HEOP HEOP 2.0 60MB system memory Lighting
Lighting technology IR LED LEDs Max. distance (m) 2 Wifi
WiFi none Video Audio Input
Audio Audio line entry, Audio supported, Microphone Hard Disk
Integrated drive Without External storage NAS uSD card u-SD XC 256GB Certifications
Video resolution 6MP, Full HD, HD Basic Informations
EAN Code 6942160440095 Manufacturer ref. 311324661 - Download
-
