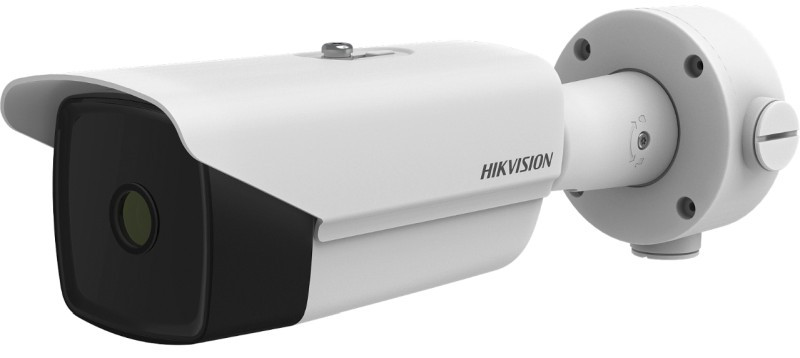

DS-2TD2137T-4/QY(O-STD)
Thermal 384×288 FoV 90° -20+550°C
- Thermal resolution : 384 x 288
- Multi Lense : No
- Thermal Field of View : 90° x 66,4°
- Temperature measurement range : 0 to 650°C
- Tolerance of temperature measurement : +/- 2 degrees
- Warranty : 5 Years
- Manufacturer ref. : 305401839
- Features
-
DS-2TD2137T-4/QY(O-STD)
- Camera
- Built in functions
- Lighting
- ptz
- Environmental
- External interface
- panovu
- Basic informations
- Specifications
- Network
- Video Audio input
- Hard disk
- Certifications
- Audio Video output
- Thermal camera
- Features
- Intercom
Camera
Day Night No Video Frame Rate Thermal 384x288@50ips Video Bitrate CBR Constant Bitrate, VBR Variable Bitrate Video Compression H.264, H.265, MJPEG Angle of View max. : Horizontal (°) 90 Vertical Angle of View (°) 65.3 Min.Lux color 0 Min.Lux B/W 0 Image Sensor Vanadium Oxide Uncooled Lens (mm) 4.4mm Day Night Type Thermal DSP HIK SMART Focal aperture (Tele) 1 Built In Functions
Back Light Compensation area No Anti-Flicker No Inversion of image No Temperature display Yes Anti-vibration No Defog No OnVif Yes Analyzes Line Crossing, Penetration area, Region Entrance Detection, Region Exiting Detection E-Mail Events, system error HLC Bright light compensation No Lighting
Infrared LEDs No Ptz
PTZ No Environmental

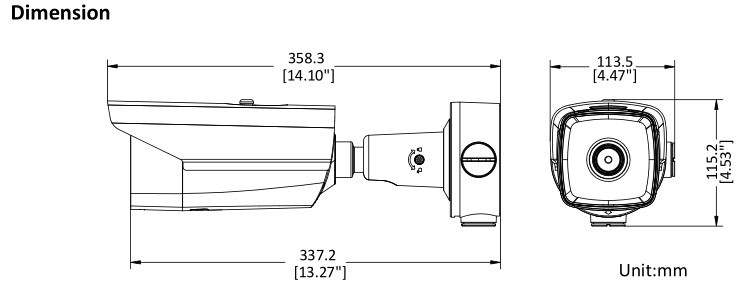

Heater Yes Corrosion proof No Mounting Surface, Wall Working Temperature (°C) From -40 to 65 Weather Proof IP Rating 67 Form Factor Bullet IK Shock Rating 10 Material Aluminium and plastic Connectors 20cm external cable Package volume (m3) 0.129 Max. Working Humidity [%] 95 Dimensions (H x W x D) [mm] 115.2 x 351.3 x 113.5 External Interface
Reset Button No Network Interface 1x RJ-45 10/100 Mbps Ethernet Alarm Input 2 Alarm output 2 Serial interface RS485 Panovu
Multi Lense No Basic Informations
Manufacturer ref. 305401839 EAN Code 6931847160296 Specifications
Power supply 12VDC, 24V ac, 24VDC, POE Signal System IP Warranty 5 Years Power consumption (W) 5.5 Supervision software compatibility HIK-Connect, iVMS-4200 Network
Web Browser Access Internet Explorer Multi-streaming 3 Network Security Digest authentication, HTTPS encryption, IP address filtering, Password protection DDNS HIK-Connect Remote connection 20 Network Protocols Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP Video Audio Input
Audio Audio line entry, Audio supported Hard Disk
External storage NAS Integrated drive Without uSD card u-SD XC 256GB Certifications
Video resolution Thermal 384x288 Audio Video Output
Audio Output 1 Audio output Two-way audio Yes Thermal Camera
Thermal Sensor Vanadium Oxide Uncooled Focal Plane Detectors Thermal resolution 384 x 288 Thermal Field of View 90° x 66,4° Temperature measurement range 0 to 650°C Tolerance of temperature measurement +/- 2 degrees Pixel Pitch 17 μm Sensitivity NETD <35mk Digital Zoom 2x, 4x, 8x VCA Range for Humans (m) 28 VCA Range for Vehicles (m) 84 Features
Product description DS-1260ZJ shipped by default Intercom
Audio CODEC G726-32 - Download
-
