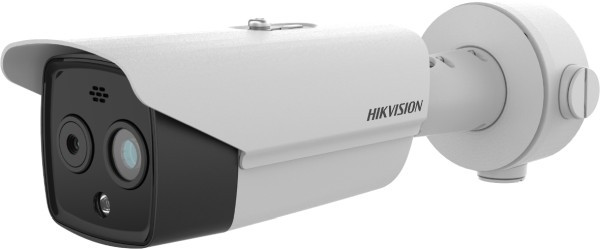

DS-2TD2628T-3/QA(O-STD)

4MP&Thermal256x192 FoV50° VCA Alarm

DS-2TD2628T-3/QA(O-STD), HIKVISION, Thermal cameras, High security, Videosurveillance, Fire, Thermal resolution : 256 x 192, Multi Lense : Yes, Thermal Field of View : 50° x 37°, Temperature measurement range : 0 to 650°C, Tolerance of temperature measurement : +/- 2 degrees, Warranty : 5 Years, Manufacturer ref. : 305401691, DS-2TD2628T-3/QA(O-STD), HIKVISION, Thermal cameras, High security, Videosurveillance, Fire, Thermal resolution : 256 x 192, Multi Lense : Yes, Thermal Field of View : 50° x 37°, Temperature measurement range : 0 to 650°C, Tolerance of temperature measurement : +/- 2 degrees, Warranty : 5 Years, Manufacturer ref. : 305401691, DS-2TD2628T-3/QA(O-STD), HIKVISION, Thermal cameras, High security, Videosurveillance, Fire, Thermal resolution : 256 x 192, Multi Lense : Yes, Thermal Field of View : 50° x 37°, Temperature measurement range : 0 to 650°C, Tolerance of temperature measurement : +/- 2 degrees, Warranty : 5 Years, Manufacturer ref. : 305401691, DS-2TD2628T-3/QA(O-STD), HIKVISION, Thermal cameras, High security, Videosurveillance, Fire, Thermal resolution : 256 x 192, Multi Lense : Yes, Thermal Field of View : 50° x 37°, Temperature measurement range : 0 to 650°C, Tolerance of temperature measurement : +/- 2 degrees, Warranty : 5 Years, Manufacturer ref. : 305401691, DS-2TD2628T-3/QA(O-STD), HIKVISION, Thermal cameras, High security, Videosurveillance, Fire, Thermal resolution : 256 x 192, Multi Lense : Yes, Thermal Field of View : 50° x 37°, Temperature measurement range : 0 to 650°C, Tolerance of temperature measurement : +/- 2 degrees, Warranty : 5 Years, Manufacturer ref. : 305401691,

  • Thermal resolution : 256 x 192
  • Multi Lense : Yes
  • Thermal Field of View : 50° x 37°
  • Temperature measurement range : 0 to 650°C
  • Tolerance of temperature measurement : +/- 2 degrees
  • Warranty : 5 Years
  • Manufacturer ref. : 305401691

Features

DS-2TD2628T-3/QA(O-STD)

Audio Video Output

Audio Output 1 Audio output
CVBS output None

External Interface

Network Interface 1x RJ-45 10/100 Mbps Ethernet
Alarm Input 2
Alarm output 2
Reset Button Yes

Specifications

Power consumption (W) 18
Power supply 12VDC, 24V ac, 24VDC, POE
Signal System IP
Warranty 5 Years

Environmental

Working Temperature (°C) From -40 to 65
Weight 2.51
Weather Proof IP Rating 67
Form Factor Bullet
IK Shock Rating 10
Material Aluminium and plastic
Mounting Surface
Heater No
Connectors 20cm external cable
Corrosion proof No
Package volume (m3) 0.129
Dimensions (H x W x D) [mm] 107 x 321.3 x 106.1

Camera

Image Sensor 1/2.7'' Progressive Scan CMOS
Lens (mm) 4.3mm
Day Night Yes
Day Night Type IR Cut Filter / ICR
Video Frame Rate 4MP@25ips
Video Resolution 4MP
Video Bitrate CBR Constant Bitrate, VBR Variable Bitrate
Video Compression H.264, H.265, MJPEG
DSP HIK SMART
Min.Lux color 0.0089
Min.Lux B/W 0.0035
Focal aperture 1.6
Effective Pixels Horizontal 2688
Effective Pixels Verticals 1520
Angle of View max. : Horizontal (°) 84
Focus Fix

Lighting

Infrared LEDs Yes
Lighting technology EXIR LED
LEDs Max. distance (m) 30
LED adjustment Auto, Flash on event, Manual, On/Off

Video Audio Input

Audio Audio line entry, Audio supported

Built In Functions

Temperature display Yes
Analyzes Line Crossing, Penetration area, Region Entrance Detection, Region Exiting Detection
OnVif Yes
E-Mail Events, system error
Defog No
Back Light Compensation area Yes
Anti-Flicker Yes
Inversion of image Yes
Anti-vibration No
Privacy Mask YES
WDR Wide Dynamic Range 120dB
Event Management Incoming Alarm input
Events output Message on audio output, Output alarm, Strobe Light
Calendar By event, Holidays, Week's days
HLC Bright light compensation Yes

Hard Disk

Integrated drive 32GB
uSD card u-SD XC 256GB
External storage NAS

Certifications

Video resolution Full HD, Thermal 256x192

Thermal Camera

Thermal Sensor Vanadium Oxide Uncooled Focal Plane Detectors
Thermal resolution 256 x 192
Thermal Field of View 50° x 37°
Temperature measurement range 0 to 650°C
Tolerance of temperature measurement +/- 2 degrees
Pixel Pitch 12 μm
Sensitivity NETD <40mK

Network

Web Browser Access Firefox, Google Chrome, Internet Explorer, MS-Edge, Without plugin
Multi-streaming 2
Network Security Digest authentication, HTTPS encryption, IP address filtering, Password protection
DDNS HIK-Connect
Remote connection 20

Features

Product description Thermal camera with second sensor Darkfighter 4MP 2 separate video streams Programming up to 8 VCA rules 3 types of temperature measurement for a total of 21 rules (10 points, 10 regions and a line). Flash and audible alarm on: VCA intrusion / line / entry and exit region alarms 10-point dynamic fire detection

Basic Informations

EAN Code 6931847157784
Manufacturer ref. 305401691

Ptz

PTZ No

Panovu

Multi Lense Yes
panorama sensor Thermal
Download

DS-2TD2628T-3/QA(O-STD)

Programs

By clicking on the next link, you get access to our downloading page of all the softwares and drivers of our range and categories of products

Can't find what you're looking for ? Contact us !

Support

DS-2TD2628T-3/QA(O-STD)

Support Via Teamviewer

To enable us to help you remotely, don't hesitate to use our TEAMVIEWER software, which you can download here. This secure tool allows us temporary access to a machine when the software is activated. Under no circumstances will DEMA connect without your consent.

Download Teamviewer

Contact us

If you have any questions about this product, please use this form to contact the technical service directly, we will answer you as soon as possible.

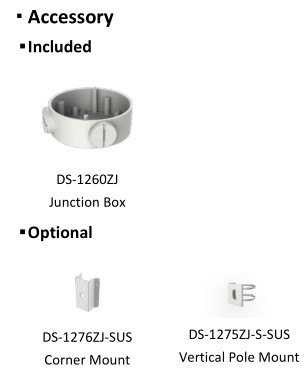

Accessories
