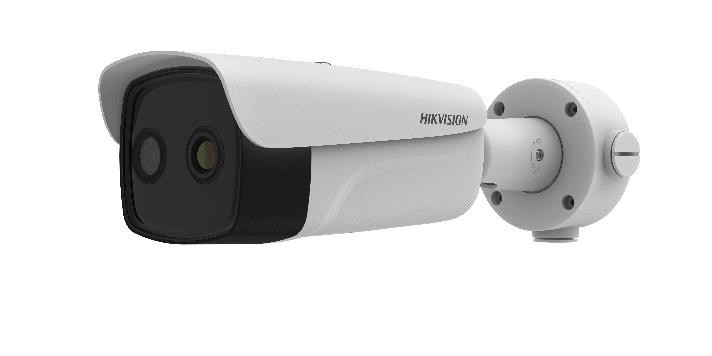

DS-2TD2637B-10/P
Thermographic 30-45°C CIF FoV38° dual
- Thermal resolution : 384 x 288
- Multi Lense : Yes
- Thermal Field of View : 37.7° x 27.7°
- Temperature measurement range : 30 to 45°C
- Tolerance of temperature measurement : +/- 0,5 degree
- Warranty : 6 months
- Manufacturer ref. : 305401179
- Features
-
DS-2TD2637B-10/P
- Audio Video output
- External interface
- Specifications
- Environmental
- Camera
- Lighting
- Video Audio input
- Built in functions
- Hard disk
- Certifications
- Thermal camera
- Network
- Features
- Basic informations
- ptz
- panovu
Audio Video Output
Audio Output 1 Audio output CVBS output None External Interface
Network Interface 1x RJ-45 10/100 Mbps Ethernet Alarm Input 2 Alarm output 2 Reset Button Yes Specifications
Power consumption (W) 9.5 Power supply 12VDC, POE+ Signal System CCTV, IP Warranty 6 months Environmental

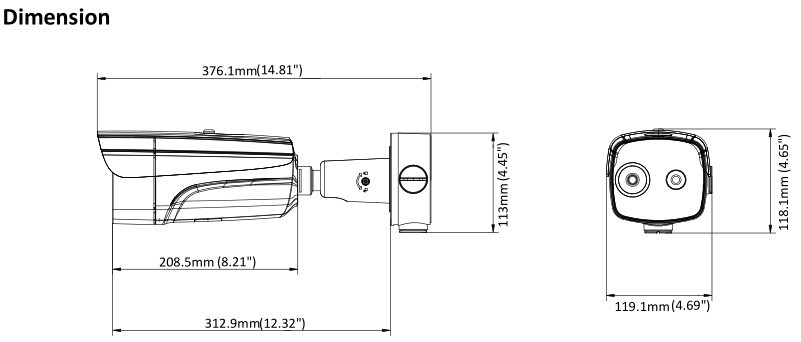

Working Temperature (°C) From 10 to 35 Weather Proof IP Rating 66 Form Factor Bullet IK Shock Rating not IK10 Material Aluminium and plastic Mounting Surface, Wall Heater No Connectors 20cm external cable Corrosion proof No Dimensions (H x W x D) [mm] 118 x 119 x 376 Camera
Image Sensor 1/2.7'' Progressive Scan CMOS Lens (mm) 10mm Day Night Yes Day Night Type IR Cut Filter / ICR Video Frame Rate 4MP@25ips Video Resolution 4MP Video Bitrate CBR Constant Bitrate, VBR Variable Bitrate Video Compression H.264, H.265, MJPEG DSP DarkFighter soft Min.Lux color 0.0089 Min.Lux B/W 0.0018 Focal aperture 1.6 Effective Pixels Horizontal 2688 Effective Pixels Verticals 1520 Angle of View max. : Horizontal (°) 84 Lighting
Infrared LEDs Yes Lighting technology EXIR LED LEDs Max. distance (m) 50 LED adjustment Auto, Manual, On/Off Video Audio Input
Audio Audio line entry Built In Functions
Temperature display Yes Analyzes Abandoned Object / removed, Facial, Humans / vehicles, Line Crossing, Penetration area, Region Entrance Detection, Region Exiting Detection, Simple mouvement, Temperature alarm, Temperature measuring (Complete image area), Vagabondage OnVif Yes E-Mail Events, system error Defog No Back Light Compensation area Yes Anti-Flicker Yes Inversion of image Yes Anti-vibration No Privacy Mask YES WDR Wide Dynamic Range 120dB Hardware WDR Events output E-Mail, Output alarm Calendar By event, Daily, Week's days HLC Bright light compensation Yes Hard Disk
Integrated drive Without uSD card u-SD XC 256GB Certifications
Video resolution Full HD, HD, Thermal 384x288 Thermal Camera
Thermal Sensor Vanadium Oxide Uncooled Focal Plane Detectors Thermal resolution 384 x 288 Thermal Field of View 37.7° x 27.7° Temperature measurement range 30 to 45°C Tolerance of temperature measurement +/- 0,5 degree Network
Web Browser Access Internet Explorer Multi-streaming 2 Network Security Digest authentication, HTTPS encryption, IP address filtering, Password protection DDNS HIK-Connect Remote connection 20 Features
Product description Thermal camera with second sensor Darkfighter 4MP 2 separate video streams Accuracy of blackbody scheme is ± 0.3℃ Installation height 2.5 m Face distance for recognition: 7m Basic Informations
End of Life Yes Manufacturer ref. EOL_305401179 Clearance Yes Ptz
PTZ No Panovu
Multi Lense Yes panorama sensor Thermal - Download
-
