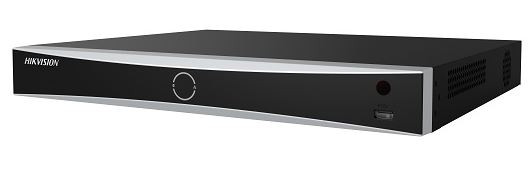

DS-7616NXI-K2(D)(STD)
NVR 16xIP<12MP, 2xSATA,Acusense 4*faces (D)
- Total video channels : 16
- DeepinMind (AI) canals : 4
- DeepinLearning (AI) Analyse : Face recognition, Face capture, Human & vehicle detection, Vehicle recognition
- Optional discs : 2x SATA
- Series : HIK AcuSense
- Warranty : 3 Years
- Manufacturer ref. : 303621206
- Features
-
DS-7616NXI-K2(D)(STD)
- Video Audio input
- Network
- Decoding
- Audio Video output
- Hard disk
- External interface
- Specifications
- Environmental
- Built in functions
- Certifications
- Features
- Camera
- Deep Learning
- Basic informations
- Others
Video Audio Input
Number of IP channels 16 Two Way Audio Input 1-ch, RCA ( 2.0Vp-p , 1kohm ) IP Video Input Maximum Resolution 12MP Video Input Technology IP Total video channels 16 Network
Incoming Bandwidth 160 Outgoing Bandwidth 160 Remote connection 128 Web Browser Access Yes Multi-streaming 2 Network Security HTTPS encryption, IP address filtering, Password protection DDNS HIK-Connect Total LAN ports 1 Decoding
Recording resolution (encoding) 1080p, 3MP, 4 CIF, 4MP, 5MP, 6MP, 720p, 8MP (4K), CIF, vga Decoding capability 1080p, 12 MPixels, 4 MPixels, 8 MPixels Audio Video Output
HDMI Output 1 VGA Output 1 Audio Output 1-ch, RCA (2.0Vp-p , 1Kohm ) Monitor resolution 1080p, 4K CVBS output None LCD monitor No Video Output for 4K 1x HDMI 1.4b Hard Disk
Optional discs 2x SATA HD Capacity 16TB Integrated drive Without External storage NAS redundant recording Yes External Interface

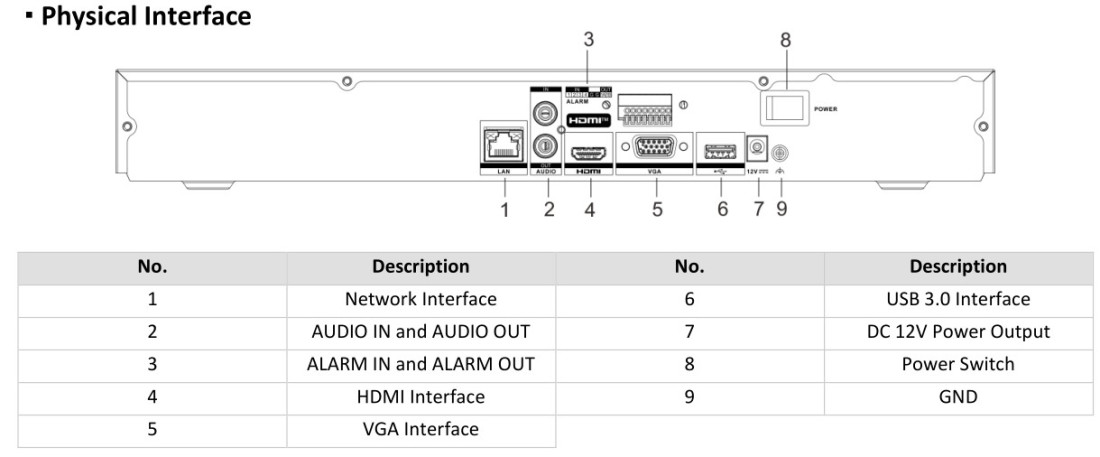

Network Interface 1x RJ-45 10/100/1000 Mbps Ethernet USB Interface 1 x USB Front Pannel, 1 x USB Rear Pannel Alarm Input 4 Alarm output 1 Specifications
Power consumption (W) 15 Power supply 12VDC Signal System HDMI, VGA Warranty 3 Years Environmental

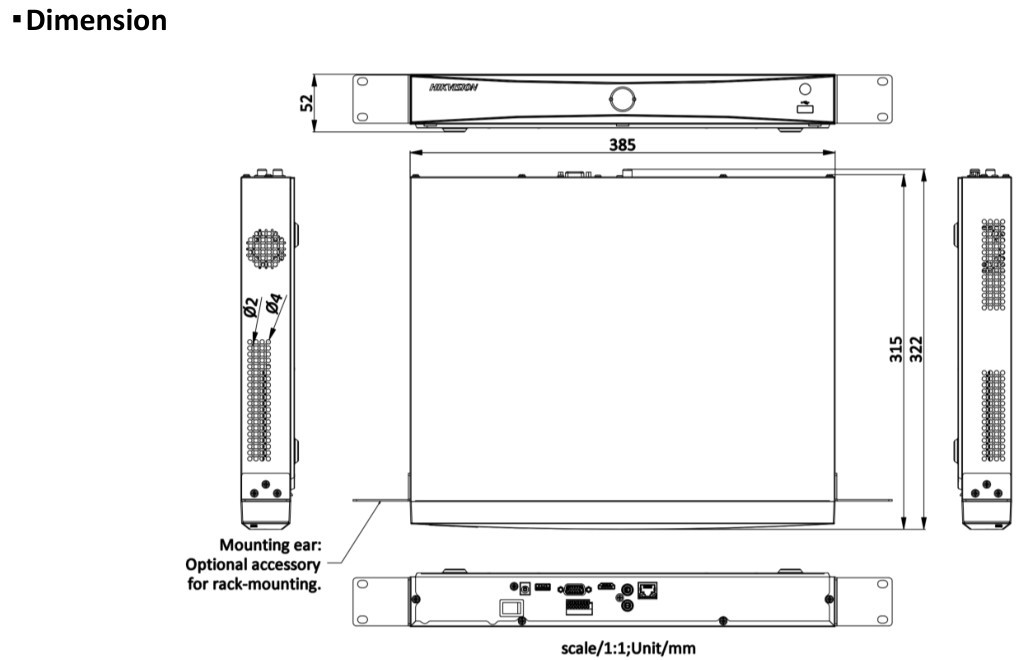

Working Temperature (°C) From -10 to 55 Working Humidity [%] From 10 to 90 Weight 3.04 Chassis 1U Redundant Power Supply No 19" Rack mounting Yes Included in the package 2m Ethernet cable, Mouse, Quick Guide, Remote control Package volume (m3) 0.102 Dimensions (H x W x D) [mm] 52 x 385 x 315 Built In Functions
Analyzes Facial, Facial recognition, Humans / vehicles, Motion Detection Support, Perimeter Protection, Simple mouvement, Vehicles tracking, Video Detection /Human+Vehicles Video analysis in reading Line crossing, Zone penetration E-Mail Events, system error Certifications
Video resolution 4K, Full HD, HD Features
Product description HDMI and VGA and CCTV video output are independent Facial analysis or body analysis Face capture on ≤ 8MP channel and analysis on 4 channels Acusense on 4 channels ≤ 2MP Camera
Video Compression H.264, H.264+, H.265, H.265+ Deep Learning
DeepinLearning (AI) Analyse Face capture, Face recognition, Human & vehicle detection, Vehicle recognition Comparative research Facial search Face picture libraries 16 libraries Face capture channels 4 cameras humans / vehicles capture channels 16 Accusens AI Face / body NVR: facial or body Basic Informations
EAN Code 6942160489834 Manufacturer ref. 303621206 Others
DeepinMind (AI) canals 4 - Download
-
