DS-7732NI-M4
NVR 8K 32xIP/32MP 4xSATA 320Mbps
- Number of IP channels : 32
- Optional discs : 4x SATA
- Analyzes : depending on the Hikvision camera
- Alarm Input : 16
- Warranty : 3 Years
- Manufacturer ref. : 303616304
- Features
-
DS-7732NI-M4
- Video Audio input
- Network
- Audio Video output
- Decoding
- Hard disk
- RAID
- External interface
- Specifications
- Environmental
- poe
- Built in functions
- Certifications
- Wifi
- Camera
- Basic informations
Video Audio Input
Number of IP channels 32 Two Way Audio Input 1-ch, RCA ( 2.0Vp-p , 1kohm ) IP Video Input Maximum Resolution 32 MP Video Input Technology IP Total video channels 32 Network
Incoming Bandwidth 320 Outgoing Bandwidth 400 Remote connection 128 Web Browser Access Google Chrome, Internet Explorer, Without plugin Multi-streaming 2 Network Security HTTPS encryption, IP address filtering, Password protection DDNS DynDNS, HIK-Connect Total LAN ports 2 Audio Video Output
Monitor resolution 1080p, 4K, 8K HDMI Output 2 VGA Output 1 Audio Output 1-ch, RCA (2.0Vp-p , 1Kohm ) CVBS output 1-ch BNC (1,0 Vp-p, 75ohm) Video Output for 4K 2x HDMI LCD monitor No Decoding
Decoding capability 16 simultaneous channels, 64MP Hard Disk
Optional discs 4x SATA HD Capacity 14TB Integrated drive Without External storage NAS redundant recording No RAID
RAID Type No External Interface
Network Interface 2x RJ-45 10/100/1000 Mbps Ethernet USB Interface 1 x USB Rear Pannel, 2 x USB Front Pannel Alarm Input 16 Alarm output 9 Serial interface RS232, RS485 RS Communication Protocol HIKVISION-C, PELCO-D, Pelco P Specifications
Power consumption (W) 15 Power supply 100 - 240VAC Signal System CCTV, HDMI, HDMI 4K, HDMI 8K, IP, VGA Warranty 3 Years Environmental

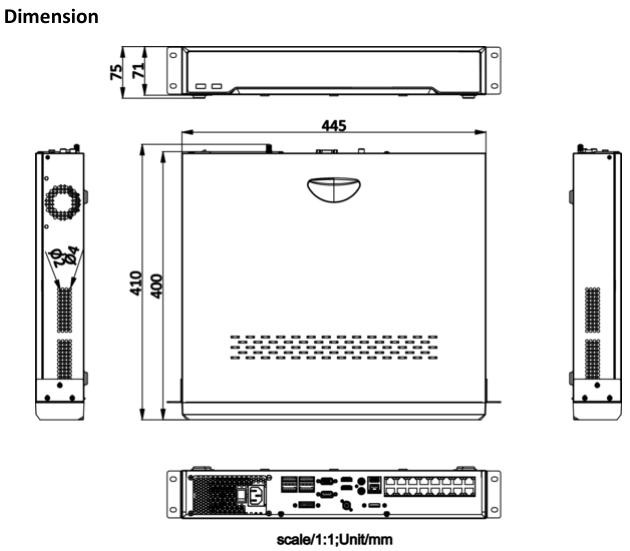

Working Temperature (°C) From -10 to 55 Max. Working Humidity [%] 90 Chassis 19-inch Rack-mount 1.5U Redundant Power Supply No 19" Rack mounting Yes Included in the package Brackets 19 '', Mouse, Quick Guide Dimensions (H x W x D) [mm] 75 x 445 x 400 Poe
POE Interface None Built In Functions
Analyzes depending on the Hikvision camera E-Mail Events, system error Calendar Daily, Holidays, Working days Certifications
Video resolution 4K, 8K, Full HD, HD Wifi
WiFi No Camera
Video Compression H.264, H.264+, H.265, H.265+ Basic Informations
EAN Code 6931847173012 Manufacturer ref. 303616304 - Download
-
DS-7732NI-M4
Manufacturer data
View this article on the manufacturer's page : https://www.hikvision.com/en/products/IP-Products/Network-Video-Recorders/Ultra-Series/ds-7732ni-m4/
