DS-9664NI-M8/R(STD)
NVR 8K 64xIP/32MP 8xSATA Redundant PS
- Number of IP channels : 64
- Optional discs : 8x SATA
- Analyzes : depending on the Hikvision camera
- Alarm Input : 16
- Warranty : 5 Years
- Manufacturer ref. : 303616635
- Features
-
DS-9664NI-M8/R(STD)
- Video Audio input
- Network
- Audio Video output
- Decoding
- Hard disk
- RAID
- External interface
- Specifications
- Environmental
- Built in functions
- Certifications
- Features
- Wifi
- Camera
- Basic informations
Video Audio Input
Number of IP channels 64 Two Way Audio Input 1-ch, RCA ( 2.0Vp-p , 1kohm ) IP Video Input Maximum Resolution 32 MP Video Input Technology IP Total video channels 64 Network
Incoming Bandwidth 400 Outgoing Bandwidth 400 Remote connection 128 Web Browser Access Google Chrome, Internet Explorer, Without plugin Multi-streaming 2 Network Security HTTPS encryption, IP address filtering, Password protection DDNS HIK-Connect Total LAN ports 2 Audio Video Output
Monitor resolution 1080p, 4K, 8K HDMI Output 2 VGA Output 2 Audio Output 2-ch, BNC ( Linear , 600ohm ) CVBS output 1-ch BNC (1,0 Vp-p, 75ohm) Video Output for 4K 2x HDMI LCD monitor No Decoding
Decoding capability 80MP Hard Disk
Optional discs 8x SATA eSATA 1 HD Capacity 14TB Integrated drive Without External storage NAS redundant recording Yes RAID
RAID Type RAID 0, RAID 1, RAID 10, RAID 5, RAID 6 External Interface

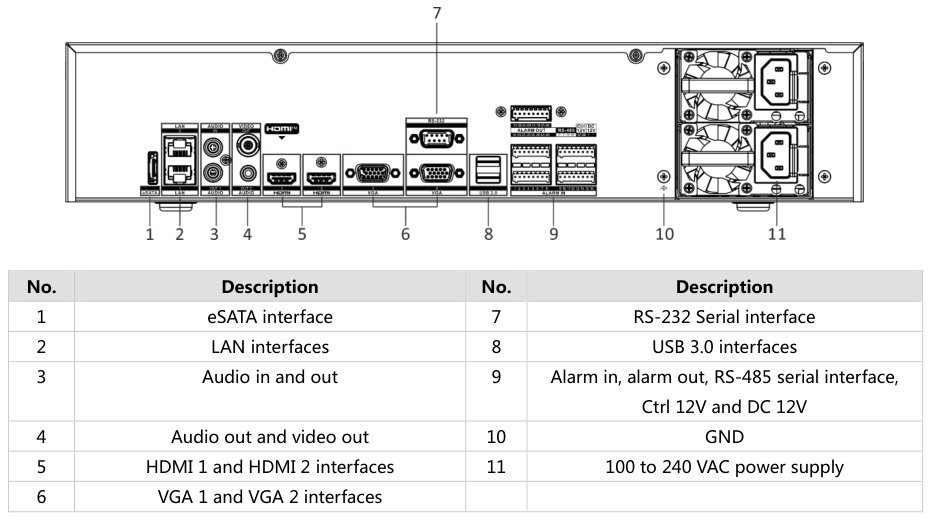

Network Interface 2x RJ-45 10/100/1000 Mbps Ethernet USB Interface 2 x USB Front Pannel, 2 x USB Rear Pannel Alarm Input 16 Alarm output 9 Serial interface RS232, RS485 RS Communication Protocol HIKVISION-C, PELCO-D, Pelco-P Specifications
Power consumption (W) 50 Power supply 230VAC Signal System HDMI, HDMI 4K, HDMI 8K, IP, VGA Warranty 5 Years Environmental

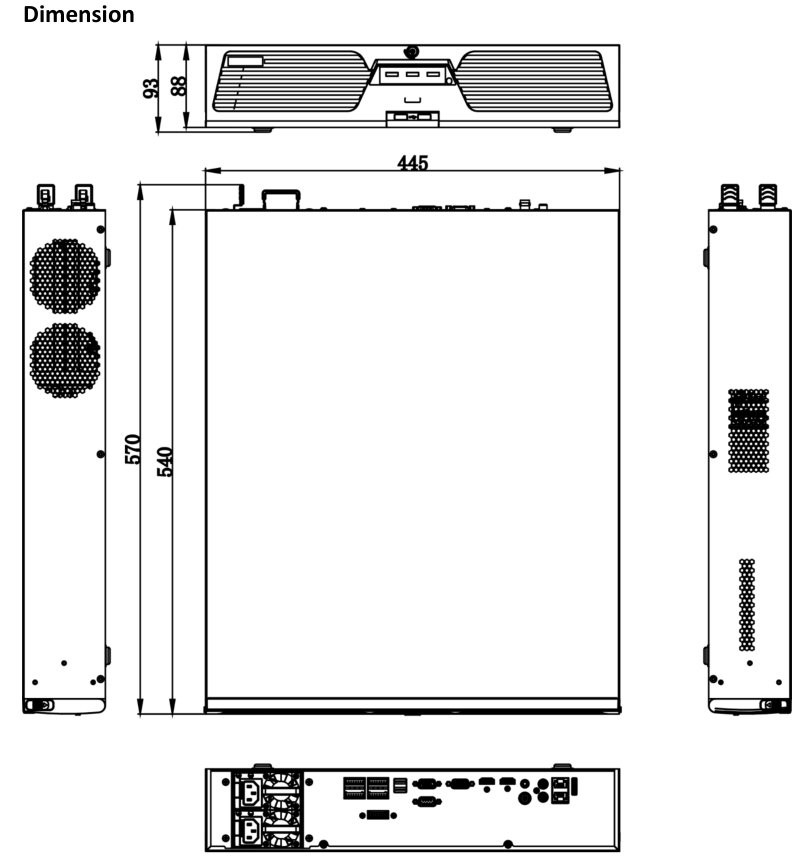

Working Temperature (°C) From -10 to 55 Max. Working Humidity [%] 90 Chassis 19-inch Rack-mount 2U Redundant Power Supply Yes 19" Rack mounting Yes Included in the package Brackets 19 '' Dimensions (H x W x D) [mm] 93 x 445 x 475 Built In Functions
Analyzes depending on the Hikvision camera E-Mail Events, system error Calendar By event, Daily, Holidays, Week's days Video analysis in reading Line crossing, Zone penetration Certifications
Video resolution 4K, 8K, Full HD, HD Features
Product description RAID: Minimum configuration of 4TB per disk
Output 9 delivers 12V/1A on alarm.
Wifi
WiFi No Camera
Video Compression H.264, H.264+, H.265, H.265+ Basic Informations
EAN Code 6931847183523 Manufacturer ref. 303616635 - Download
-
DS-9664NI-M8/R(STD)
Manufacturer data
View this article on the manufacturer's page : https://www.hikvision.com/en/products/IP-Products/Network-Video-Recorders/Ultra-Series/ds-9664ni-m8-r/
