DS-D5B86RB/EL

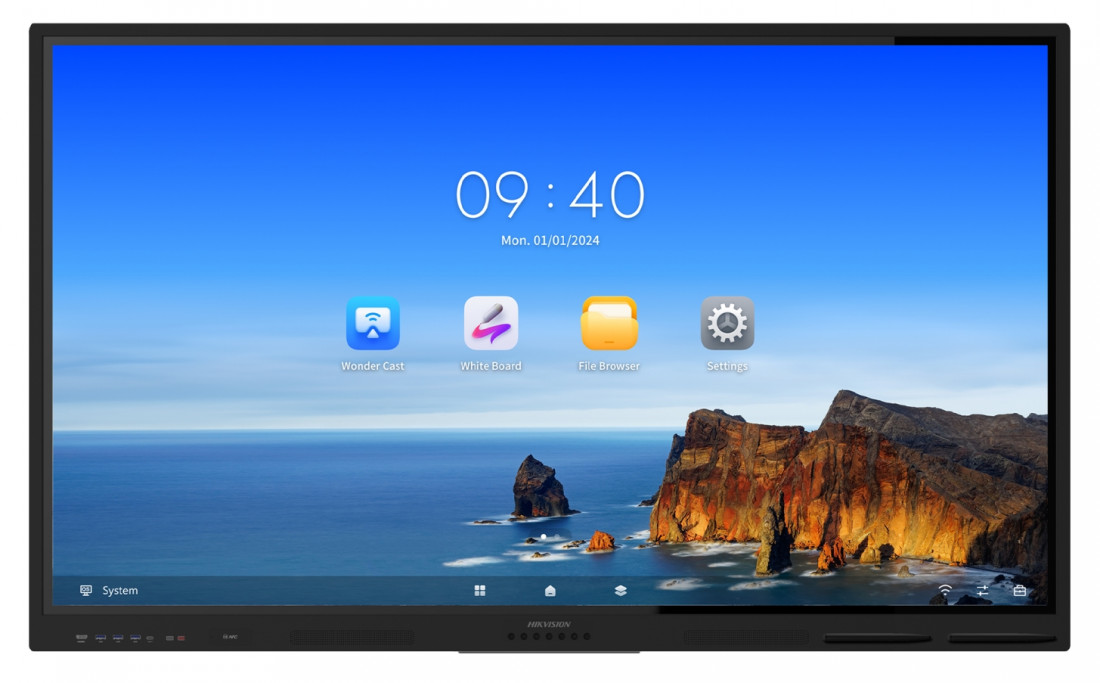

86" (218cm) Interactive tablet 4K / Conference
![DS-D5B86RB/EL, HIKVISION, Display, Videosurveillance, Network & IT, Power supply : 100 - 240VAC, Signal System : HDMI, Max display resolution [px] : 4K / 3840 x 2160, Screen size : 86" (218cm), Warranty : 3 Years, Manufacturer ref. : 321000679,](https://www.dema.ch/media/catalog/product/cache/4/thumbnail/75x/9df78eab33525d08d6e5fb8d27136e95/1/9/1976013456-1.jpg "HIKVISION DS-D5B86RB/EL 86\" (218cm) Interactive tablet 4K / Conference, Videosurveillance, Network & IT, Display, Display, HIKVISION")
![DS-D5B86RB/EL, HIKVISION, Display, Videosurveillance, Network & IT, Power supply : 100 - 240VAC, Signal System : HDMI, Max display resolution [px] : 4K / 3840 x 2160, Screen size : 86" (218cm), Warranty : 3 Years, Manufacturer ref. : 321000679,](https://www.dema.ch/media/catalog/product/cache/4/thumbnail/75x/9df78eab33525d08d6e5fb8d27136e95/1/9/1976013456-2.jpg "HIKVISION DS-D5B86RB/EL 86\" (218cm) Interactive tablet 4K / Conference, Videosurveillance, Network & IT, Display, Display, HIKVISION")
![DS-D5B86RB/EL, HIKVISION, Display, Videosurveillance, Network & IT, Power supply : 100 - 240VAC, Signal System : HDMI, Max display resolution [px] : 4K / 3840 x 2160, Screen size : 86" (218cm), Warranty : 3 Years, Manufacturer ref. : 321000679,](https://www.dema.ch/media/catalog/product/cache/4/image/1100x/040ec09b1e35df139433887a97daa66f/1/9/1976013456-1.jpg "HIKVISION DS-D5B86RB/EL 86\" (218cm) Interactive tablet 4K / Conference, Videosurveillance, Network & IT, Display, Display, HIKVISION")
![DS-D5B86RB/EL, HIKVISION, Display, Videosurveillance, Network & IT, Power supply : 100 - 240VAC, Signal System : HDMI, Max display resolution [px] : 4K / 3840 x 2160, Screen size : 86" (218cm), Warranty : 3 Years, Manufacturer ref. : 321000679,](https://www.dema.ch/media/catalog/product/cache/4/image/1100x/040ec09b1e35df139433887a97daa66f/1/9/1976013456-2.jpg "HIKVISION DS-D5B86RB/EL 86\" (218cm) Interactive tablet 4K / Conference, Videosurveillance, Network & IT, Display, Display, HIKVISION")
- Power supply : 100 - 240VAC
- Signal System : HDMI
- Max display resolution [px] : 4K / 3840 x 2160
- Screen size : 86" (218cm)
- Warranty : 3 Years
- Manufacturer ref. : 321000679
- Features
-
DS-D5B86RB/EL
- Audio Video output
- External interface
- Specifications
- Environmental
- Screen
- Certifications
- Video Audio input
- Basic informations
Audio Video Output
Audio Output Internal speaker and speaker output Internal speaker 2x 20W CVBS output None External Interface
USB Interface USB 3.0 × 3, USB 2.0 × 2, Type-C × 1 Remote control No Specifications
Power consumption (W) 326 Power supply 100 - 240VAC Signal System HDMI Touchscreen Yes VESA Standard 800 mm × 600 mm Digital Signage No Warranty 3 Years Environmental

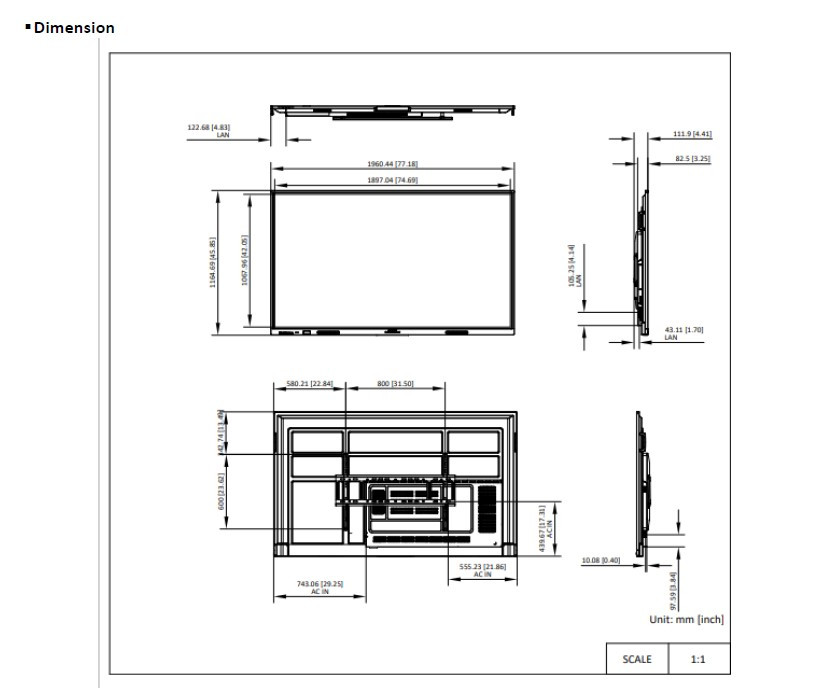

Working Temperature (°C) From 0 to 40 Working Humidity [%] From 10 to 90 Weather Proof IP Rating 22 Material Plastic Colour Black Dimensions (H x W x D) [mm] 1164.69 x 1960.44 x 82.5 Screen
Backlight type DLED Screen size 86" (218cm) Max display resolution [px] 4K / 3840 x 2160 Brightness 400 cd/m2 Contrast Ratio 5000:1 Colors displayed 16.7 Millions Response time [ms] 5 Viewing angle (H/V) 178° / 178° Protection glass No Certifications
Video resolution 4K Video Audio Input
Video inputs monitors 2x HDMI Audio in 1 Basic Informations
Manufacturer ref. 321000679 - Download
-
DS-D5B86RB/EL
Manufacturer data
View this article on the manufacturer's page : https://display.hikvision.com/display-en/products/interactive-flat-panel-display/interactive-flat-panels/value-series/ds-d5b86rb-el/?q=ds-d5b86rb-el&pageNum=1&position=1&hiksearch=true
