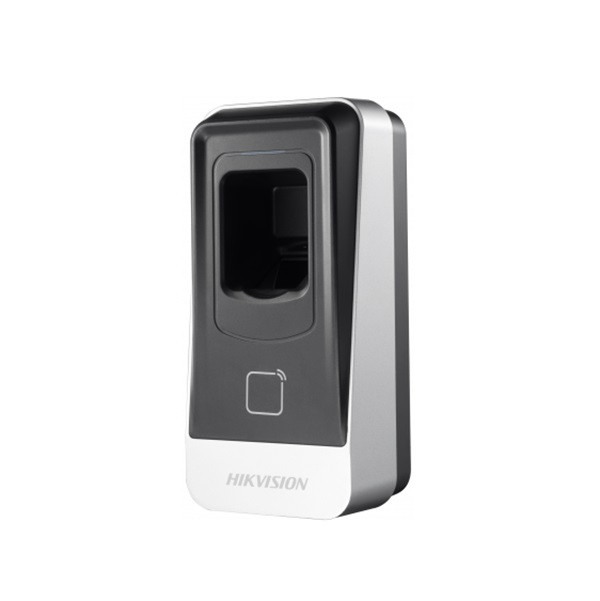

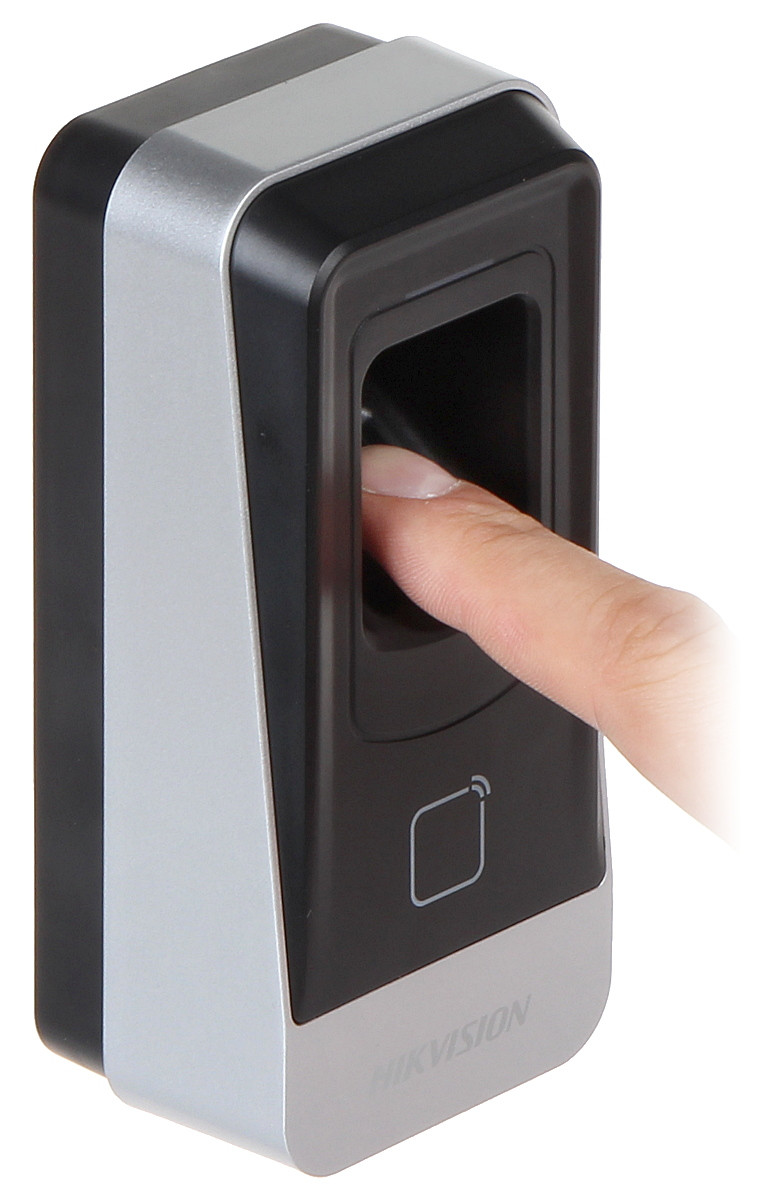

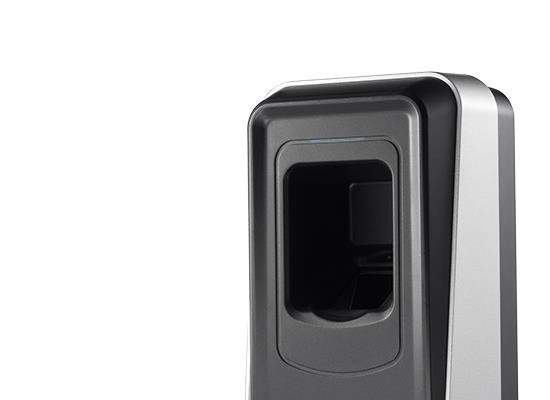

DS-K1201AMF

Fingerprint and card reader

DS-K1201AMF, HIKVISION, Biometric readers, Proximity readers, Access Control, Card reader format : ISO/IEC 14443A, Weather Proof IP Rating : 65, Wiegand interface : 26 bits, 32 bits, Keypad : None, Type of card reader : NFC, MiFare 13.56MHz 1K/4K, Warranty : 3 Years, Manufacturer ref. : 302918053, DS-K1201AMF, HIKVISION, Biometric readers, Proximity readers, Access Control, Card reader format : ISO/IEC 14443A, Weather Proof IP Rating : 65, Wiegand interface : 26 bits, 32 bits, Keypad : None, Type of card reader : NFC, MiFare 13.56MHz 1K/4K, Warranty : 3 Years, Manufacturer ref. : 302918053, DS-K1201AMF, HIKVISION, Biometric readers, Proximity readers, Access Control, Card reader format : ISO/IEC 14443A, Weather Proof IP Rating : 65, Wiegand interface : 26 bits, 32 bits, Keypad : None, Type of card reader : NFC, MiFare 13.56MHz 1K/4K, Warranty : 3 Years, Manufacturer ref. : 302918053, DS-K1201AMF, HIKVISION, Biometric readers, Proximity readers, Access Control, Card reader format : ISO/IEC 14443A, Weather Proof IP Rating : 65, Wiegand interface : 26 bits, 32 bits, Keypad : None, Type of card reader : NFC, MiFare 13.56MHz 1K/4K, Warranty : 3 Years, Manufacturer ref. : 302918053, DS-K1201AMF, HIKVISION, Biometric readers, Proximity readers, Access Control, Card reader format : ISO/IEC 14443A, Weather Proof IP Rating : 65, Wiegand interface : 26 bits, 32 bits, Keypad : None, Type of card reader : NFC, MiFare 13.56MHz 1K/4K, Warranty : 3 Years, Manufacturer ref. : 302918053, DS-K1201AMF, HIKVISION, Biometric readers, Proximity readers, Access Control, Card reader format : ISO/IEC 14443A, Weather Proof IP Rating : 65, Wiegand interface : 26 bits, 32 bits, Keypad : None, Type of card reader : NFC, MiFare 13.56MHz 1K/4K, Warranty : 3 Years, Manufacturer ref. : 302918053, DS-K1201AMF, HIKVISION, Biometric readers, Proximity readers, Access Control, Card reader format : ISO/IEC 14443A, Weather Proof IP Rating : 65, Wiegand interface : 26 bits, 32 bits, Keypad : None, Type of card reader : NFC, MiFare 13.56MHz 1K/4K, Warranty : 3 Years, Manufacturer ref. : 302918053,

  • Card reader format : ISO/IEC 14443A
  • Weather Proof IP Rating : 65
  • Wiegand interface : 26 bits, 32 bits
  • Keypad : None
  • Type of card reader : NFC, MiFare 13.56MHz 1K/4K
  • Warranty : 3 Years
  • Manufacturer ref. : 302918053

Features

DS-K1201AMF

External Interface

Serial interface RS485
Wiegand interface 26 bits, 32 bits

Environmental

Working Temperature (°C) From -40 to 70
Weather Proof IP Rating 65
Mounting Surface, Wall
Package volume (m3) 0.0026
Dimensions (H x W x D) [mm] 132 x 62 x 44

Specifications

Power supply 12VDC
Integrated buzzer Yes
LED display 1 LED Multicolor
Reading range [cm] 100
Card technology MiFare 1K/4K 13.56MHz, NFC
Tamper contact NC
Vandal proof No
Keypad None
Warranty 3 Years

Tag Reader

Card reader format ISO/IEC 14443A
Type of card reader MiFare 13.56MHz 1K/4K, NFC

Biometrics

Biometric identification Fingerprint
Recognition speed 1

Features

Max. amount of persons (PIN, card, finger, face, ...) 5000

Basic Informations

EAN Code 6941264094494
Manufacturer ref. 302918053
