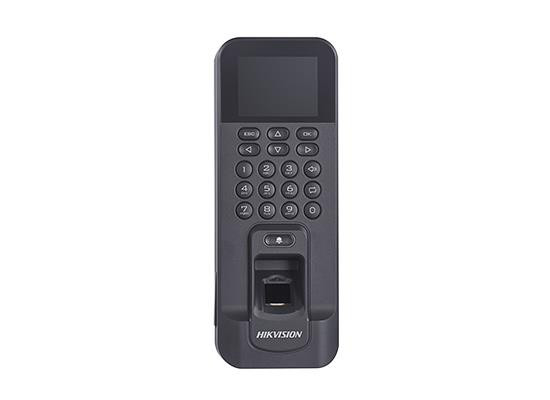

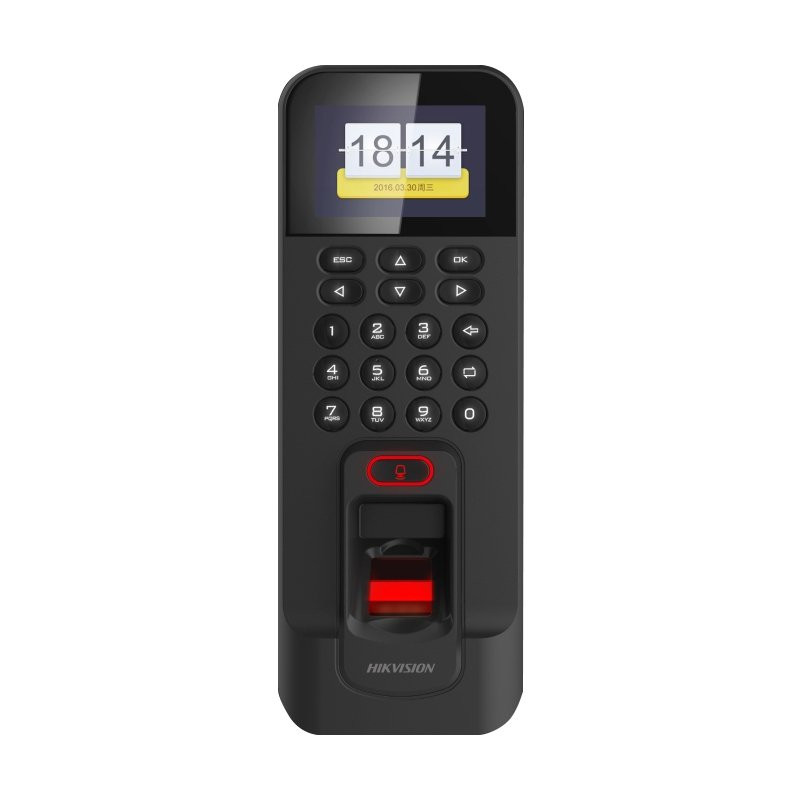

DS-K1T804BMF
Fingerprint Access control terminal+TNA
- POE Interface : None
- Network Interface : 1x RJ-45 10/100 Mbps Ethernet
- Supervision software compatibility : iVMS-4200
- Biometric identification : Fingerprint
- LCD display : 2.5" Color
- Manufacturer ref. : 302918016
- Features
-
DS-K1T804BMF
- Lighting
- Intercom
- Built in functions
- External interface
- Specifications
- Basic informations
- poe
- Network
- Environmental
- Video Audio input
- Wifi
- Biometrics
- Audio Video output
- Specific Intercom function
- Specific function Access control
Lighting
Infrared LEDs No White LEDs No Intercom
SIP & VoIP Services No Built In Functions
OnVif No External Interface
Bluetooth No Network Interface 1x RJ-45 10/100 Mbps Ethernet Serial interface RS485 (HIK) USB Interface 1x USB (HIK debog) Wiegand interface 1x In + 1x Out Alarm Input 1 Alarm output 1 Number of inputs 1 door control button, 1 output button Number of relay outputs 1 strike plate Specifications
Intercom function No Image memory No SD slot No Voice messages No Call forwarding to phone No Power supply 12VDC Keypad Yes Language Multilingual, without french Card technology MiFare 1K/4K 13.56MHz Warranty 3 Years Supervision software compatibility iVMS-4200 Power consumption (W) 10 LCD display 2.5" Color Strike power supply No Customisation of the interface No iOS & Android Apps compatibility No Touchscreen No Basic Informations
EAN Code 6941264092742 Manufacturer ref. 302918016 Poe
POE Interface None Network
Web Browser Access No Network Protocols DHCP, HTTP, HTTPS, ISAPI, ISUP, SNMP, TCP/IP Mobile network No Environmental
Mounting Surface Colour Black Tamper Back contact Working Temperature (°C) From -10 to 55 Working Humidity [%] From 10 to 90 Weather Proof IP Rating 54 IK Shock Rating 6 Material Polycarbonate Dimensions (H x W x D) [mm] 205 x 76.5 x 32 Video Audio Input
Audio in None Wifi
WiFi No Biometrics
Biometric identification Fingerprint Fingerprint sensor type Capacitive Audio Video Output
Audio Output Speaker integrated Specific Intercom Function
Physical call button No SIP management No Configurable call list No Configurable call calendar No Device Management Ready On Board No Configurable call diversion No Call group No Slave doorphone management (SubDoorCapacity) No Volume control Loudspeaker Voice Prompt Deactivatable No Specific Function Access Control
Controller No SecureDoor module No Remote card reader No Elevator module No External module None Configurable access schedule Yes Multiple simultaneous authentication Yes Differential door relay No Individual time management No Number of users (minimum) 3000 - Download
-
