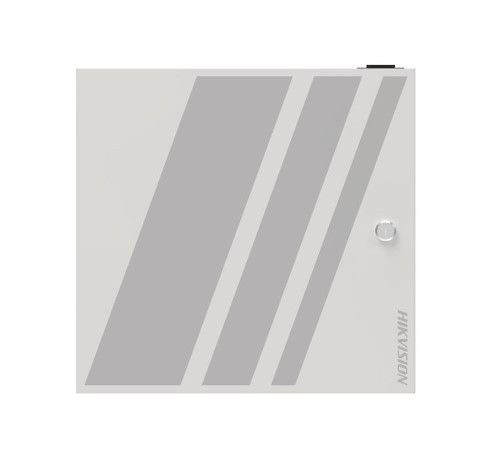

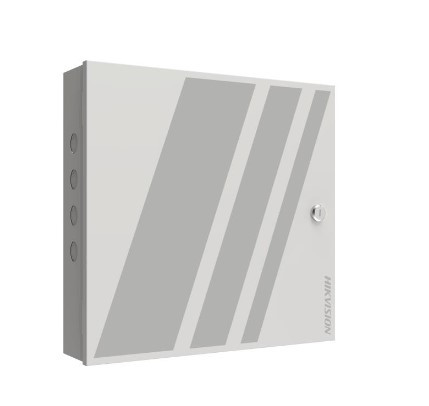

DS-K2704X
4 doors / 8 readers controller
- Enclosure : Aluminium
- Event log : 600000
- Users max. : 100000
- Warranty : 3 Years
- Manufacturer ref. : 302920535
- Features
-
DS-K2704X
Specifications
Macros and/or advanced functions Yes Degraded mode Yes Software compatibility HIK Central, iVMS-4200 Voltage supply max [VDC] 12 Users max. 100000 Current max [mA] 1 Event log 600000 Warranty 3 Years External Interface
Serial interface RS485 Wiegand interface 26 bits, 34 bits Alarm Input 4 Alarm output 4 Environmental

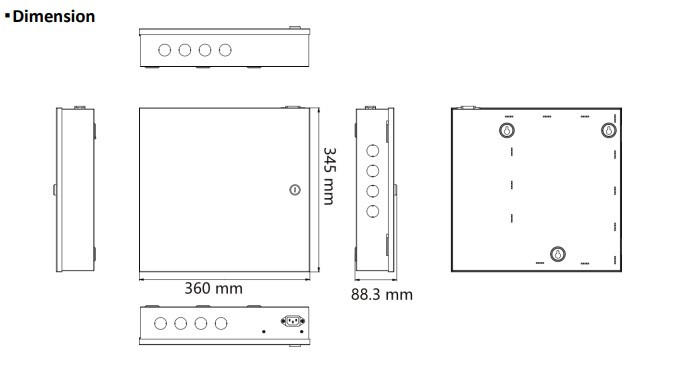

Enclosure Aluminium Tamper Lid contact Working Temperature (°C) From -20 to 65 Working Humidity [%] From 10 to 90 Dimensions (H x W x D) [mm] 345 x 370 x 90 Network
IP Ethernet RJ45 integrated on mainboard Network Protocols EHOME 5.0, ISAPI Features
Alarms and events No Basic Informations
EAN Code 6942160449135 Manufacturer ref. 302920535 - Download
-
DS-K2704X
PDFS
Programs
By clicking on the next link, you get access to our downloading page of all the softwares and drivers of our range and categories of products
Can't find what you're looking for ? Contact us !
