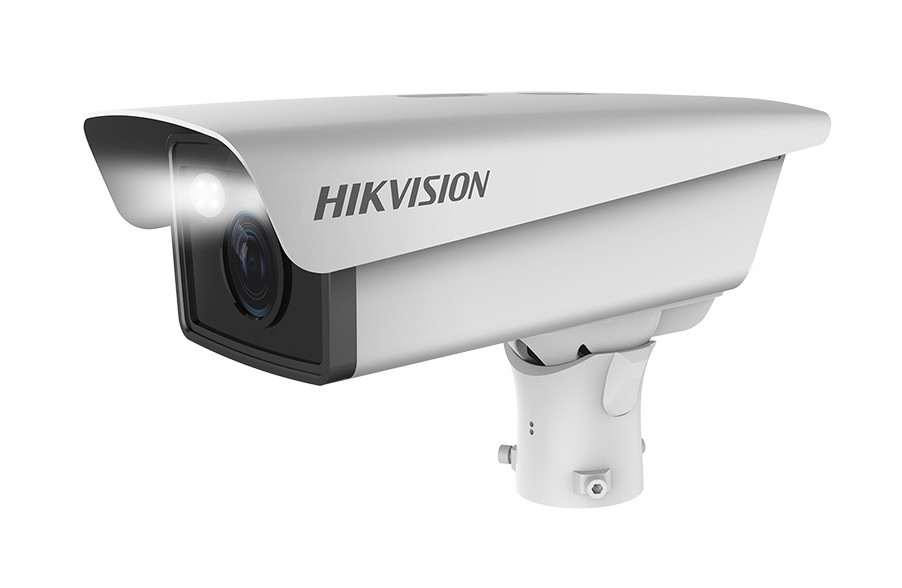

DS-TCG405-E(12V/Poe)

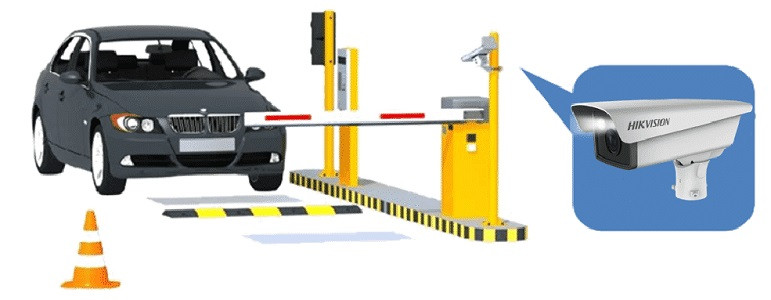

Anpr camera 1-2 lanes
- Weather Proof IP Rating : 67
- Series : Parking Management, Special IP Cameras, HIK DarkFighter, LPR, HIK DeepinView
- Min.Lux color : 0.022
- Warranty : 3 Years
- Manufacturer ref. : 315101024
- Features
-
DS-TCG405-E(12V/Poe)
- Network
- Audio Video output
- External interface
- Specifications
- Environmental
- Camera
- Camera menu
- Built in functions
- Lighting
- Video Audio input
- Hard disk
- Certifications
- Deep Learning
- Basic informations
Network
Remote connection 20 Web Browser Access Firefox, Google Chrome, Internet Explorer, MS-Edge, Safari, Without plugin Multi-streaming 5 Network Security HTTPS encryption, IP address filtering, Password protection Network Protocols Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, TCP/IP, UDP, UPnP Audio Video Output
Audio Output 1 Audio output CVBS output None Two-way audio No External Interface
Alarm Input 3 Alarm output 2 Reset Button No Specifications
Power consumption (W) 22 Power supply 12VDC, POE+ Signal System IP Warranty 3 Years Environmental

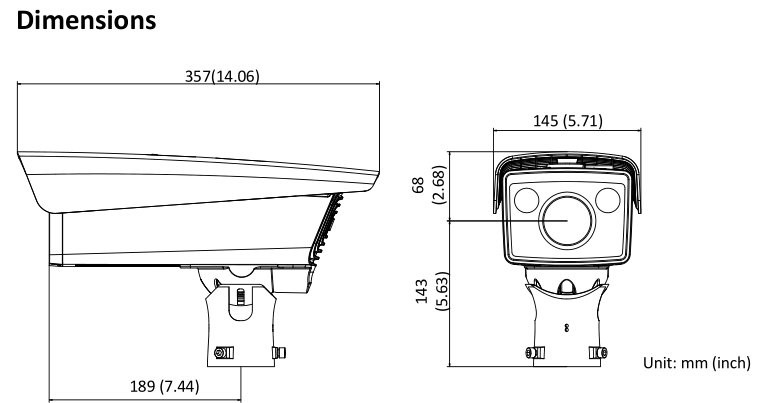

Working Temperature (°C) From -25 to 70 Max. Working Humidity [%] 90 Weather Proof IP Rating 67 Form Factor Bullet IK Shock Rating 10 Material Metal Mounting Ceiling, Parapet, Pole mount, Surface, Wall Connectors Intern Heater No Dimensions (H x W x D) [mm] 211 x 145 x 357 Camera
Image Sensor 1/3'' Progressive Scan CMOS Effective Pixels Horizontal 2688 Effective Pixels Verticals 1520 Minimum Shutter time 1/100'000s Maximum Shutter time 1/30s Lens (mm) 3-6mm Day Night Yes Day Night Type IR Cut Filter / ICR Video Frame Rate 4MP@25ips Video Resolution 4MP Video Bitrate CBR Constant Bitrate, VBR Variable Bitrate Video Compression H.264, H.264+, H.265, H.265+ Lens Type Motorised zoom, Variable focus DSP DarkFighter Hardware Min.Lux color 0.022 Min.Lux B/W 0.011 Focal aperture 1.2 Focus Auto-Focus, Manual Camera Menu
D/N Mode Auto, BW, Color, Schedule Built In Functions
Privacy Mask YES Back Light Compensation area Yes Anti-Flicker Yes Inversion of image Yes WDR Wide Dynamic Range 120dB Analyzes Line Crossing, Vehicles tracking Events output Output alarm OnVif Yes E-Mail Events, system error Calendar By event, Week's days Anti-vibration Yes Defog No Embedded statistics License plates HLC Bright light compensation Yes Event Management Incoming Alarm input Lighting
Lighting technology EXIR LED LED adjustment Auto, Central & wide beam, Manual, On/Off Video Audio Input
Audio No Hard Disk
External storage NAS uSD card u-SD XC 128GB Certifications
Video resolution Full HD, HD Deep Learning
DeepinLearning (AI) Analyse Licence plate Basic Informations
Manufacturer ref. 315101024 - Download
-
