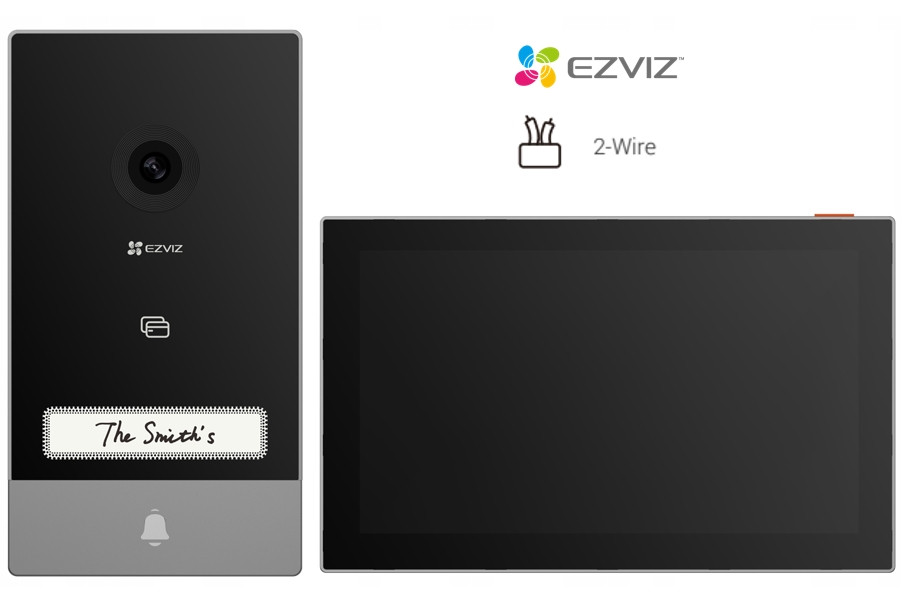

HP7

155° WiFi camera door bell + monitor

HP7, EZVIZ, Videosurveillance, LEDs Max. distance (m) : 6, Weather Proof IP Rating : 65, IK Shock Rating : no AV, Angle of View max. : Horizontal (°) : 162, Analyzes : Video Detection /Human+Vehicles, Warranty : 2 Years, Manufacturer ref. : 318500138, HP7, EZVIZ, Videosurveillance, LEDs Max. distance (m) : 6, Weather Proof IP Rating : 65, IK Shock Rating : no AV, Angle of View max. : Horizontal (°) : 162, Analyzes : Video Detection /Human+Vehicles, Warranty : 2 Years, Manufacturer ref. : 318500138, HP7, EZVIZ, Videosurveillance, LEDs Max. distance (m) : 6, Weather Proof IP Rating : 65, IK Shock Rating : no AV, Angle of View max. : Horizontal (°) : 162, Analyzes : Video Detection /Human+Vehicles, Warranty : 2 Years, Manufacturer ref. : 318500138, HP7, EZVIZ, Videosurveillance, LEDs Max. distance (m) : 6, Weather Proof IP Rating : 65, IK Shock Rating : no AV, Angle of View max. : Horizontal (°) : 162, Analyzes : Video Detection /Human+Vehicles, Warranty : 2 Years, Manufacturer ref. : 318500138,

  • LEDs Max. distance (m) : 6
  • Weather Proof IP Rating : 65
  • IK Shock Rating : no AV
  • Angle of View max. : Horizontal (°) : 162
  • Analyzes : Video Detection /Human+Vehicles
  • Warranty : 2 Years
  • Manufacturer ref. : 318500138

Features

HP7

Camera

Day Night Yes
Video Resolution 3MP
Lens Type Fix
Focus Fix
Effective Pixels Horizontal 2048
Effective Pixels Verticals 1296
Angle of View max. : Horizontal (°) 162
Focal aperture 2.2
Image Sensor 1/2.7'' Progressive Scan CMOS
Lens (mm) 2mm
Day Night Type IR Cut Filter / ICR

Built In Functions

Back Light Compensation area Yes
Anti-Flicker No
Inversion of image No
Anti-vibration No
Defog No
OnVif No
Analyzes Video Detection /Human+Vehicles
HLC Bright light compensation Yes

Lighting

Infrared LEDs Yes
White LEDs No
LEDs Max. distance (m) 6
Lighting technology IR LED
LED adjustment Auto

Environmental

Heater No
Mounting Wall
Colour Black, Silver
Weight 0.855
Working Temperature (°C) From -30 to 60
Max. Working Humidity [%] 95
Weather Proof IP Rating 65
Form Factor None
IK Shock Rating not IK10
Material Aluminium and plastic

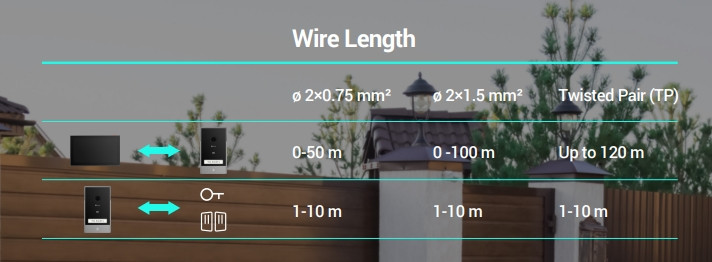

Connectors 2 Wires

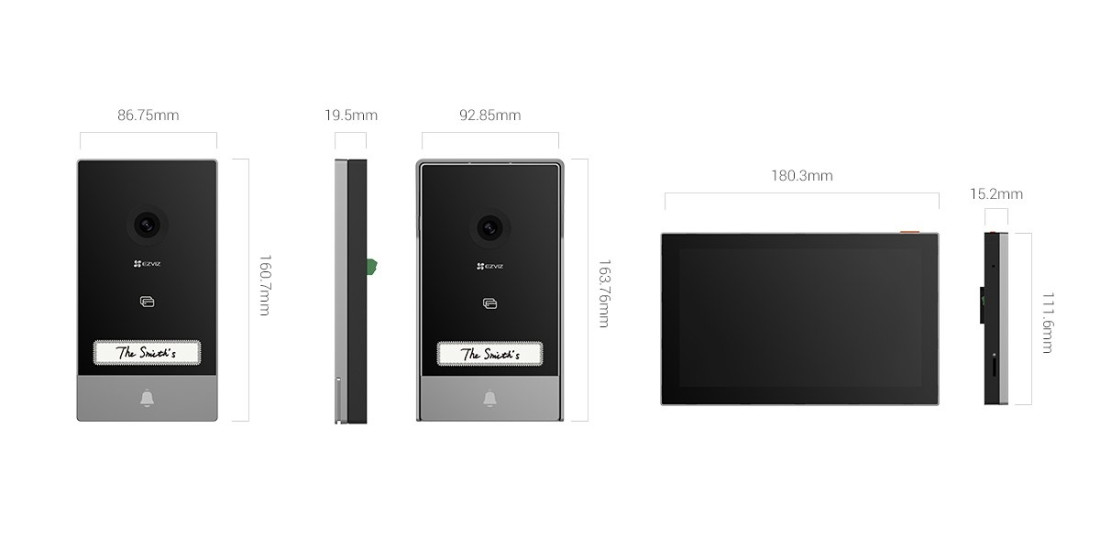

Dimensions (H x W x D) [mm] 161 x 87 x 20

External Interface

Reset Button Yes

Specifications

Power supply 24VDC
Power consumption (W) 24
Warranty 2 Years

Camera Menu

D/N Mode Auto

Video Audio Input

Audio Microphone

Hard Disk

Integrated drive Without
uSD card u-SD XC 512GB

Certifications

Video resolution 3MP

Wifi

WiFi 2.4GHz
WiFi Yes

Audio Video Output

Audio Output HD speaker integrated
CVBS output None

Basic Informations

Manufacturer ref. 318500138
