iDS-2CD5T47G2/V-XHSY(4mm)(O-STD)

Bullet 4MP 4mm IR80 IP67 IK10 + AI GUANLAN

iDS-2CD5T47G2/V-XHSY(4mm)(O-STD), HIKVISION, Bulletcameras, Videosurveillance, LEDs Max. distance (m) : 80, Angle of View max. : Horizontal (°) : 89, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK DeepinView, Min.Lux color : 0.0014, Warranty : 5 Years, Manufacturer ref. : 311332023, iDS-2CD5T47G2/V-XHSY(4mm)(O-STD), HIKVISION, Bulletcameras, Videosurveillance, LEDs Max. distance (m) : 80, Angle of View max. : Horizontal (°) : 89, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK DeepinView, Min.Lux color : 0.0014, Warranty : 5 Years, Manufacturer ref. : 311332023, iDS-2CD5T47G2/V-XHSY(4mm)(O-STD), HIKVISION, Bulletcameras, Videosurveillance, LEDs Max. distance (m) : 80, Angle of View max. : Horizontal (°) : 89, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK DeepinView, Min.Lux color : 0.0014, Warranty : 5 Years, Manufacturer ref. : 311332023, iDS-2CD5T47G2/V-XHSY(4mm)(O-STD), HIKVISION, Bulletcameras, Videosurveillance, LEDs Max. distance (m) : 80, Angle of View max. : Horizontal (°) : 89, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK DeepinView, Min.Lux color : 0.0014, Warranty : 5 Years, Manufacturer ref. : 311332023, iDS-2CD5T47G2/V-XHSY(4mm)(O-STD), HIKVISION, Bulletcameras, Videosurveillance, LEDs Max. distance (m) : 80, Angle of View max. : Horizontal (°) : 89, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK DeepinView, Min.Lux color : 0.0014, Warranty : 5 Years, Manufacturer ref. : 311332023, iDS-2CD5T47G2/V-XHSY(4mm)(O-STD), HIKVISION, Bulletcameras, Videosurveillance, LEDs Max. distance (m) : 80, Angle of View max. : Horizontal (°) : 89, Weather Proof IP Rating : 67, Series : Anti-corrosion, HIK DeepinView, Min.Lux color : 0.0014, Warranty : 5 Years, Manufacturer ref. : 311332023,

  • LEDs Max. distance (m) : 80
  • Angle of View max. : Horizontal (°) : 89
  • Weather Proof IP Rating : 67
  • Series : Anti-corrosion, HIK DeepinView
  • Min.Lux color : 0.0014
  • Warranty : 5 Years
  • Manufacturer ref. : 311332023

Features

iDS-2CD5T47G2/V-XHSY(4mm)(O-STD)

Camera

Day Night Yes
Video Resolution 4MP
Video Bitrate CBR Constant Bitrate, VBR Variable Bitrate
Video Compression H.264, H.264+, H.265, H.265+, MJPEG
Lens Type Fix
Focus Fix
Effective Pixels Horizontal 2688
Effective Pixels Verticals 1520
Angle of View max. : Horizontal (°) 89
Vertical Angle of View (°) 46
Min.Lux color 0.0014
Min.Lux B/W 0.0005
Focal aperture (Tele) 1
Image Sensor 1/1.8" Progressive scan CMOS
Minimum Shutter time 1/100'000s
Maximum Shutter time 1s
Lens (mm) 4mm
Day Night Type IR Cut Filter / ICR

Built In Functions

Back Light Compensation area Yes
Defog Yes
Privacy Mask 8 Polygonal Zones, YES
WDR Wide Dynamic Range 120dB
Analyzes Abandoned Object / removed, Behavior Analytics, Classified objects, Crowd, Humans / vehicles, Line Crossing, Motion Detection Support, Penetration area, Perimeter Protection, Region Entrance Detection, Region Exiting Detection, Scene change detection, Simple mouvement, Vehicles tracking, Video Detection /Human+Vehicles, behavioral analyzes
HLC Bright light compensation Yes

Environmental

Heater Yes
Working Temperature (°C) From -40 to 65
Max. Working Humidity [%] 95
Weather Proof IP Rating 67
Form Factor Bullet
IK Shock Rating 10
Material Anti-Corrosion NEMA4x
Package volume (m3) 0.098
Corrosion proof Yes

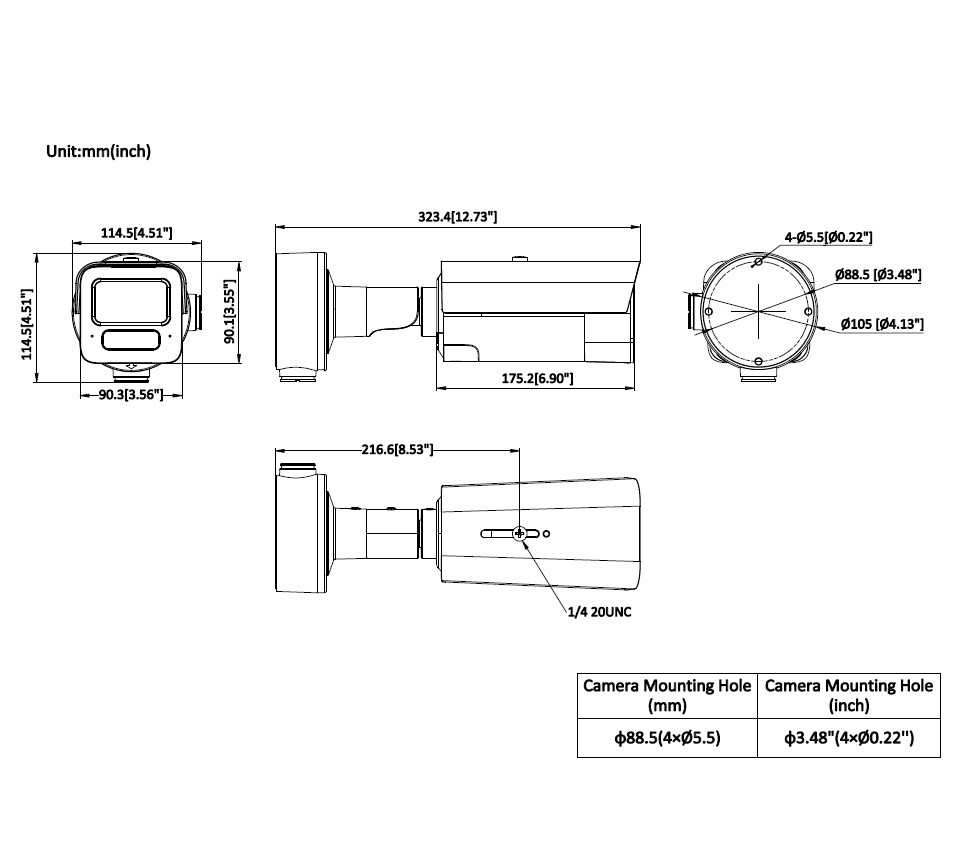

Dimensions (H x W x D) [mm] 114.5 x 323.4 x 114.5

Basic Informations

Manufacturer ref. 311332023
EAN Code 6936422148966

External Interface

Network Interface 1x RJ-45 10/100 Mbps Ethernet
Alarm Input 1
Alarm output 1
Serial interface RS485

Specifications

Power supply 12VDC, POE
Signal System IP
Warranty 5 Years
Power consumption (W) 17.1
Voltage output 12 VDC
Supervision software compatibility HIK-Connect, HikCentral, iVMS-4200
Language French, German, Italian, Multilingual, Multilingual, including french

Network

Web Browser Access Yes
Network Protocols Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPV4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP/IP, UDP, UPnP
Remote connection 20

Video Audio Input

Audio Audio line entry, Audio supported, Microphone

Hard Disk

External storage NAS
uSD card u-SD HC 1TB

Deep Learning

DeepinLearning (AI) Analyse Human & vehicle detection, Vehicle recognition

Lighting

LEDs Max. distance (m) 80
Lighting technology HybridLight (IR and White light)
Wave length 850 nm
Infrared LEDs Yes
White LEDs Yes

Audio Video Output

Audio Output 1 Audio output
Two-way audio Yes

Intercom

Audio CODEC G726-32
