iDS-2CD7547G0/P-XZHSY(2.8-12mm)

4MP LPR DOME 2.8-12mm

iDS-2CD7547G0/P-XZHSY(2.8-12mm), HIKVISION, Domes, LPR, Videosurveillance, LEDs Max. distance (m) : 30, Angle of View min : Horizontal (°) : 40, Angle of View max. : Horizontal (°) : 107, Weather Proof IP Rating : 67, Series : Parking Management, Min.Lux color : 0.001, Warranty : 5 Years, Manufacturer ref. : 311322200, iDS-2CD7547G0/P-XZHSY(2.8-12mm), HIKVISION, Domes, LPR, Videosurveillance, LEDs Max. distance (m) : 30, Angle of View min : Horizontal (°) : 40, Angle of View max. : Horizontal (°) : 107, Weather Proof IP Rating : 67, Series : Parking Management, Min.Lux color : 0.001, Warranty : 5 Years, Manufacturer ref. : 311322200, iDS-2CD7547G0/P-XZHSY(2.8-12mm), HIKVISION, Domes, LPR, Videosurveillance, LEDs Max. distance (m) : 30, Angle of View min : Horizontal (°) : 40, Angle of View max. : Horizontal (°) : 107, Weather Proof IP Rating : 67, Series : Parking Management, Min.Lux color : 0.001, Warranty : 5 Years, Manufacturer ref. : 311322200, iDS-2CD7547G0/P-XZHSY(2.8-12mm), HIKVISION, Domes, LPR, Videosurveillance, LEDs Max. distance (m) : 30, Angle of View min : Horizontal (°) : 40, Angle of View max. : Horizontal (°) : 107, Weather Proof IP Rating : 67, Series : Parking Management, Min.Lux color : 0.001, Warranty : 5 Years, Manufacturer ref. : 311322200,

  • LEDs Max. distance (m) : 30
  • Angle of View min : Horizontal (°) : 40
  • Angle of View max. : Horizontal (°) : 107
  • Weather Proof IP Rating : 67
  • Series : Parking Management
  • Min.Lux color : 0.001
  • Warranty : 5 Years
  • Manufacturer ref. : 311322200

Features

iDS-2CD7547G0/P-XZHSY(2.8-12mm)

Network

Remote connection 20
Web Browser Access Without plugin
Multi-streaming 5
Network Security Digest authentication, HTTPS encryption, IP address filtering, Password protection
DDNS HIK-Connect
Network Protocols Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, TCP/IP, UDP, UPnP

Audio Video Output

Audio Output No
CVBS output None
Two-way audio No

External Interface

Alarm Input 2
Alarm output 2
Reset Button Yes

Specifications

Power consumption (W) 18
Power supply 12VDC, POE
Signal System IP
Warranty 5 Years
Hardware platform IPC H8

Environmental

Working Temperature (°C) From -40 to 60
Max. Working Humidity [%] 95
Weather Proof IP Rating 67
Form Factor Bullet
IK Shock Rating 10
Material Aluminium
Mounting Ceiling, Surface, Wall
Colour White
Connectors Intern
Heater Yes

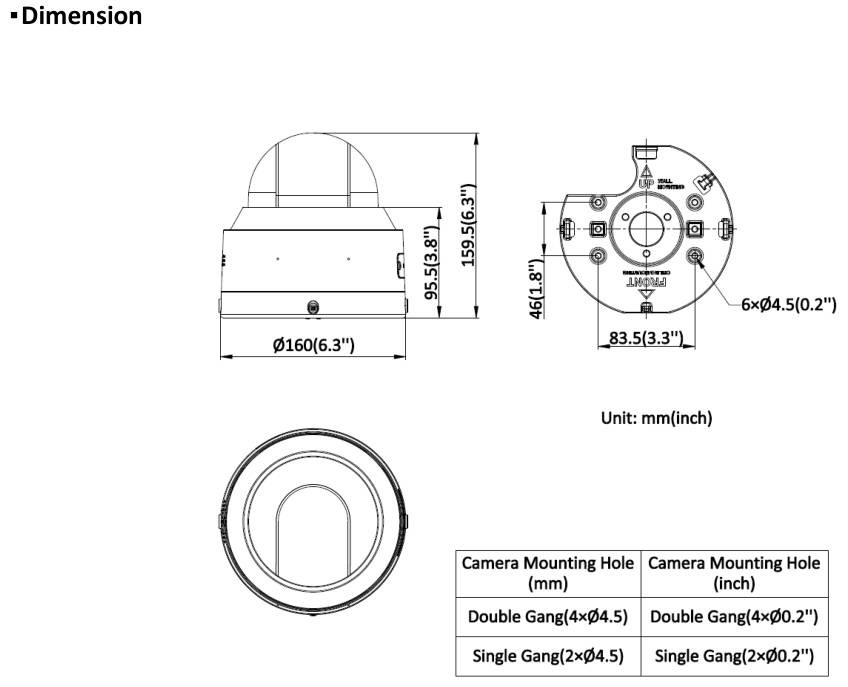

Dimensions (∅ x H) (mm) 162 x 141.8

Camera

Image Sensor 1/1.8" Progressive scan CMOS
Effective Pixels Horizontal 2680
Effective Pixels Verticals 1520
Minimum Shutter time 1/100'000s
Maximum Shutter time 1s
Lens (mm) 2.8-12mm
Day Night Yes
Day Night Type IR Cut Filter / ICR
Video Frame Rate 1920x1080@25fps
Video Resolution 4MP
Video Bitrate CBR Constant Bitrate, VBR Variable Bitrate
Video Compression H.264, H.264+, H.265, H.265+
Lens Type Motorised zoom, P-Iris, Variable focus
Camera angle (°) From 40 to 107
DSP DarkFighter Hardware
Min.Lux color 0.001
Min.Lux B/W 0.0003
Focal aperture 1.2
Focus Auto-Focus, Manual
Focal aperture (Tele) 2.5

Camera Menu

D/N Mode Auto, BW, Color, Schedule

Built In Functions

Privacy Mask YES
Back Light Compensation area Yes
Anti-Flicker Yes
Inversion of image Yes
WDR Wide Dynamic Range 140dB
Analyzes Audio, Dynamic, Line Crossing, Plate Recognition, Scene change detection, Simple mouvement
Events output E-Mail, Output alarm
OnVif Yes
E-Mail Events, system error
Calendar Holidays, Week's days
Anti-vibration Yes
Defog Yes
Embedded statistics Counting, License plates
HLC Bright light compensation Yes
Event Management Incoming Alarm input, Detector shocks

Lighting

Lighting technology EXIR LED
LEDs Max. distance (m) 30
LED adjustment Auto, Central & wide beam, Manual, On/Off

Video Audio Input

Audio No

Hard Disk

Integrated drive Without
External storage NAS
uSD card u-SD XC 256GB

Certifications

Video resolution Full HD, HD

Features

Product description Blacklist and whitelist: up to 10000 records. Captures vehicle that has no license plate. Support license plate recognition of motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)

Deep Learning

DeepinLearning (AI) Analyse Human & vehicle detection, Licence plate, Road traffic, Vehicle recognition
Comparative research Vehicle search

Basic Informations

EAN Code 6931847109851
Manufacturer ref. 311322200
Download

iDS-2CD7547G0/P-XZHSY(2.8-12mm)

Programs

By clicking on the next link, you get access to our downloading page of all the softwares and drivers of our range and categories of products

Can't find what you're looking for ? Contact us !

Support

iDS-2CD7547G0/P-XZHSY(2.8-12mm)

Support Via Teamviewer

To enable us to help you remotely, don't hesitate to use our TEAMVIEWER software, which you can download here. This secure tool allows us temporary access to a machine when the software is activated. Under no circumstances will DEMA connect without your consent.

Download Teamviewer

Contact us

If you have any questions about this product, please use this form to contact the technical service directly, we will answer you as soon as possible.

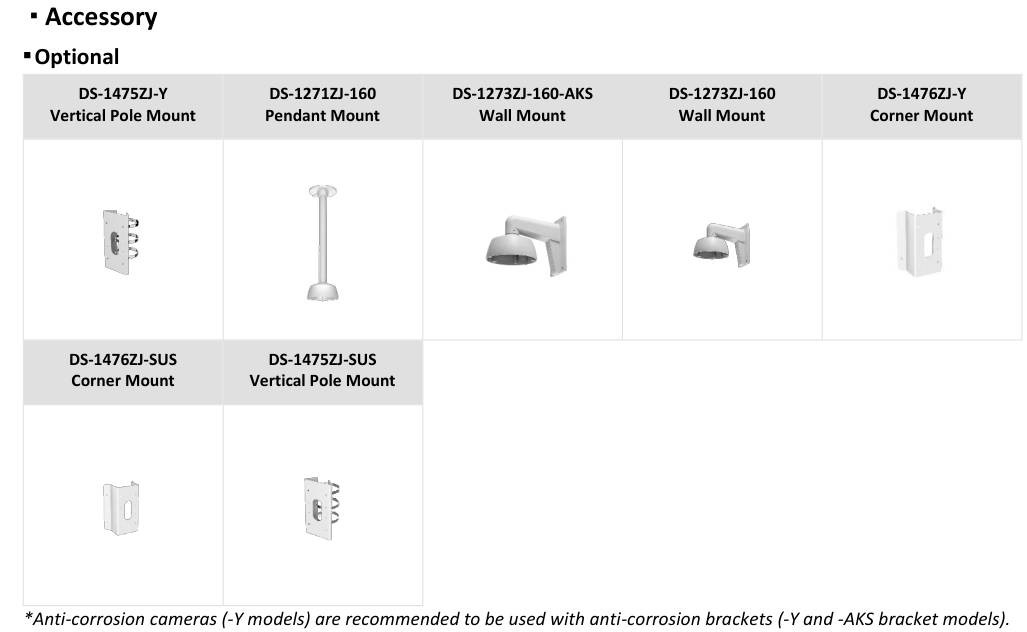

Accessories
