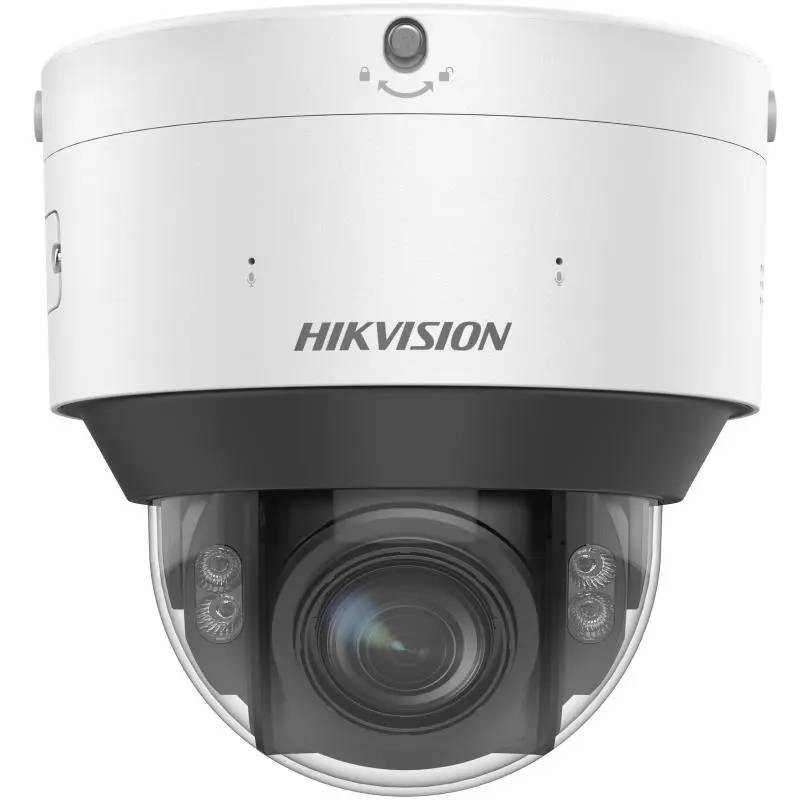

iDS-2CD7587G0-XZHSY(2.8-12mm)

Dome PTRZ 8MP DarkfighterS DeepinView

iDS-2CD7587G0-XZHSY(2.8-12mm), HIKVISION, Domes, Videosurveillance, LEDs Max. distance (m) : 30, Angle of View min : Horizontal (°) : 44, Angle of View max. : Horizontal (°) : 104, Weather Proof IP Rating : 67, Series : HIK DarkFighter, HIK DeepinView, Min.Lux color : 0.0005, Warranty : 5 Years, Manufacturer ref. : 311322202, iDS-2CD7587G0-XZHSY(2.8-12mm), HIKVISION, Domes, Videosurveillance, LEDs Max. distance (m) : 30, Angle of View min : Horizontal (°) : 44, Angle of View max. : Horizontal (°) : 104, Weather Proof IP Rating : 67, Series : HIK DarkFighter, HIK DeepinView, Min.Lux color : 0.0005, Warranty : 5 Years, Manufacturer ref. : 311322202, iDS-2CD7587G0-XZHSY(2.8-12mm), HIKVISION, Domes, Videosurveillance, LEDs Max. distance (m) : 30, Angle of View min : Horizontal (°) : 44, Angle of View max. : Horizontal (°) : 104, Weather Proof IP Rating : 67, Series : HIK DarkFighter, HIK DeepinView, Min.Lux color : 0.0005, Warranty : 5 Years, Manufacturer ref. : 311322202, iDS-2CD7587G0-XZHSY(2.8-12mm), HIKVISION, Domes, Videosurveillance, LEDs Max. distance (m) : 30, Angle of View min : Horizontal (°) : 44, Angle of View max. : Horizontal (°) : 104, Weather Proof IP Rating : 67, Series : HIK DarkFighter, HIK DeepinView, Min.Lux color : 0.0005, Warranty : 5 Years, Manufacturer ref. : 311322202,

  • LEDs Max. distance (m) : 30
  • Angle of View min : Horizontal (°) : 44
  • Angle of View max. : Horizontal (°) : 104
  • Weather Proof IP Rating : 67
  • Series : HIK DarkFighter, HIK DeepinView
  • Min.Lux color : 0.0005
  • Warranty : 5 Years
  • Manufacturer ref. : 311322202

Features

iDS-2CD7587G0-XZHSY(2.8-12mm)

Network

Remote connection 20
Web Browser Access Without plugin
Multi-streaming 5
DDNS HIK-Connect

Audio Video Output

Audio Output Internal speaker and speaker output
CVBS output None
Two-way audio Yes

External Interface

Alarm Input 1
Alarm output 1
Reset Button Yes

Specifications

Power consumption (W) 26
Power supply 10.5VDC - 13.8VDC, High PoE
Voltage output 12 VDC
Warranty 5 Years
Hardware platform IPC H8

Environmental

Working Temperature (°C) From -40 to 60
Max. Working Humidity [%] 95
Weather Proof IP Rating 67
Form Factor Dome
IK Shock Rating 10
Material Anti-Corrosion NEMA4x
Mounting Ceiling, Wall
Colour White
Connectors Intern
Heater Yes

Camera

Image Sensor 1/1.8" Progressive scan CMOS
Effective Pixels Horizontal 3840
Effective Pixels Verticals 2160
Minimum Shutter time 1/100'000s
Maximum Shutter time 1s
Lens (mm) 2.8-12mm
Day Night Yes
Day Night Type IR Cut Filter / ICR
Video Frame Rate 8MP@25fps
Video Resolution 8MP (4K)
Video Bitrate CBR Constant Bitrate, VBR Variable Bitrate
Video Compression H.264, H.264+, H.265, H.265+, MJPEG
Lens Type Motorised zoom, P-Iris
Camera angle (°) From 44 to 104
DSP ColorVu
Min.Lux color 0.0005
Min.Lux B/W 0.0001
Focal aperture 1
Focus Auto-Focus, Manual
Focal aperture (Tele) 1.2

Camera Menu

D/N Mode Auto, BW, Color

Built In Functions

Privacy Mask YES
Back Light Compensation area Yes
Anti-Flicker Yes
Inversion of image Yes
WDR Wide Dynamic Range 120dB
Analyzes Audio, Entrance/exit count, flow direction, elevators/escalators use, stores attraction rate, Facial recognition, Humans / vehicles, Line Crossing, Motion Detection Support, Penetration area, Region Entrance Detection, Scene change detection, Vagabondage, behavioral analyzes
Events output Audio Alarm, E-Mail, Output alarm
OnVif Yes
E-Mail Events, system error
Defog Yes
HLC Bright light compensation Yes
Event Management Incoming Alarm input

Lighting

Lighting technology HybridLight (IR and White light)
LEDs Max. distance (m) 30
LED adjustment Auto, Central & wide beam, On/Off

Video Audio Input

Audio Line or microphone, Microphone

Hard Disk

Integrated drive Without
External storage NAS
uSD card u-SD XC 512GB

Certifications

Video resolution 4K

Deep Learning

DeepinLearning (AI) Analyse Behavioral analyzes, Face capture, Face recognition, Hard Hat Detection, Human & vehicle detection, Queue management
Comparative research Facial search
Face picture libraries 10 faces libraries

Basic Informations

Manufacturer ref. 311322202
Download

iDS-2CD7587G0-XZHSY(2.8-12mm)

Programs

By clicking on the next link, you get access to our downloading page of all the softwares and drivers of our range and categories of products

Can't find what you're looking for ? Contact us !

Support

iDS-2CD7587G0-XZHSY(2.8-12mm)

Support Via Teamviewer

To enable us to help you remotely, don't hesitate to use our TEAMVIEWER software, which you can download here. This secure tool allows us temporary access to a machine when the software is activated. Under no circumstances will DEMA connect without your consent.

Download Teamviewer

Contact us

If you have any questions about this product, please use this form to contact the technical service directly, we will answer you as soon as possible.

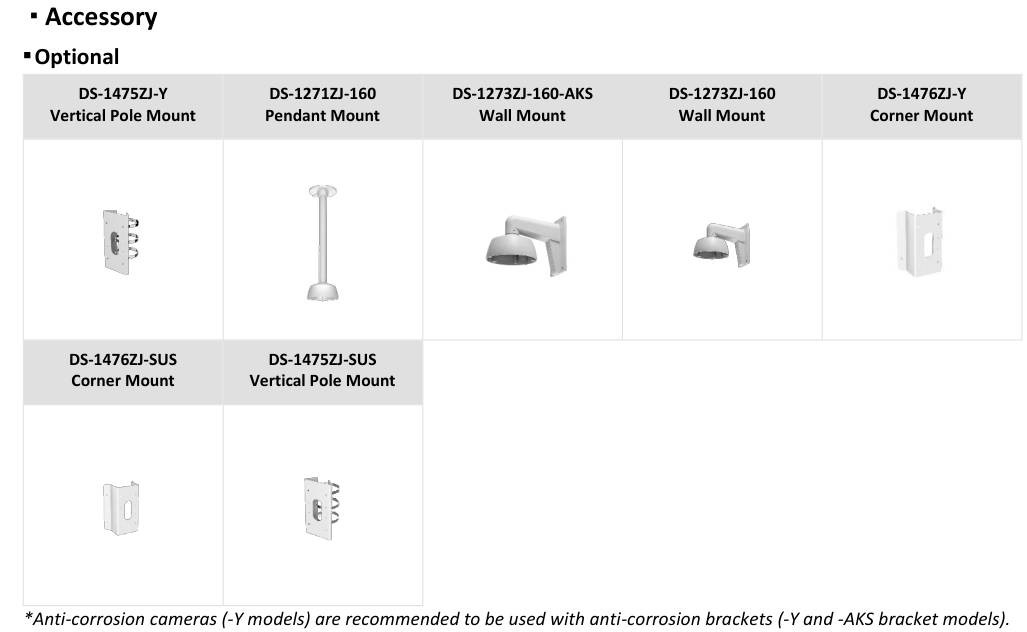

Accessories
