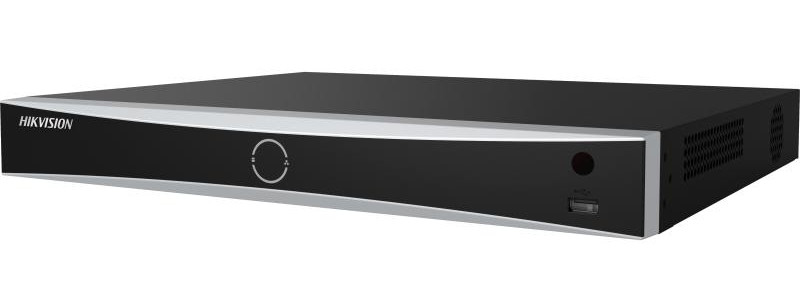

iDS-7616NXI-M2/X(STD)
NVR 16xIP 8K 8xFace 12xPerimeter
- Total video channels : 16
- DeepinMind (AI) canals : 16
- DeepinLearning (AI) Analyse : Face recognition, Face capture, Licence plate
- Optional discs : 2x SATA
- Series : HIK DeepinMind, HIK AcuSense
- Warranty : 5 Years
- Manufacturer ref. : 303617211
- Features
-
iDS-7616NXI-M2/X(STD)
- Video Audio input
- Network
- Decoding
- Audio Video output
- Hard disk
- External interface
- Specifications
- Environmental
- poe
- Built in functions
- Certifications
- Features
- Camera
- Deep Learning
- Basic informations
- Others
Video Audio Input
Number of IP channels 16 Two Way Audio Input 1-ch, RCA ( 2.0Vp-p , 1kohm ) IP Video Input Maximum Resolution 32 MP Video Input Technology IP Total video channels 16 Network
Incoming Bandwidth 256 Outgoing Bandwidth 256 Remote connection 128 Web Browser Access Yes Multi-streaming 2 Network Security HTTPS encryption, IP address filtering, Password protection DDNS HIK-Connect Total LAN ports 1 Number of PoE ports 0 Decoding
Recording resolution (encoding) 1080p, 24MP, 32MP, 3MP, 4 CIF, 4MP, 5MP, 6MP, 720p, 8MP (4K), CIF, vga Decoding capability 16 MPixels, 24 MPixels, 32 MPixels, 4 MPixels, 8 MPixels Audio Video Output
HDMI Output 1 VGA Output 1 Audio Output 1-ch, RCA (2.0Vp-p , 1Kohm ) Monitor resolution 1080p, 4K, 8K CVBS output 1-ch BNC (1,0 Vp-p, 75ohm) LCD monitor No Hard Disk
Optional discs 2x SATA eSATA 1 HD Capacity 16TB Integrated drive Without External storage NAS redundant recording Yes External Interface
Network Interface 2x RJ-45 10/100/1000 Mbps Ethernet USB Interface 1 x USB Front Pannel, 1 x USB Rear Pannel Alarm Input 4 Alarm output 1 Specifications
Power consumption (W) 50 Power supply 12VDC Signal System HDMI, VGA Warranty 5 Years Environmental

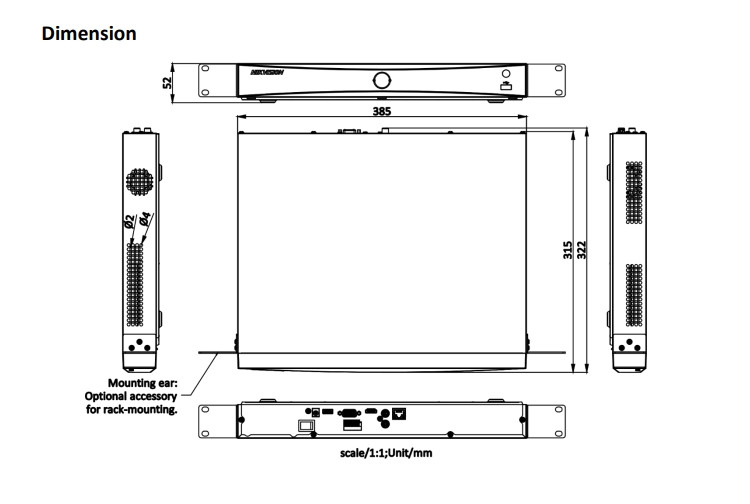

Working Temperature (°C) From -10 to 55 Working Humidity [%] From 10 to 90 Weight 3.405 Chassis 1U Redundant Power Supply No 19" Rack mounting Yes Included in the package 2m Ethernet cable, Mouse, Quick Guide, Remote control Package volume (m3) 0.102 Dimensions (H x W x D) [mm] 52 x 385 x 315 Poe
POE Interface None Built In Functions
Analyzes Color identification, Facial, Facial recognition, Perimeter Protection, Plate Recognition Video analysis in reading Line crossing, Zone penetration E-Mail Events, system error Certifications
Video resolution 4K, Full HD, HD Features
Product description Up to 16-ch IP cameras can be connectedIntelligent analytics based on deep learning algorithmUp to 12-ch perimeter protectionUp to 8-ch facial recognition for video stream, or up to 16-chfacial recognition for face pictureUp to 6-ch video structuralizationCamera
Video Compression H.264, H.264+, H.265, H.265+ Deep Learning
DeepinLearning (AI) Analyse Face capture, Face recognition, Licence plate Comparative research Facial search Face picture libraries 16 libraries, < 100k faces Face capture channels 8 humans / vehicles capture channels 8 Cameras <4MP AI Face / body NVR: facial or body Basic Informations
EAN Code 6931847186937 Manufacturer ref. 303617211 Others
DeepinMind (AI) canals 16 - Download
-
