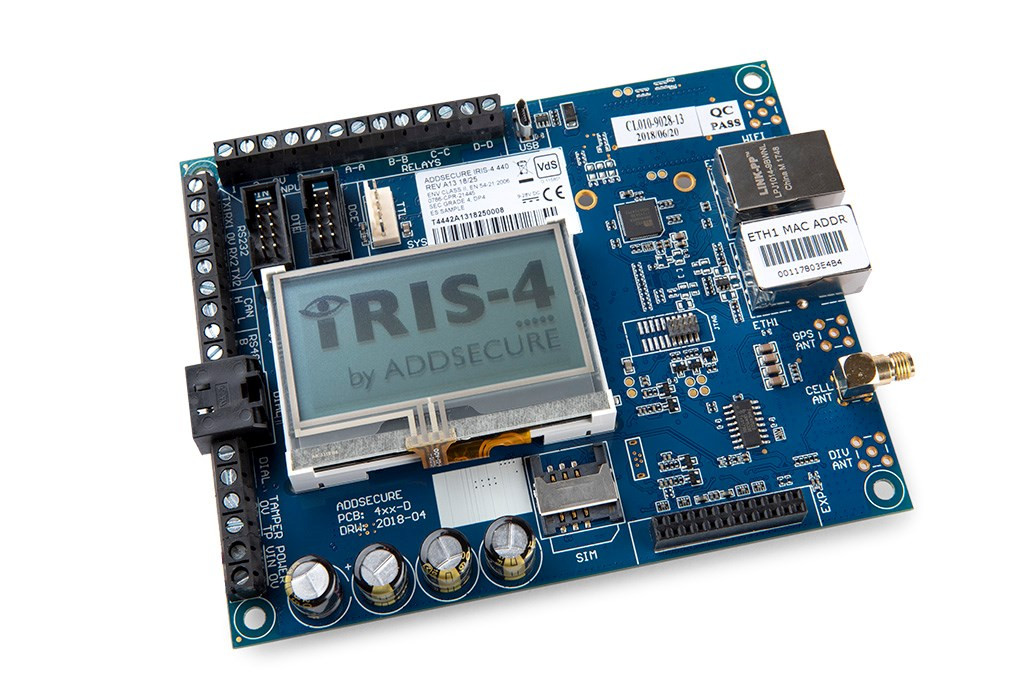

IRIS-4 440G

Iris-4 440 transm. Board IP/4G

IRIS-4 440G, ADDSECURE, Alarm transmitters, Transmission, Alarm Input : 4 (expandable to 16), Transmission protocol : Contact ID, Robofon, Scancom Fast Format, SIA I, SIA II, SIA III, Relay outputs : 4, Mobile network : Penta band LTE (4G) 800/900/1800 MHz 2100/2600 MHz Dual band UMTS (3G) 900/2100 MHz Dual band GSM, IP Ethernet : RJ45 - Min. Cat 5 - 10/100 Base T, Warranty : 2 Years, IRIS-4 440G, ADDSECURE, Alarm transmitters, Transmission, Alarm Input : 4 (expandable to 16), Transmission protocol : Contact ID, Robofon, Scancom Fast Format, SIA I, SIA II, SIA III, Relay outputs : 4, Mobile network : Penta band LTE (4G) 800/900/1800 MHz 2100/2600 MHz Dual band UMTS (3G) 900/2100 MHz Dual band GSM, IP Ethernet : RJ45 - Min. Cat 5 - 10/100 Base T, Warranty : 2 Years,

  • Alarm Input : 4 (expandable to 16)
  • Transmission protocol : Contact ID, Robofon, Scancom Fast Format, SIA I, SIA II, SIA III
  • Relay outputs : 4
  • Mobile network : Penta band LTE (4G) 800/900/1800 MHz 2100/2600 MHz Dual band UMTS (3G) 900/2100 MHz Dual band GSM
  • IP Ethernet : RJ45 - Min. Cat 5 - 10/100 Base T
  • Warranty : 2 Years

Features

IRIS-4 440G

External Interface

Serial interface CAN Bus, RS232, RS485, TTL
USB Interface Micro USB
Alarm Input 4 (expandable to 16)

Environmental

Working Temperature (°C) From -10 to 55
Max. Working Humidity [%] 95
Enclosure none
Tamper External (input on board)
Dimensions (H x W x D) [mm] 110 x 150 x 24

Certifications

EN Certification EN50131, EN50136, Security Grade 4, ATS-SP6, ATS-SP5, ATS-DP4, EN54-21 CPR (VdS Certified), EN54-21 CPR fire approved
VdS certified Yes

Transmission

Transmission protocol Contact ID, Robofon, SIA I, SIA II, SIA III, Scancom Fast Format
SMS Messages Yes
Dial Capture Yes

Specifications

Voltage supply [VDC] From 9 to 28
Consumption [mA] From 153 to 1000
Current min [mA] 153
Language Multilingual
Touchscreen Yes
Programming Touchscreen, USB Interface
Expansion boards (optional) IRIS EXT 1 (12 inputs) or IRIS EXT 2 (12 inputs and PSTN)
Warranty 2 Years

Intercom

SIP & VoIP Services Yes

Programmable Wired Outputs

Relay outputs 4

Network

Antenna socket SMA (Antenna included)
Mobile network Penta band LTE (4G) 800/900/1800 MHz 2100/2600 MHz Dual band UMTS (3G) 900/2100 MHz Dual band GSM
IP Ethernet RJ45 - Min. Cat 5 - 10/100 Base T

Basic Informations

Manufacturer ref. 100 UNITS 5% REBATE
