TNO-A26081

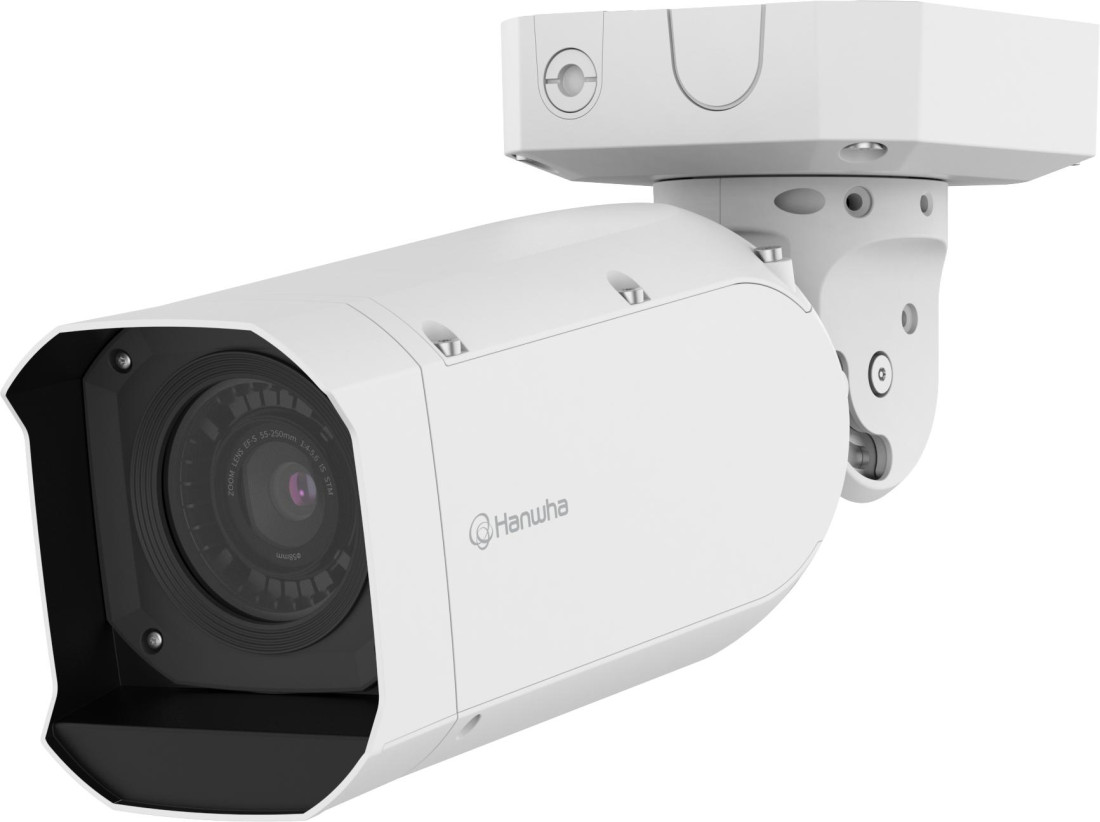

Bullet 26MP 55-250mm IA Nema4x

TNO-A26081, HANWHA VISION, Bulletcameras, Videosurveillance, Angle of View min : Horizontal (°) : 5.4, Angle of View max. : Horizontal (°) : 24, Weather Proof IP Rating : 67, Series : Anti-corrosion, Min.Lux color : 0.2, Warranty : 3 Years, NDAA - National Defense Authorization Act : No, Manufacturer ref. : TNO-A26081, TNO-A26081, HANWHA VISION, Bulletcameras, Videosurveillance, Angle of View min : Horizontal (°) : 5.4, Angle of View max. : Horizontal (°) : 24, Weather Proof IP Rating : 67, Series : Anti-corrosion, Min.Lux color : 0.2, Warranty : 3 Years, NDAA - National Defense Authorization Act : No, Manufacturer ref. : TNO-A26081, TNO-A26081, HANWHA VISION, Bulletcameras, Videosurveillance, Angle of View min : Horizontal (°) : 5.4, Angle of View max. : Horizontal (°) : 24, Weather Proof IP Rating : 67, Series : Anti-corrosion, Min.Lux color : 0.2, Warranty : 3 Years, NDAA - National Defense Authorization Act : No, Manufacturer ref. : TNO-A26081,

  • Angle of View min : Horizontal (°) : 5.4
  • Angle of View max. : Horizontal (°) : 24
  • Weather Proof IP Rating : 67
  • Series : Anti-corrosion
  • Min.Lux color : 0.2
  • Warranty : 3 Years
  • NDAA - National Defense Authorization Act : No
  • Manufacturer ref. : TNO-A26081

Features

TNO-A26081

Camera

Day Night Yes
Video Frame Rate 20fps @ 26MP
Video Resolution 26MP
Video Bitrate CBR Constant Bitrate, VBR Variable Bitrate
Video Compression H.264, H.265, MJPEG
Lens Type Motorised zoom, Variable focus
Focus Manual, Semi-auto
Effective Pixels Horizontal 6240
Effective Pixels Verticals 4160
Camera angle (°) From 5.4 to 24
Min.Lux color 0.2
Min.Lux B/W 0.02
Focal aperture 4
Focal aperture (Tele) 5.6
Image Sensor 1/1.8" Progressive scan CMOS
Lens (mm) 55-250mm
Day Night Type IR Cut Filter / ICR
DSP WiseNR ll
Depht of field minimum {m] 0.85

Built In Functions

Back Light Compensation area Yes
Anti-Flicker Yes
Inversion of image Yes
Anti-vibration Yes
Defog No
OnVif Yes
Privacy Mask YES
Analyzes Facial, Humans / vehicles, Line Crossing, Region Entrance Detection, Region Exiting Detection, Simple mouvement, behavioral analyzes
Events output E-Mail, Output alarm
E-Mail Events, system error
HLC Bright light compensation Yes

Lighting

Lighting technology No light

Environmental

Mounting Ceiling, Wall
Colour Ivory
Working Temperature (°C) From -40 to 55
Max. Working Humidity [%] 100
Weather Proof IP Rating 67
Form Factor Bullet
IK Shock Rating 10
Material Anti-Corrosion NEMA4x
Connectors 20cm external cable

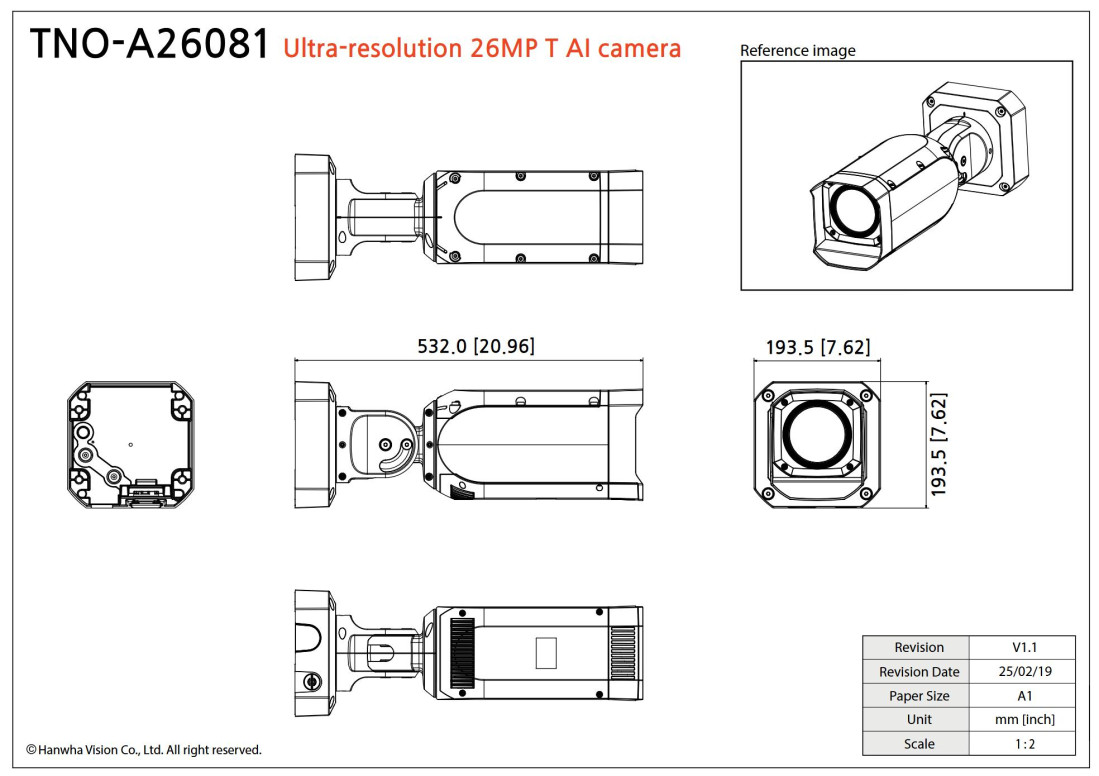

Dimensions (H x W x D) [mm] 194 x 194 x 532

External Interface

Alarm Input 2
Alarm output 2

Basic Informations

Manufacturer ref. TNO-A26081

Specifications

Power supply 12VDC, High PoE
Signal System IP
Warranty 3 Years
Power consumption (W) 44

Camera Menu

D/N Mode Auto, BW, Color

Network

Web Browser Access Firefox, Google Chrome, Internet Explorer, Safari
Multi-streaming 10 profiles
Remote connection 20

Video Audio Input

Audio Audio line entry

Hard Disk

Integrated drive 16 GB
uSD card 2x u-SD HC 1TB

Certifications

Video resolution 4K, Full HD, HD

Deep Learning

DeepinLearning (AI) Analyse Behavioral analyzes, Face capture, Human & vehicle detection, Licence plate, People counting, Queue management, Vehicle recognition

Audio Video Output

Audio Output 1 Audio output

Wifi

WiFi none
Download

TNO-A26081

Programs

By clicking on the next link, you get access to our downloading page of all the softwares and drivers of our range and categories of products

Can't find what you're looking for ? Contact us !

Support

TNO-A26081

Support Via Teamviewer

To enable us to help you remotely, don't hesitate to use our TEAMVIEWER software, which you can download here. This secure tool allows us temporary access to a machine when the software is activated. Under no circumstances will DEMA connect without your consent.

Download Teamviewer

Contact us

If you have any questions about this product, please use this form to contact the technical service directly, we will answer you as soon as possible.
